74573 (DH 200) - Toro Lawn Tractor (SN: 290000481 - 290999999) (2009) CARBURETOR ASSEMBLY BRIGGS AND STRATTON MODEL 31A607-0117-E1 Parts Diagram

Lawn Tractor

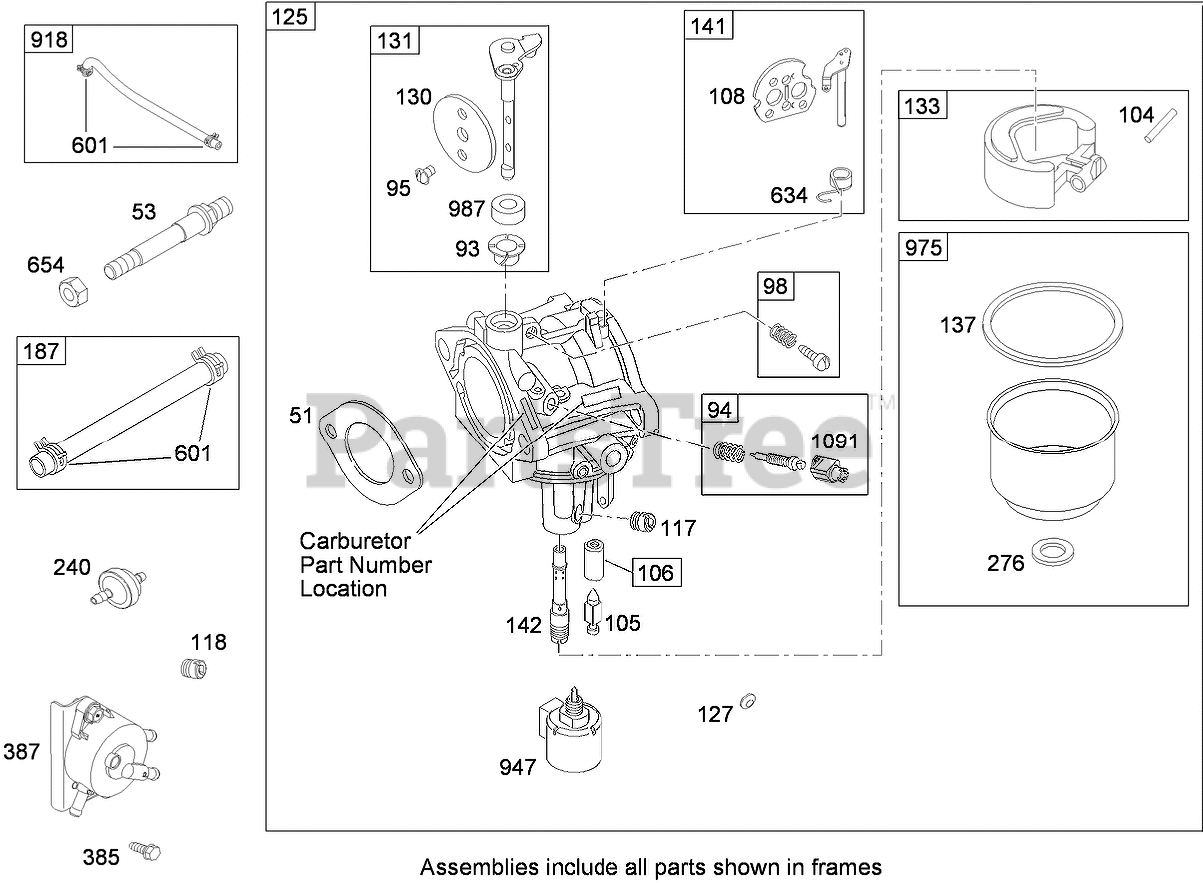

CARBURETOR ASSEMBLY BRIGGS AND STRATTON MODEL 31A607-0117-E1 Parts Diagram

  • Title
51

Briggs & Stratton 692137

Gasket-Intake

Note: Included in Valve Gasket Set (Ref. No. 1095)

$3.49

$

In Stock, Qty 20+

0

51

Briggs & Stratton 692137

Gasket-Intake

Note: Included in Carburetor Overhaul Kit (Ref. No. 121, 121A)

$3.49

$

In Stock, Qty 20+

0

51

Briggs & Stratton 692137

Gasket-Intake

Note: Included in Engine Gasket Set (Ref. No. 358)

$3.49

$

In Stock, Qty 20+

0

51

Briggs & Stratton 692137

Gasket-Intake

Note: Included in Carburetor Gasket Set (Ref. No. 977)

$3.49

$

In Stock, Qty 20+

0

53

Briggs & Stratton 690227

Stud (Carburetor)

Note: Obtain parts from www.briggsandstratton.com

$7.99

$

In Stock, Qty 6

0

93

Briggs & Stratton 690602

Bushing-Shaft, Throttle

Note: Obtain parts from www.briggsandstratton.com

$9.49

$

Usually ships in 2-12 days

0

93

Briggs & Stratton 690602

Bushing-Shaft, Throttle

Note: Included in Carburetor Overhaul Kit (Ref. No. 121, 121A)

$9.49

$

Usually ships in 2-12 days

0

94

Briggs & Stratton 794176

Idle Mixture Kit

Note: Obtain parts from www.briggsandstratton.com

$21.99

$

Usually ships in 2-12 days

0

95

Briggs & Stratton 691636

Screw (Throttle Valve)

Note: Included in Carburetor Overhaul Kit (Ref. No. 121, 121A)

$3.99

$

In Stock, only 2 left!

0

95

Briggs & Stratton 691636

Screw (Throttle Valve)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, only 2 left!

0

98

Briggs & Stratton 495800

Idle Speed Kit

Note: Obtain parts from www.briggsandstratton.com

$10.99

$

In Stock, only 1 left!

0

104

Briggs & Stratton 690525

Pin-Hinge, Carburetor Float

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

In Stock, only 1 left!

0

104

Briggs & Stratton 690525

Pin-Hinge, Carburetor Float

Note: Included in Carburetor Overhaul Kit (Ref. No. 121, 121A)

$4.99

$

In Stock, only 1 left!

0

105

Toro 231855s

Valve-Float, Needle

Note: Included in Carburetor Overhaul Kit (Ref. No. 121, 121A)

$

$

Currently unavailable

105

Toro 231855s

Valve-Float, Needle

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

106

Briggs & Stratton 691780

Seat?Inlet

Note: Obtain parts from www.briggsandstratton.com

$10.99

$

In Stock, only 2 left!

0

106

Briggs & Stratton 691780

Seat?Inlet

Note: Included in Carburetor Overhaul Kit (Ref. No. 121, 121A)

$10.99

$

In Stock, only 2 left!

0

108

Briggs & Stratton 692344

Valve-Choke

Note: Obtain parts from www.briggsandstratton.com

$8.49

$

Usually ships in 2-12 days

0

117

Briggs & Stratton 694352

Jet-Main (Std)

Note: Obtain parts from www.briggsandstratton.com

$17.99

$

Usually ships in 2-12 days

0

117

Briggs & Stratton 694352

Jet-Main (Std)

Note: Included in Carburetor Overhaul Kit (Ref. No. 121, 121A)

$17.99

$

Usually ships in 2-12 days

0

118

Briggs & Stratton 697228

Jet-Main (High Altitude)

Note: Obtain parts from www.briggsandstratton.com

$17.99

$

Usually ships in 2-12 days

0

125

Briggs & Stratton 793224

Carburetor
(Superseded to 594593)

Note: Obtain parts from www.briggsandstratton.com

$143.99

$

In Stock, Qty 20+

0

127

Briggs & Stratton 695005

Plug-Welch

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

In Stock, only 1 left!

0

130

Briggs & Stratton 691750

Valve-Throttle

Note: Obtain parts from www.briggsandstratton.com

$9.49

$

In Stock, only 1 left!

0

131

Briggs & Stratton 494379

Throttle Shaft Kit
(Superseded to 790901)

Note: Obtain parts from www.briggsandstratton.com

$38.99

$

In Stock, only 1 left!

0

133

Briggs & Stratton 494381

Float-Carburetor

Note: Obtain parts from www.briggsandstratton.com

$13.99

$

In Stock, only 4 left!

0

137

Toro 281165s

Gasket-Bowl, Float

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

137

Toro 281165s

Gasket-Bowl, Float

Note: Included in Carburetor Overhaul Kit (Ref. No. 121, 121A)

$

$

Currently unavailable

137

Toro 281165s

Gasket-Bowl, Float

Note: Included in Carburetor Gasket Set (Ref. No. 977)

$

$

Currently unavailable

141

Briggs & Stratton 495931

Choke Shaft Kit
(Superseded to 790902)

Note: Obtain parts from www.briggsandstratton.com

$33.99

$

Usually ships in 2-12 days

0

142

Briggs & Stratton 697140

Nozzle-Carburetor

Note: Included in Carburetor Overhaul Kit (Ref. No. 121, 121A)

$

$

Not available

142

Briggs & Stratton 697140

Nozzle-Carburetor

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

187

Briggs & Stratton 791805

Line-Fuel (Cut to Required Length)

Note: Obtain parts from www.briggsandstratton.com

$24.99

$

In Stock, only 1 left!

0

240

Briggs & Stratton 691035

Filter-Fuel
(Superseded to 84001895)

Note: Obtain parts from www.briggsandstratton.com

$7.99

$

In Stock, Qty 20+

0

276

Briggs & Stratton 692255

Washer-Sealing

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

In Stock, Qty 20+

0

276

Briggs & Stratton 692255

Washer-Sealing

Note: Included in Carburetor Overhaul Kit (Ref. No. 121, 121A)

$5.49

$

In Stock, Qty 20+

0

276

Briggs & Stratton 692255

Washer-Sealing

Note: Included in Carburetor Gasket Set (Ref. No. 977)

$5.49

$

In Stock, Qty 20+

0

385

Briggs & Stratton 694476

Screw (Fuel Pump)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, only 1 left!

0

387

Briggs & Stratton 697090

Pump-Fuel (with Bracket)

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

601

Briggs & Stratton 791850

Clamp-Hose

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 20+

0

634

Briggs & Stratton 690802

Spring and Seal Asm

Note: Obtain parts from www.briggsandstratton.com

$9.49

$

Usually ships in 2-12 days

0

634

Briggs & Stratton 690802

Spring and Seal Asm

Note: Included in Carburetor Overhaul Kit (Ref. No. 121, 121A)

$9.49

$

Usually ships in 2-12 days

0

654

Briggs & Stratton 690958

Nut (Carburetor)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, only 3 left!

0

918

Briggs & Stratton 791851

Line-Vacuum

Note: Obtain parts from www.briggsandstratton.com

$14.99

$

In Stock, only 1 left!

0

947

Briggs & Stratton 694393

Solenoid-Fuel

Note: Obtain parts from www.briggsandstratton.com

$81.99

$

In Stock, only 1 left!

0

975

Briggs & Stratton 495933

Bowl-Float

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

987

Briggs & Stratton 691326

Seal-Shaft, Throttle

Note: Included in Carburetor Overhaul Kit (Ref. No. 121, 121A)

$5.49

$

Usually ships in 2-12 days

0

987

Briggs & Stratton 691326

Seal-Shaft, Throttle

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

Usually ships in 2-12 days

0

1091

Briggs & Stratton 691333

Cap-Limiter

Note: Obtain parts from www.briggsandstratton.com

$9.49

$

In Stock, only 1 left!

0
