74571 (DH 200) - Toro Lawn Tractor (SN: 260000001 - 260999999) (2006) STARTER AND ELECTRICAL ASSEMBLY BRIGGS AND STRATTON 282H79-23502 Parts Diagram

Lawn Tractor

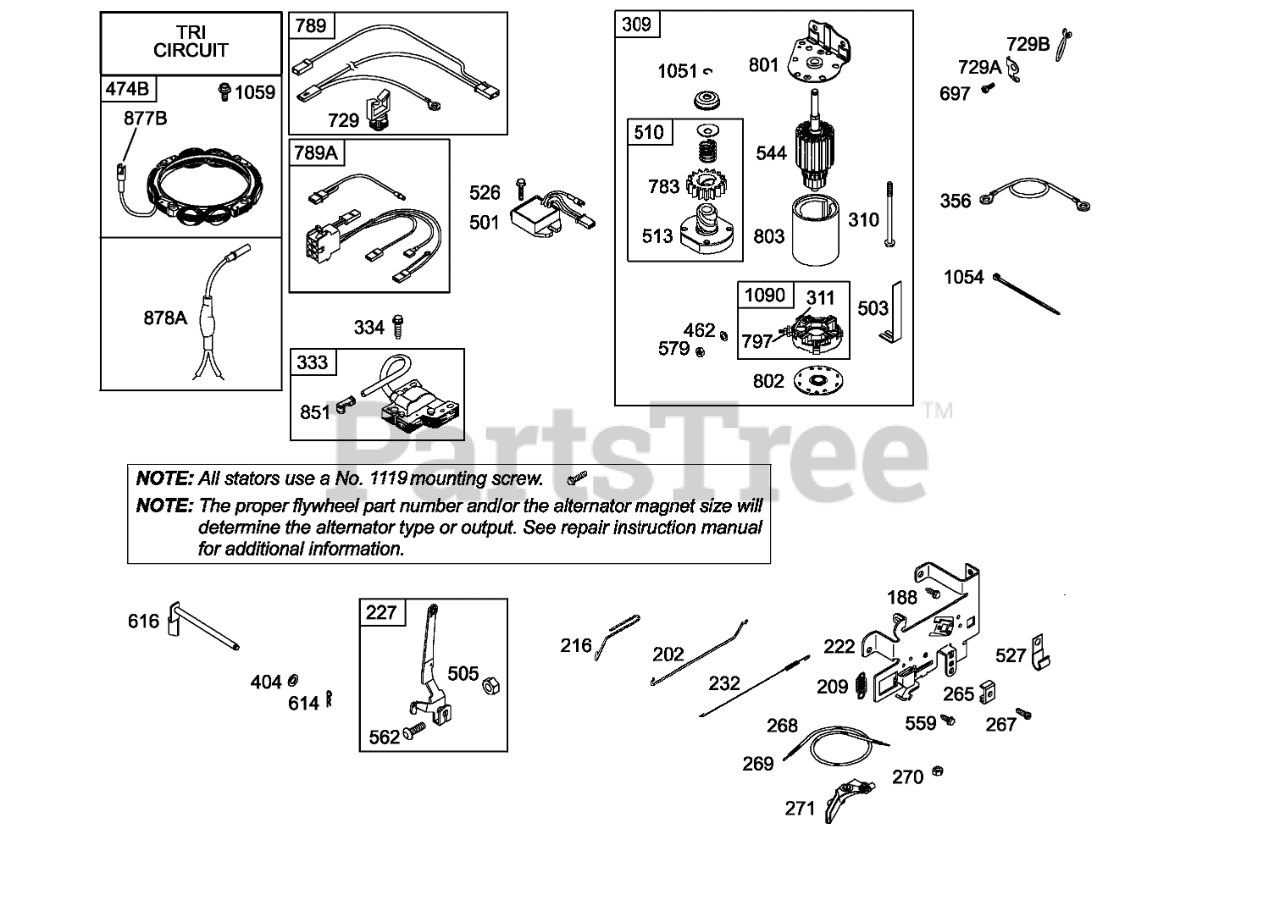

STARTER AND ELECTRICAL ASSEMBLY BRIGGS AND STRATTON 282H79-23502 Parts Diagram

  • Title

188

Briggs & Stratton 691693

Screw

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, Qty 8

0

202

Briggs & Stratton 691841

Link-Governor, Mechanical

Note: Obtain parts from www.briggsandstratton.com

$9.49

$

In Stock, Qty 13

0

209

Briggs & Stratton 691795

Spring?Governor
(Superseded to 796261)

Note: Obtain parts from www.briggsandstratton.com

$6.49

$

In Stock, only 4 left!

0

216

Briggs & Stratton 691840

Link-Choke

Note: Obtain parts from www.briggsandstratton.com

$8.99

$

In Stock, Qty 19

0

222

Briggs & Stratton 694042

Bracket-Control
(Superseded to 597209)

Note: Obtain parts from www.briggsandstratton.com

$38.99

$

In Stock, Qty 20+

0

227

Briggs & Stratton 691374

Lever-Control, Governor

Note: Obtain parts from www.briggsandstratton.com

$26.99

$

In Stock, only 2 left!

0

232

Briggs & Stratton 691842

Spring-Link, Governor

Note: Obtain parts from www.briggsandstratton.com

$11.99

$

In Stock, Qty 20+

0

265

Briggs & Stratton 691024

Clamp-Casing

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, Qty 6

0

267

Briggs & Stratton 690804

Screw

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

268

Briggs & Stratton 691025

Casing?Control Wire (Cut To Required Length)

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

269

Briggs & Stratton 691026

Wire?Control (Cut To Required Length)
(Superseded to 26634)

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

270

Briggs & Stratton 691027

Nut (Control Wire Casing)

Note: Obtain parts from www.briggsandstratton.com

$13.99

$

In Stock, only 2 left!

0

271

Briggs & Stratton 691028

Lever?Control

Note: Obtain parts from www.briggsandstratton.com

$45.99

$

Usually ships in 2-12 days

0

309

Briggs & Stratton 693551

Motor-Starter
(Superseded to 593934)

Note: Obtain parts from www.briggsandstratton.com

$131.99

$

In Stock, Qty 20+

0

310

Briggs & Stratton 690323

Bolt

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, Qty 7

0

311

Briggs & Stratton 497608

Brush Set

Note: Obtain parts from www.briggsandstratton.com

$27.99

$

In Stock, only 3 left!

0

333

Briggs & Stratton 492341

Armature-Magneto
(Superseded to 591459)

Note: Obtain parts from www.briggsandstratton.com

$53.99

$

In Stock, Qty 20+

0

334

Briggs & Stratton 691061

Screw

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 20+

0

356

Briggs & Stratton 697089

Stop-Wire

Note: Obtain parts from www.briggsandstratton.com

$11.99

$

Usually ships in 2-12 days

0

404

Briggs & Stratton 691691

Washer

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, Qty 5

0

462

Briggs & Stratton 691261

Washer

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, only 3 left!

0

474B

Briggs & Stratton 696457

Alternator
(Superseded to 592829)

Note: Obtain parts from www.briggsandstratton.com

$102.99

$

In Stock, Qty 7

0

501

Briggs & Stratton 691188

Regulator
(Superseded to 794360)

Note: Obtain parts from www.briggsandstratton.com

$64.99

$

In Stock, only 2 left!

0

503

Briggs & Stratton 691532

Strap-Starter

Note: Obtain parts from www.briggsandstratton.com

$6.49

$

Usually ships in 2-12 days

0

505

Briggs & Stratton 691251

Nut

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 9

0

510

Briggs & Stratton 693699

Drive-Starter
(Superseded to 593934)

Note: Obtain parts from www.briggsandstratton.com

$131.99

$

In Stock, Qty 20+

0

513

Briggs & Stratton 692024

Clutch-Drive

Note: Obtain parts from www.briggsandstratton.com

$21.99

$

In Stock, only 2 left!

0

526

Briggs & Stratton 697088

Screw

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

Usually ships in 2-12 days

0

527

Briggs & Stratton 698467

Clamp?Tube

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

Usually ships in 2-12 days

0

544

Briggs & Stratton 692034

Armature-Starter

Note: Obtain parts from www.briggsandstratton.com

$82.99

$

Usually ships in 2-12 days

0

559

Briggs & Stratton 697561

Screw (Remote Choke Stop)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, only 1 left!

0

562

Briggs & Stratton 691119

Screw

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, Qty 17

0

579

Briggs & Stratton 691029

Nut

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

Usually ships in 2-12 days

0

614

Briggs & Stratton 691620

Pin-Cotter

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, only 2 left!

0

616

Briggs & Stratton 692012

Crank-Governor

Note: Obtain parts from www.briggsandstratton.com

$13.99

$

In Stock, only 2 left!

0

697

Briggs & Stratton 690372

Screw
(Superseded to 791680)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, Qty 6

0

729

Briggs & Stratton 691335

Clip?Wire

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

Usually ships in 2-12 days

0

729A

Briggs & Stratton 691224

Clip-Wire

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

Usually ships in 2-12 days

0

729B

Briggs & Stratton 694123

Clip?Wire

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

Usually ships in 2-12 days

0

783

Briggs & Stratton 693713

Gear-Pinion
(Superseded to 593935)

Note: Obtain parts from www.briggsandstratton.com

$26.99

$

In Stock, only 1 left!

0

789

Briggs & Stratton 692037

Wiring-Harness

Note: Obtain parts from www.briggsandstratton.com

$35.99

$

In Stock, only 1 left!

0

789A

Briggs & Stratton 698329

Harness?Wiring

Note: Obtain parts from www.briggsandstratton.com

$36.99

$

In Stock, Qty 5

0

797

Briggs & Stratton 693167

Nut

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

Usually ships in 2-12 days

0

801

Briggs & Stratton 691283

Cap-Drive

Note: Obtain parts from www.briggsandstratton.com

$83.99

$

Usually ships in 2-12 days

0

802

Briggs & Stratton 691286

Cap-End

Note: Obtain parts from www.briggsandstratton.com

$26.99

$

Usually ships in 2-12 days

0

803

Briggs & Stratton 693757

Housing-Starter

Note: Obtain parts from www.briggsandstratton.com

$25.99

$

Usually ships in 2-12 days

0

851

Briggs & Stratton 692424

Terminal?Spark Plug

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

In Stock, Qty 13

0

877B

Briggs & Stratton 393537

Connector-Wire, Tri Circuit

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

878A

Briggs & Stratton 691955

Harness?Alternator

Note: Obtain parts from www.briggsandstratton.com

$69.99

$

Usually ships in 2-12 days

0

1051

Briggs & Stratton 691265

Ring-Retaining

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

In Stock, Qty 7

0

1054

Briggs & Stratton 280275

Tie-Cable

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

Usually ships in 2-12 days

0

1059

Briggs & Stratton 698516

Screw and Washer Kit

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

Usually ships in 2-12 days

0

1090

Briggs & Stratton 691293

Retainer-Brush

Note: Obtain parts from www.briggsandstratton.com

$29.99

$

In Stock, Qty 5

0

1119

Briggs & Stratton 691183

Screw

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

Usually ships in 2-12 days

0
