74571 (150-DH) - Toro Lawn Tractor (SN: 240000001 - 240999999) (2004) FRONT AXLE ASSEMBLY Parts Diagram

Lawn Tractor

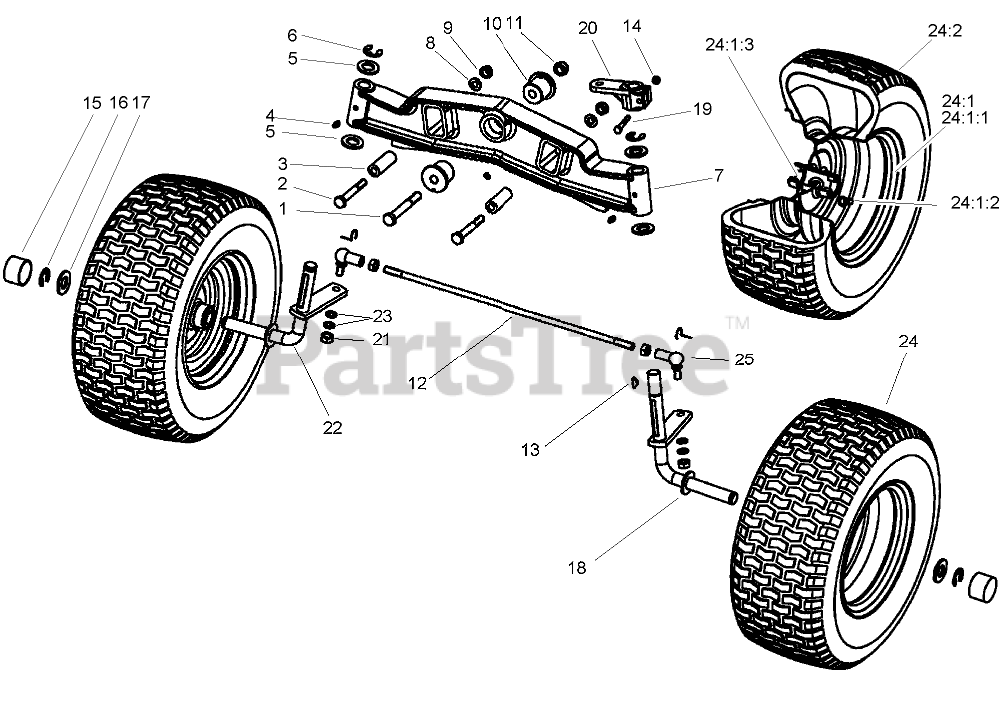

FRONT AXLE ASSEMBLY Parts Diagram

  • Title
1

Toro 33116-090

SCREW-HH

$4.99

$

Usually ships in 3-6 days

0

2

Toro 33115-080

SCREW-HH

$2.49

$

Usually ships in 3-6 days

0

3

Toro 107-8949

SPACER

$

$

Currently unavailable

4

Toro 104-2904

FITTING-GREASE

$

$

Currently unavailable

5

Toro 104-2905

WASHER-FLAT

$

$

Not available

6

Toro 104-2891

CLIP-SPRING

$

$

Currently unavailable

7

Toro 104-2852

AXLE-FRONT

$

$

Currently unavailable

8

Toro 104-2906

WASHER-FLAT

$

$

Not available

9

Toro 33025-00

NUT-LOCK, NI

$1.49

$

In Stock, only 2 left!

0

10

Toro 104-2890

BUSHING-AXLE, FRONT

$

$

Currently unavailable

11

Toro 104-2907

NUT-LOCKING, SELF

$

$

Currently unavailable

12

Toro 104-2855

ROD-TIE, FRONT AXLE

$

$

Currently unavailable

13

Toro 104-2856

KEY-WOODRUFF

$

$

Currently unavailable

14

Toro 33023-00

NUT-LOCK

$0.99

$

Usually ships in 3-6 days

0

15

Toro 104-2857

CAP-HUB

$

$

Currently unavailable

16

Toro 104-2891

CLIP-SPRING

$

$

Currently unavailable

17

Toro 104-3206

WASHER

$

$

Currently unavailable

18

Toro 107-8925

LH SPINDLE ASM
(Superseded to 108-8776)

$

$

Not available

19

Toro 33113-045

SCREW-HH

$2.99

$

Usually ships in 3-6 days

0

20

Toro 104-2862

LEVER-SPINDLE, STEERING

$

$

Currently unavailable

21

Toro 33015-00

NUT-HEX
(Superseded to 48-7960)

$1.99

$

Usually ships in 3-6 days

0

22

Toro 107-8926

RH SPINDLE ASM

$

$

Currently unavailable

23

Toro 106-5757

Washer

$

$

Currently unavailable

24

Toro 107-2223

WHEEL and TIRE ASM

$

$

Not available

24:1

Toro 107-8927

WHEEL ASM
(Superseded to 110-9088)

$

$

Not available

24:1:1

RIM

Note: Not serviced separately

$

$

Not available

24:1:2

Toro 106-8596

Valve-Tire

$

$

Not available

24:1:3

Toro 110513

BEARING-WHEEL

$21.99

$

In Stock, only 3 left!

0

24:2

$130.99

$

In Stock, only 1 left!

0

25

Toro 104-2876

JOINT-BALL, ANGLE

$

$

Not available

99

Toro 232-39

TUBE-INNER

Note: Not illustrated

$31.99

$

In Stock, only 1 left!

0
