74570 (DH 210) - Toro Lawn Tractor (SN: 260000001 - 260999999) (2006) ENGINE, MUFFLER AND FUEL TANK ASSEMBLY Parts Diagram

Lawn Tractor

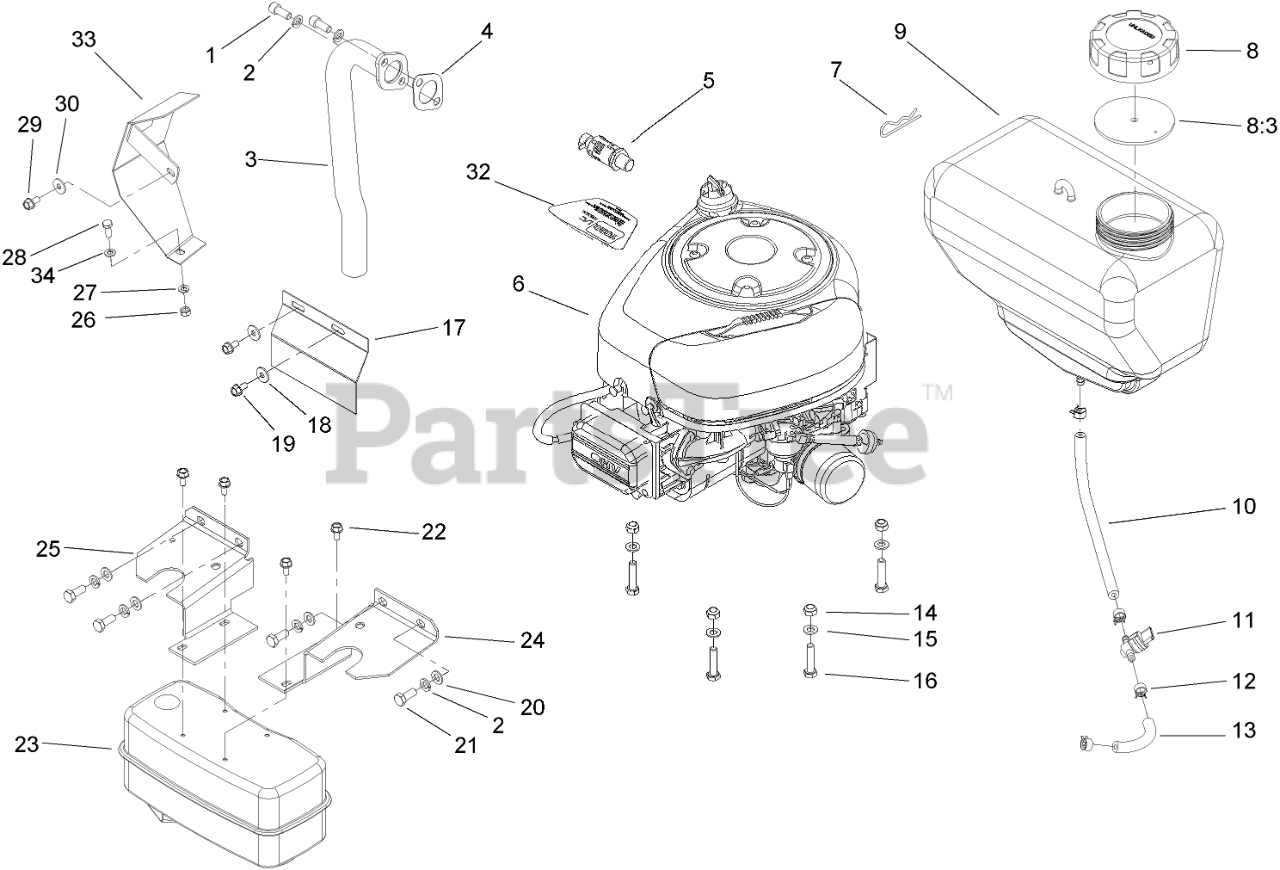

ENGINE, MUFFLER AND FUEL TANK ASSEMBLY Parts Diagram

  • Title
1

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

2

Toro 42-9850

WASHER-LOCK, SPRING
(Superseded to 325-34)

$3.99

$

Usually ships in 3-6 days

0

3

Toro 104-3221

TUBE-EXHAUST

$

$

Currently unavailable

4

Toro 88-4410

GASKET-EXHAUST

$16.99

$

In Stock, Qty 6

0

5

Toro 104-3208

VALVE-OIL DRAIN

$

$

Currently unavailable

6

ENGINE-Briggs and Stratton, 311777-0151-E1

Note: Not serviced separately

$

$

Not available

6

ENGINE-Briggs and Stratton, 311777-0151-E1

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

7

Toro 104-3144

PIN-HAIR

$

$

Currently unavailable

8

Toro 88-3980

GAS CAP ASM

$31.99

$

In Stock, Qty 6

0

8:3

Toro 88-4010

GASKET-CAP, GAS

$29.99

$

In Stock, only 1 left!

0

9

Toro 104-3057

TANK-FUEL

$

$

Currently unavailable

10

Toro 104-3211

LINE-FUEL

$

$

Currently unavailable

11

Toro 104-3224

VALVE-TANK, FUEL

$

$

Currently unavailable

12

Toro 104-3212

CLAMP-LINE, FUEL

$

$

Currently unavailable

13

Toro 104-3213

LINE-FUEL

$

$

Currently unavailable

14

Toro 33024-00

NUT-LOCK, NI

$0.99

$

Usually ships in 3-6 days

0

15

Toro 33094-00

WASHER-PLAIN

$0.99

$

In Stock, only 2 left!

0

16

Toro 33114-035

SCREW-HH

$4.99

$

In Stock, only 1 left!

0

17

Toro 104-3222

COVER-FRONT

$

$

Currently unavailable

18

Toro 104-2931

WASHER-FLAT

$

$

Currently unavailable

19

$

$

Currently unavailable

20

Toro 33094-00

WASHER-PLAIN

$0.99

$

In Stock, only 2 left!

0

21

Toro 33114-020

SCREW-HH

$0.99

$

In Stock, Qty 13

0

22

$

$

Currently unavailable

23

Toro 104-3229

MUFFLER

$

$

Currently unavailable

24

Toro 104-3214

GUARD-MUFFLER, LH

$

$

Currently unavailable

25

Toro 104-3215

GUARD-MUFFLER, RH

$

$

Currently unavailable

26

Toro 33013-00

NUT-HEX

$2.49

$

In Stock, only 3 left!

0

27

Toro 104-3186

WASHER-SPRING

$

$

Currently unavailable

28

Toro 33113-016

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

29

$

$

Currently unavailable

30

Toro 104-2931

WASHER-FLAT

$

$

Currently unavailable

32

Toro 107-4906

DECAL-ENGINE

$34.99

$

Usually ships in 3-6 days

0

33

Toro 105-1242

Cover-Manifold, Exhaust

$

$

Currently unavailable

34

Toro 33093-00

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0
