74570 (DH 210) - Toro Lawn Tractor (SN: 250000001 - 250999999) (2005) CRANKCASE ASSEMBLY BRIGGS AND STRATTON 311777-0151-E1 Parts Diagram

Lawn Tractor

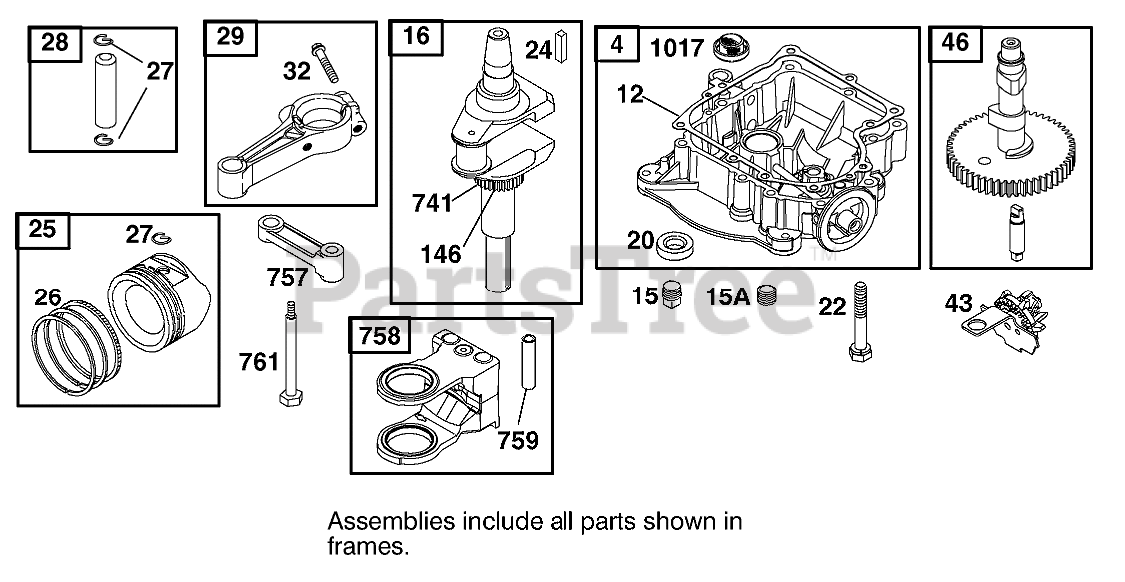

CRANKCASE ASSEMBLY BRIGGS AND STRATTON 311777-0151-E1 Parts Diagram

  • Title

4

Briggs & Stratton 693582

EngineSump

Note: Obtain parts from www.briggsandstratton.com

$288.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 271916

Gasket-Crankcase (1/64")
(Superseded to 692226)

Note: Included in Gasket Set-Ref. 358.

$6.99

$

In Stock, only 2 left!

0

12

Briggs & Stratton 271916

Gasket-Crankcase (1/64")
(Superseded to 692226)

Note: Obtain parts from www.briggsandstratton.com

$6.99

$

In Stock, only 2 left!

0

Briggs & Stratton 271997

Gasket-Crankcase (.005")
(Superseded to 692406)

Note: Obtain parts from www.briggsandstratton.com

$9.49

$

Usually ships in 2-12 days

0

Briggs & Stratton 271997

Gasket-Crankcase (.005")
(Superseded to 692406)

Note: Included in Gasket Set-Ref. 358.

$9.49

$

Usually ships in 2-12 days

0

Briggs & Stratton 271996

Gasket-Crankcase (.009")
(Superseded to 692405)

Note: Included in Gasket Set-Ref. 358.

$6.49

$

In Stock, only 1 left!

0

Briggs & Stratton 271996

Gasket-Crankcase (.009")
(Superseded to 692405)

Note: Obtain parts from www.briggsandstratton.com

$6.49

$

In Stock, only 1 left!

0

15

Briggs & Stratton 94239

Plug-Pipe
(Superseded to 690946)

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

In Stock, Qty 14

0

15A

Briggs & Stratton 91488

Plug-Oil
(Superseded to 794903)

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 690136

Crankshaft

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

20

Briggs & Stratton 291675

Seal-Oil
(Superseded to 291675S)

Note: Included in Gasket Set-Ref. 358.

$6.99

$

In Stock, Qty 20+

0

20

Briggs & Stratton 291675

Seal-Oil
(Superseded to 291675S)

Note: Obtain parts from www.briggsandstratton.com

$6.99

$

In Stock, Qty 20+

0

22

Briggs & Stratton 692125

Screw

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

In Stock, only 4 left!

0

24

Briggs & Stratton 222698

Key
(Superseded to 222698S)

Note: Obtain parts from www.briggsandstratton.com

$2.99

$

In Stock, Qty 20+

0

25

Briggs & Stratton 692271

Piston Assembly (Standard)
(Superseded to 697069)

Note: Obtain parts from www.briggsandstratton.com

$110.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 692272

Piston Assy. (.010" O.S.)

Note: Obtain parts from www.briggsandstratton.com

$63.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 692273

Piston Assy. (.O2O" O.S.)

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

Briggs & Stratton 692274

Piston Assy. (.030" O.S.)

Note: Obtain parts from www.briggsandstratton.com

$106.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 690162

Ring Set (Std)

Note: Obtain parts from www.briggsandstratton.com

$67.99

$

In Stock, only 4 left!

0

Briggs & Stratton 690164

Ring Set (.010" O.S.)

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

Briggs & Stratton 690166

Ring Set (.020" O.S.)

Note: Obtain parts from www.briggsandstratton.com

$36.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 690168

Ring Set (.030" O.S.)

Note: Obtain parts from www.briggsandstratton.com

$39.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 691299

Lock-Piston Pin

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 498319

Pin-Piston (Std.)

Note: Obtain parts from www.briggsandstratton.com

$17.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 498320

Pin-Piston (.005 O.S.)

Note: Obtain parts from www.briggsandstratton.com

$19.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 692419

Connecting Rod (Std)

Note: Obtain parts from www.briggsandstratton.com

$149.99

$

Usually ships in 2-12 days

0

Toro 499940

Connecting Rod (.020" Undersize)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

32

Briggs & Stratton 692852

Screw
(Superseded to 791118)

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

In Stock, only 4 left!

0

43

Briggs & Stratton 490815

Gear-Governor
(Superseded to 691968)

Note: Obtain parts from www.briggsandstratton.com

$37.99

$

In Stock, Qty 20+

0

46

Toro 693930

Cam Shaft

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

146

Briggs & Stratton 94196

Key-Timing
(Superseded to 691639)

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, Qty 5

0

741

Briggs & Stratton 691284

Gear-Timing

Note: Obtain parts from www.briggsandstratton.com

$10.99

$

Usually ships in 2-12 days

0

757

Briggs & Stratton 213998

Link-Counteweight
(Superseded to 691714)

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

758

Briggs & Stratton 692423

Counterweight

Note: Obtain parts from www.briggsandstratton.com

$222.99

$

Usually ships in 2-12 days

0

759

Briggs & Stratton 230787

Pin-Counterweight
(Superseded to 691239)

Note: Obtain parts from www.briggsandstratton.com

$8.99

$

In Stock, only 1 left!

0

761

Briggs & Stratton 691096

Screw (Counterweight)

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

Usually ships in 2-12 days

0

1017

Briggs & Stratton 690770

Screen-Pump, Oil

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available
