74570 (170-DH) - Toro Lawn Tractor (SN: 230000001 - 230999999) (2003) OPERATION BRAKE/BY-PASS ASSEMBLY Parts Diagram

Lawn Tractor

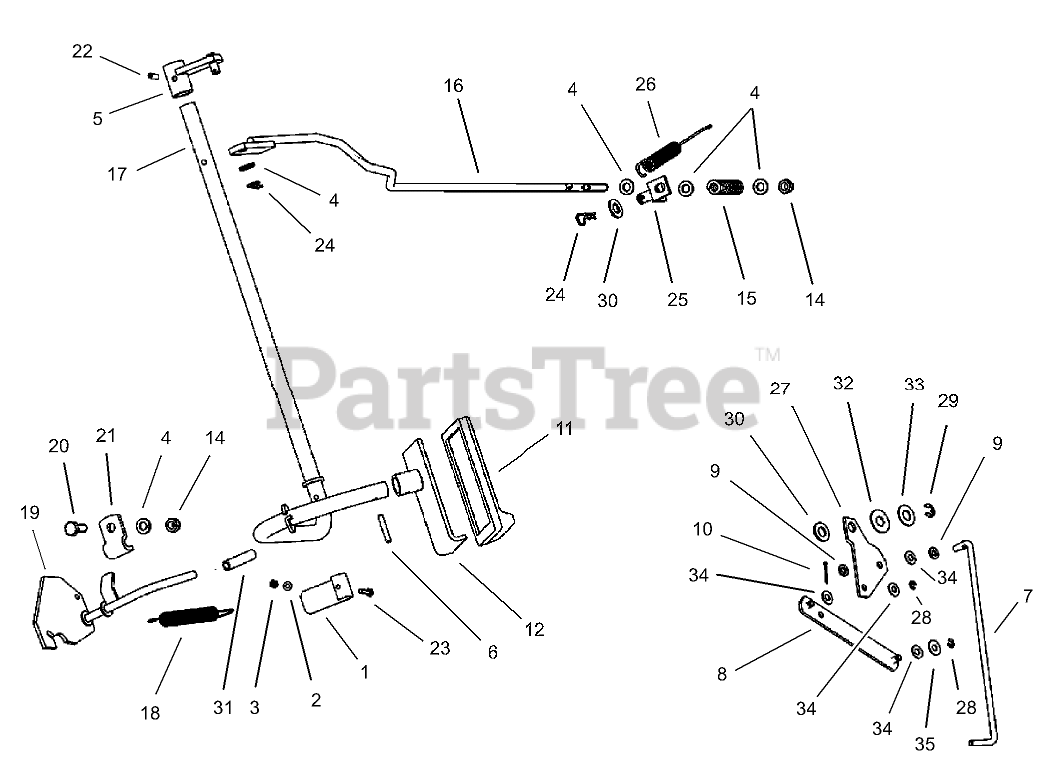

OPERATION BRAKE/BY-PASS ASSEMBLY Parts Diagram

  • Title
1

Toro 104-2992

LEVER-SPRING

$

$

Not available

2

Toro 104-2984

WASHER

$

$

Currently unavailable

3

Toro 104-2985

NUT-HEX

$

$

Currently unavailable

4

Toro 33094-00

WASHER-PLAIN

$0.99

$

In Stock, only 2 left!

0

5

Toro 104-2993

BRACKET-ROD, BRAKE

$

$

Currently unavailable

6

Toro 104-2994

PIN-SPRING

$

$

Currently unavailable

7

Toro 104-2995

ROD-LEVER, BYPASS

$

$

Currently unavailable

8

Toro 104-3324

Lever-Bypass

$

$

Currently unavailable

9

Toro 104-3193

WASHER

$

$

Currently unavailable

10

Toro 104-2997

PIN-COTTER

$

$

Currently unavailable

11

Toro 104-2998

PAD-PEDAL

$

$

Currently unavailable

12

$

$

Not available

14

Toro 33024-00

NUT-LOCK, NI

$0.99

$

Usually ships in 3-6 days

0

15

Toro 104-3002

SPRING-BRAKE

$

$

Currently unavailable

16

Toro 104-3003

ROD-CONNECTING, BRAKE

$

$

Currently unavailable

17

Toro 104-3004

SHAFT-BRAKE

$

$

Currently unavailable

18

Toro 104-3005

SPRING-BRAKE, HAND

$

$

Currently unavailable

19

Toro 104-3006

LEVER-BRAKE, HAND

$

$

Currently unavailable

20

Toro 33114-020

SCREW-HH

$0.99

$

In Stock, Qty 13

0

21

Toro 104-3007

CLAMP-LEVER, PARKING BRAKE

$

$

Not available

22

Toro 104-3008

PIN-SPRING

$

$

Currently unavailable

23

Toro 104-3009

SCREW-HEX

$

$

Currently unavailable

24

Toro 104-3016

PIN-COTTER

$

$

Currently unavailable

25

Toro 104-3011

BRACKET-ROD, BRAKE

$

$

Currently unavailable

26

Toro 104-3012

SPRING

$

$

Currently unavailable

27

Toro 104-3323

Plate-Bypass

$

$

Currently unavailable

28

Toro 104-3014

STIRRUP

$

$

Currently unavailable

29

Toro 104-3015

E-CLIP

$

$

Currently unavailable

30

Toro 33095-00

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

31

$

$

Currently unavailable

32

Toro 106-5768

Washer

$

$

Currently unavailable

33

Toro 106-5769

Washer

$

$

Not available

34

Toro 106-5770

Washer

$

$

Currently unavailable

35

Toro 106-5771

Washer

$

$

Not available
