74570 (170-DH) - Toro Lawn Tractor (SN: 230000001 - 230999999) (2003) CUTTING PAN DRIVE ASSEMBLY Parts Diagram

Lawn Tractor

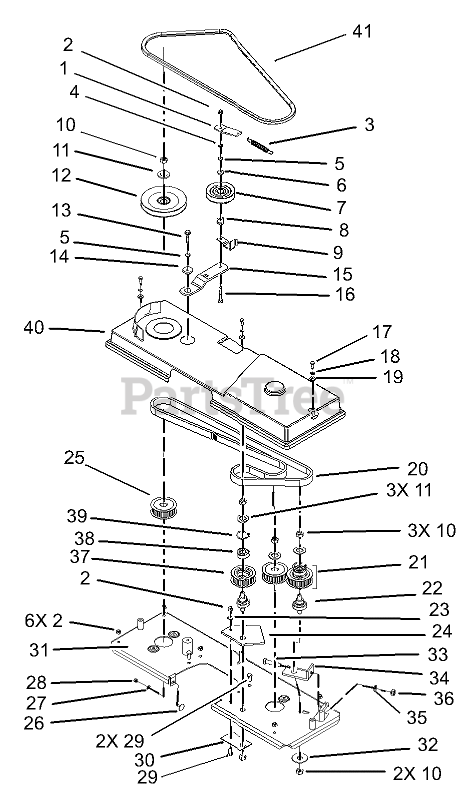

CUTTING PAN DRIVE ASSEMBLY Parts Diagram

  • Title
1

Toro 104-3099

LEVER-ENGAGEMENT

$

$

Not available

2

Toro 48-9510

NUT
(Superseded to 33024-00)

$0.99

$

Usually ships in 3-6 days

0

3

Toro 104-3101

SPRING

$

$

Currently unavailable

4

Toro 57-6390

NUT-JAM

$1.49

$

Usually ships in 3-6 days

0

5

Toro 42-9850

WASHER-LOCK, SPRING
(Superseded to 325-34)

$3.99

$

In Stock, only 2 left!

0

6

Toro 106-8588

Washer-Flat

$

$

Currently unavailable

7

Toro 104-3103

PULLEY-IDLER

$

$

Currently unavailable

8

Toro 104-3104

BUSHING

$

$

Currently unavailable

9

Toro 104-3105

RETAINER-BELT

$

$

Currently unavailable

10

Toro 48-9540

NUT-LOCK, HEX NI

$0.99

$

Usually ships in 3-6 days

0

11

Toro 33099-00

WASHER-FLAT

$1.49

$

Usually ships in 3-6 days

0

12

Toro 104-3107

PULLEY-DRIVE

$

$

Currently unavailable

13

Toro 104-3085

BOLT-HHF

$

$

Currently unavailable

14

Toro 104-3108

SPACER-SHOULDER

$

$

Currently unavailable

15

Toro 104-3109

ARM-IDLER

$

$

Currently unavailable

16

Toro 33114-050

Screw-HH

$2.99

$

Usually ships in 3-6 days

0

17

Toro 33113-016

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

18

Toro 106-8568

Washer-Flat

$

$

Currently unavailable

19

Toro 83-7420

WASHER-RUBBER

$

$

Currently unavailable

20

Toro 106-8591

Belt-Cog

$

$

Not available

21

Toro 104-3113

COG PULLEY ASM

$

$

Not available

22

Toro 104-3114

PIN-PULLEY, Cog

$

$

Currently unavailable

23

Toro 33094-00

WASHER-PLAIN

$0.99

$

In Stock, only 2 left!

0

24

Toro 104-3115

SUPPORT-PULLEY

$

$

Currently unavailable

25

Toro 104-3116

PULLEY-COG, DRIVE

$

$

Currently unavailable

26

Toro 33123-016

SCREW-CARR

$1.99

$

Usually ships in 3-6 days

0

27

Toro 33093-00

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

28

Toro 33023-00

NUT-LOCK

$0.99

$

Usually ships in 3-6 days

0

29

Toro 33114-025

SCREW-HH

$1.99

$

In Stock, Qty 20+

0

30

Toro 104-3117

PLATE-ANCHOR

$

$

Currently unavailable

31

Toro 106-8590

BLADE-DRIVE PLATE

$

$

Not available

32

Toro 104-2909

WASHER

$

$

Not available

33

Toro 33115-050

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

34

Toro 104-3120

BRACKET-IDLER

$

$

Currently unavailable

35

Toro 33095-00

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

36

Toro 48-9520

NUT
(Superseded to 33025-00)

$1.49

$

In Stock, only 2 left!

0

37

Toro 104-3121

Pulley-Cog
(Superseded to 104-3113)

$

$

Not available

38

Toro 100-1048

BEARING-BALL
(Superseded to 38-7820)

$13.99

$

In Stock, Qty 18

0

39

Toro 104-3123

RING-LOCKING

$

$

Currently unavailable

40

Toro 106-8589

Belt-Cover

$

$

Currently unavailable

41

Toro 104-3127

V-BELT

$

$

Currently unavailable
