74570 (170-DH) - Toro Lawn Tractor (SN: 220000001 - 220999999) (2002) FAN PULLEY ASSEMBLY Parts Diagram

Lawn Tractor

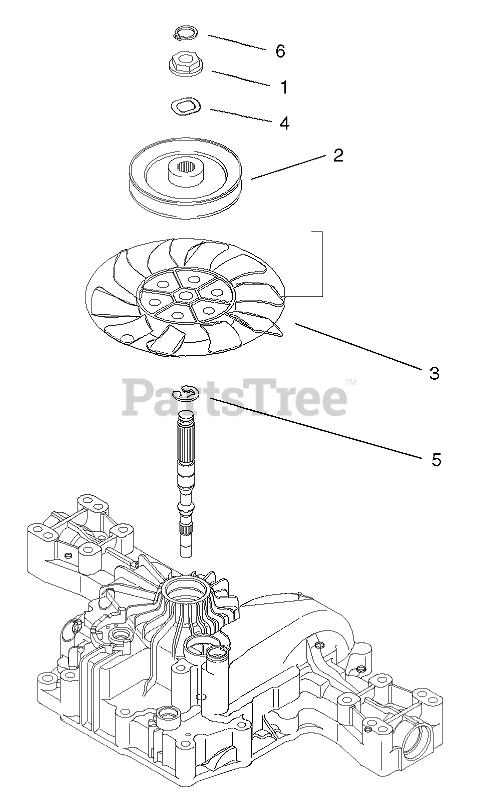

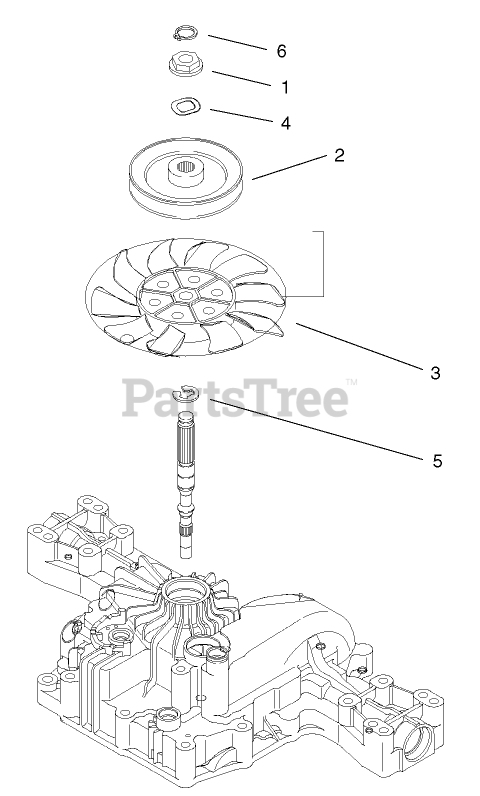

FAN PULLEY ASSEMBLY Parts Diagram

  • Title
1

Toro 104-3320

Collar-Spline

$15.99

$

Usually ships in 3-6 days

0

2

Toro 104-3197

PULLEY-TRANSMISSION

$

$

Currently unavailable

3

Toro 104-3199

FAN-TRANSMISSION

$

$

Currently unavailable

4

Toro 104-3321

Washer-Lock

$4.49

$

Usually ships in 3-6 days

0

5

Toro 93-0387

E-RING
(Superseded to 92-0761)

$0.99

$

Usually ships in 3-6 days

0

6

Toro 104-3198

E-RING

$

$

Currently unavailable
