74570 (170-DH) - Toro Lawn Tractor (SN: 220000001 - 220999999) (2002) CHUTE COLLECTOR ASSEMBLY Parts Diagram

Lawn Tractor

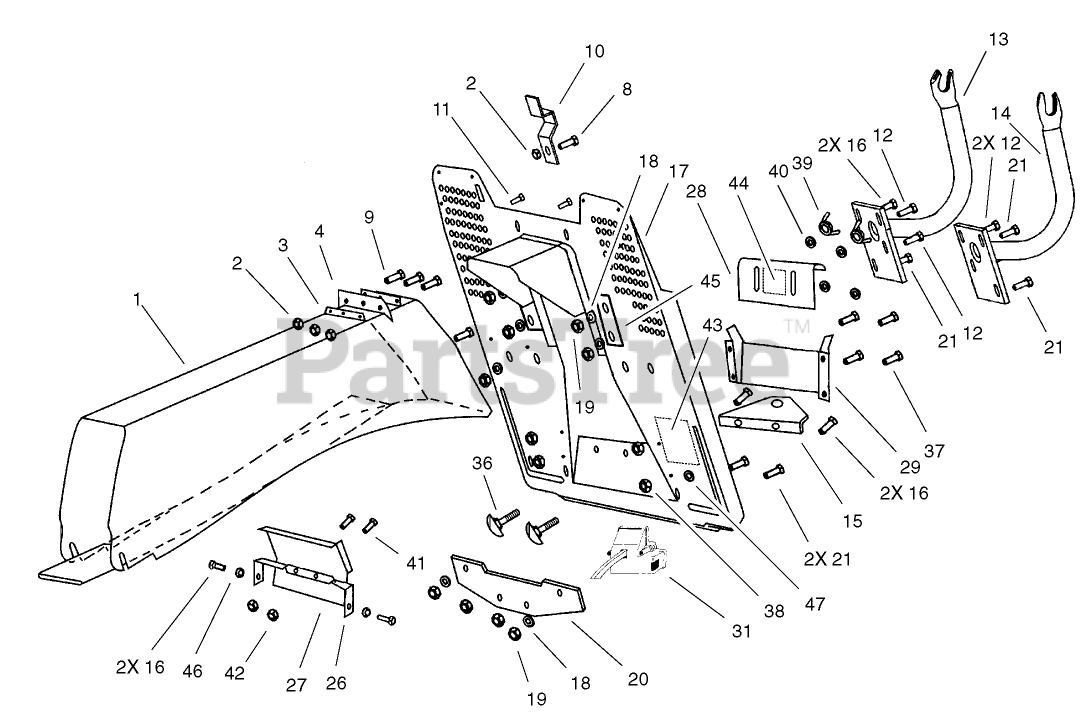

CHUTE COLLECTOR ASSEMBLY Parts Diagram

  • Title
1

Toro 104-3054

TUNNEL

$

$

Not available

2

Toro 104-2985

NUT-HEX

$

$

Currently unavailable

3

Toro 104-3055

PLATE-SUPPORT

$

$

Not available

4

Toro 104-3056

SEAL-RUBBER

$

$

Not available

8

$

$

Not available

9

Toro 104-3058

SCREW-SFH

$

$

Currently unavailable

10

Toro 104-3059

COVER-SWITCH

$

$

Not available

11

Toro 104-3060

BOLT-CARRIAGE

$

$

Currently unavailable

12

$

$

Currently unavailable

13

Toro 104-3062

SUPPORT-COLLECTOR, RIGHT

$

$

Currently unavailable

14

Toro 104-3063

SUPPORT-COLLECTOR, LEFT

$

$

Currently unavailable

15

Toro 104-3064

HITCH-TOW

$

$

Not available

16

Toro 104-3065

SCREW-HEX

$

$

Currently unavailable

17

Toro 104-3066

COLLECTOR PLATE ASM

$

$

Currently unavailable

18

Toro 33095-00

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

19

Toro 33024-00

NUT-LOCK, NI

$0.99

$

Usually ships in 3-6 days

0

20

Toro 104-3067

SUPPORT-HITCH, TOW

$

$

Not available

21

Toro 104-3068

SCREW-HEX

$

$

Currently unavailable

26

Toro 104-3069

BRACKET-SHIELD, PROTECTIVE

$

$

Not available

27

Toro 104-3070

SHIELD-PROTECTIVE

$

$

Not available

28

Toro 104-3336

Shield-Adjustable

$

$

Currently unavailable

29

Toro 104-3335

Hopper-Receiving

$

$

Not available

31

Toro 104-3074

OVERLOAD SWITCH ASM

$

$

Currently unavailable

36

$

$

Not available

37

Toro 33113-012

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

38

Toro 33023-00

NUT-LOCK

$0.99

$

Usually ships in 3-6 days

0

39

Toro 32103-28

NUT-WING

$6.99

$

Usually ships in 3-6 days

0

40

Toro 33093-00

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

41

Toro 104-2948

BOLT-CARRIAGE

$

$

Currently unavailable

42

Toro 87-5140

NUT-LOCK

$0.99

$

Usually ships in 3-6 days

0

43

Toro 104-3243

DECAL-BYPASS, HYDRO

$

$

Currently unavailable

44

Toro 104-2853

DECAL-POSITION, BAGGING

$

$

Not available

45

Toro 104-3347

Plate-Reinforcing

$

$

Currently unavailable

46

Toro 104-3348

Washer-Spring
(Superseded to 104-2927)

$

$

Not available

47

Toro 106-5772

Bushing

$

$

Not available
