74570 (170-DH) - Toro Lawn Tractor (SN: 220000001 - 220999999) (2002) CARBURETOR ASSEMBLY BRIGGS AND STRATTON 311777-0151-E1 Parts Diagram

Lawn Tractor

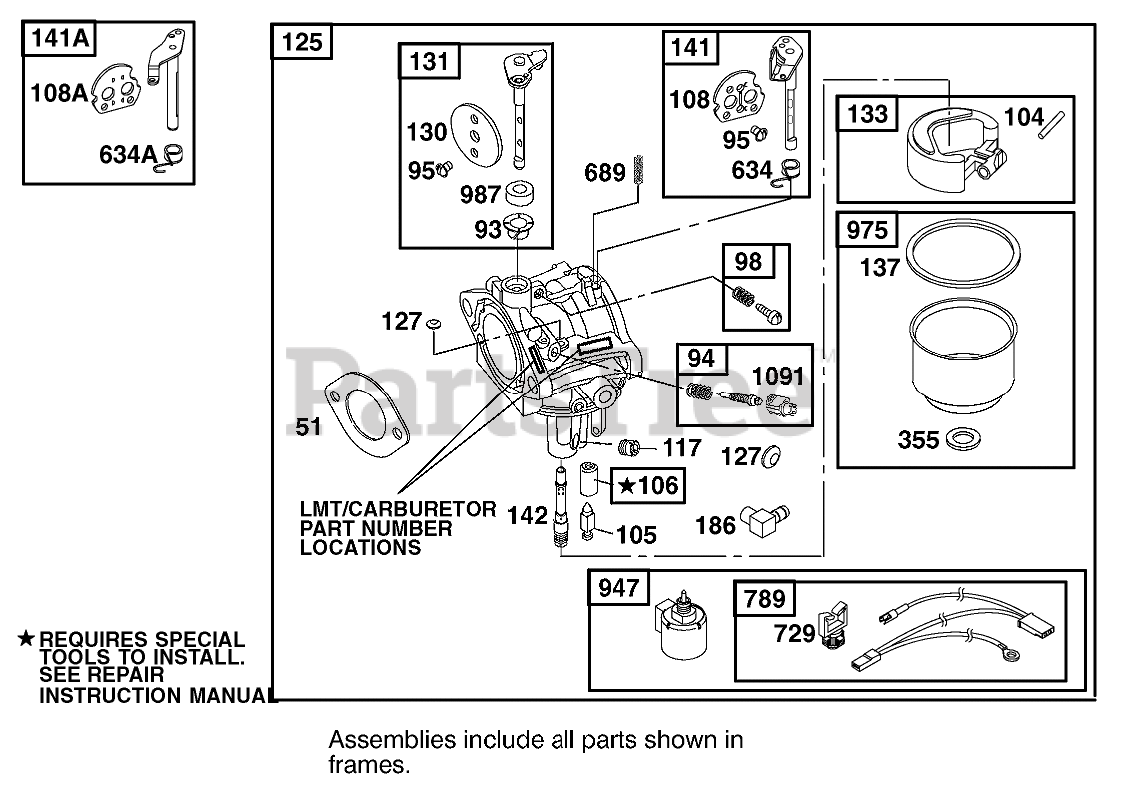

CARBURETOR ASSEMBLY BRIGGS AND STRATTON 311777-0151-E1 Parts Diagram

  • Title

51

Briggs & Stratton 273650

Gasket-Intake
(Superseded to 692137)

Note: Included in Gasket Set-Ref. 358.

$3.49

$

In Stock, Qty 20+

0

51

Briggs & Stratton 273650

Gasket-Intake
(Superseded to 692137)

Note: Included in Carburetor Gasket Set-Ref. 977.

$3.49

$

In Stock, Qty 20+

0

51

Briggs & Stratton 273650

Gasket-Intake
(Superseded to 692137)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 20+

0

51

Briggs & Stratton 273650

Gasket-Intake
(Superseded to 692137)

Note: Included in Valve Overhaul Kit-Ref. 1033.

$3.49

$

In Stock, Qty 20+

0

51

Briggs & Stratton 273650

Gasket-Intake
(Superseded to 692137)

Note: Included in Carburetor Kit-Ref. 121

$3.49

$

In Stock, Qty 20+

0

93

Briggs & Stratton 281346

Bushing-Throttle
(Superseded to 690602)

Note: Included in Carburetor Kit-Ref. 121

$9.49

$

Usually ships in 2-12 days

0

93

Briggs & Stratton 281346

Bushing-Throttle
(Superseded to 690602)

Note: Obtain parts from www.briggsandstratton.com

$9.49

$

Usually ships in 2-12 days

0

94

Briggs & Stratton 498030

Idle Mixture Kit
(Superseded to 794176)

Note: Obtain parts from www.briggsandstratton.com

$21.99

$

Usually ships in 2-12 days

0

95

Briggs & Stratton 94098

Valve-Choke
(Superseded to 691636)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

Usually ships in 2-12 days

0

95

Briggs & Stratton 94098

Valve-Choke
(Superseded to 691636)

Note: Included in Carburetor Kit-Ref. 121

$3.99

$

Usually ships in 2-12 days

0

98

Briggs & Stratton 495800

Idle Speed Kit

Note: Obtain parts from www.briggsandstratton.com

$10.99

$

In Stock, only 1 left!

0

104

Briggs & Stratton 231789

Pin-Hinge, Float
(Superseded to 690525)

Note: Included in Carburetor Kit-Ref. 121

$4.99

$

In Stock, only 1 left!

0

104

Briggs & Stratton 231789

Pin-Hinge, Float
(Superseded to 690525)

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

In Stock, only 1 left!

0

105

Briggs & Stratton 231855

Valve-Needle, Float
(Superseded to 231855S)

Note: Included in Carburetor Kit-Ref. 121

$6.99

$

Usually ships in 2-12 days

0

105

Briggs & Stratton 231855

Valve-Needle, Float
(Superseded to 231855S)

Note: Obtain parts from www.briggsandstratton.com

$6.99

$

Usually ships in 2-12 days

0

106

Briggs & Stratton 231854

Seat-Inlet
(Superseded to 690577)

Note: Included in Carburetor Kit-Ref. 121

$7.99

$

In Stock, Qty 6

0

106

Briggs & Stratton 231854

Seat-Inlet
(Superseded to 690577)

Note: Obtain parts from www.briggsandstratton.com

$7.99

$

In Stock, Qty 6

0

108

Briggs & Stratton 224558

Valve-Choke
(Superseded to 690464)

Note: Obtain parts from www.briggsandstratton.com

$8.49

$

Usually ships in 2-12 days

0

108A

Briggs & Stratton 224540

Valve-Choke
(Superseded to 692344)

Note: Obtain parts from www.briggsandstratton.com

$8.49

$

Usually ships in 2-12 days

0

117

Briggs & Stratton 232118

Jet-Main
(Superseded to 692408)

Note: Obtain parts from www.briggsandstratton.com

$17.99

$

Usually ships in 2-12 days

0

117

Briggs & Stratton 232118

Jet-Main
(Superseded to 692408)

Note: Included in Carburetor Kit-Ref. 121

$17.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 495136

Push Rod (Exhaust)
(Superseded to 692011)

Note: Obtain parts from www.briggsandstratton.com

$9.49

$

In Stock, Qty 20+

0

125

Briggs & Stratton 499153

Carburetor
(Superseded to 799727)

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

127

Welch Plug(Sold in Kit Only)

Note: Included in Carburetor Kit-Ref. 121

$

$

Not available

127

Welch Plug(Sold in Kit Only)

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

130

Briggs & Stratton 224539

Valve-ThroWe
(Superseded to 691750)

Note: Obtain parts from www.briggsandstratton.com

$9.49

$

Usually ships in 2-12 days

0

131

Briggs & Stratton 494379

Throttle Shaft Kit
(Superseded to 790901)

Note: Obtain parts from www.briggsandstratton.com

$38.99

$

In Stock, only 1 left!

0

133

Briggs & Stratton 494381

Float-Carburetor

Note: Obtain parts from www.briggsandstratton.com

$13.99

$

In Stock, only 4 left!

0

137

Briggs & Stratton 281165

Gasket-Bowl, Float
(Superseded to 281165S)

Note: Included in Carburetor Kit-Ref. 121

$4.99

$

Usually ships in 2-12 days

0

137

Briggs & Stratton 281165

Gasket-Bowl, Float
(Superseded to 281165S)

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

Usually ships in 2-12 days

0

137

Briggs & Stratton 281165

Gasket-Bowl, Float
(Superseded to 281165S)

Note: Included in Carburetor Gasket Set-Ref. 977.

$4.99

$

Usually ships in 2-12 days

0

141

Briggs & Stratton 495097

Choke Shaft Kit
(Superseded to 790905)

Note: Obtain parts from www.briggsandstratton.com

$45.99

$

Usually ships in 2-12 days

0

141A

Briggs & Stratton 495931

Choke Shaft Kit
(Superseded to 790902)

Note: Obtain parts from www.briggsandstratton.com

$33.99

$

In Stock, only 1 left!

0

142

Briggs & Stratton 232117

Carburetor Nozzle
(Superseded to 692412)

Note: Obtain parts from www.briggsandstratton.com

$30.99

$

In Stock, only 3 left!

0

142

Briggs & Stratton 232117

Carburetor Nozzle
(Superseded to 692412)

Note: Included in Carburetor Kit-Ref. 121

$30.99

$

In Stock, only 3 left!

0

186

Briggs & Stratton 493496

Connector-Fuel
(Superseded to 692317)

Note: Obtain parts from www.briggsandstratton.com

$6.49

$

In Stock, Qty 20+

0

355

Briggs & Stratton 281164

Washer
(Superseded to 692255)

Note: Included in Carburetor Gasket Set-Ref. 977.

$5.49

$

In Stock, Qty 20+

0

355

Briggs & Stratton 281164

Washer
(Superseded to 692255)

Note: Included in Carburetor Kit-Ref. 121

$5.49

$

In Stock, Qty 20+

0

355

Briggs & Stratton 281164

Washer
(Superseded to 692255)

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

In Stock, Qty 20+

0

634

Briggs & Stratton 494453

Seal-Choke Shaft
(Superseded to 690801)

Note: Obtain parts from www.briggsandstratton.com

$8.49

$

Usually ships in 2-12 days

0

634

Briggs & Stratton 494453

Seal-Choke Shaft
(Superseded to 690801)

Note: Included in Carburetor Kit-Ref. 121

$8.49

$

Usually ships in 2-12 days

0

634A

Briggs & Stratton 494455

Seal-Choke Shaft
(Superseded to 690802)

Note: Included in Carburetor Kit-Ref. 121

$9.49

$

Usually ships in 2-12 days

0

634A

Briggs & Stratton 494455

Seal-Choke Shaft
(Superseded to 690802)

Note: Obtain parts from www.briggsandstratton.com

$9.49

$

Usually ships in 2-12 days

0

689

Briggs & Stratton 262715

Friction Spring
(Superseded to 590931)

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

In Stock, Qty 11

0

729

Briggs & Stratton 281390

Clip-Wire
(Superseded to 691335)

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

Usually ships in 2-12 days

0

789

Briggs & Stratton 497708

Wire Stop
(Superseded to 692037)

Note: Obtain parts from www.briggsandstratton.com

$35.99

$

In Stock, only 1 left!

0

947

Briggs & Stratton 497672

Solenoid
(Superseded to 692734)

Note: Obtain parts from www.briggsandstratton.com

$102.99

$

In Stock, Qty 7

0

975

Briggs & Stratton 495933

Bowl-Float

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

987

Briggs & Stratton 281166

Seal-Shaft
(Superseded to 691326)

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

Usually ships in 2-12 days

0

987

Briggs & Stratton 281166

Seal-Shaft
(Superseded to 691326)

Note: Included in Carburetor Kit-Ref. 121

$5.49

$

Usually ships in 2-12 days

0

1091

Briggs & Stratton 691333

Cap-Limiter

Note: Obtain parts from www.briggsandstratton.com

$9.49

$

In Stock, only 1 left!

0
