74570 (170-DH) - Toro Lawn Tractor (SN: 210000001 - 210999999) (2001) ENGINE ASSEMBLY Parts Diagram

Lawn Tractor

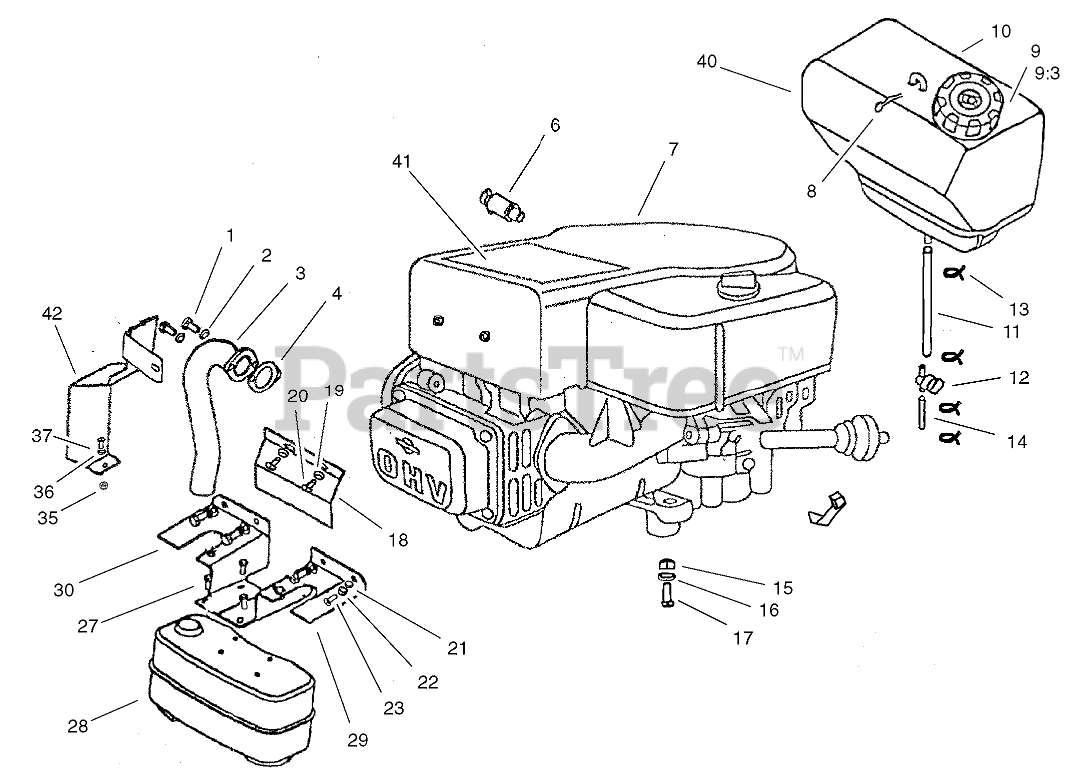

ENGINE ASSEMBLY Parts Diagram

  • Title
1

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

2

Toro 104-2927

WASHER-SPRING

$

$

Not available

3

Toro 104-3221

TUBE-EXHAUST

$

$

Currently unavailable

4

Toro 88-4410

GASKET-EXHAUST

$19.99

$

In Stock, Qty 6

0

6

Toro 104-3208

VALVE-OIL DRAIN

$

$

Currently unavailable

7

Engine-Briggs And Stratton, Intek, Model 311777-0151-E1

Note: Not serviced separately

$

$

Not available

8

Toro 104-3144

PIN-HAIR

$

$

Currently unavailable

9

Toro 88-3980

GAS CAP ASM

$33.99

$

In Stock, Qty 6

0

9:3

Toro 88-4010

GASKET-CAP, GAS

$34.99

$

In Stock, only 1 left!

0

10

Toro 104-3057

TANK-FUEL

$

$

Currently unavailable

11

Toro 104-3211

LINE-FUEL

$

$

Currently unavailable

12

Toro 104-3224

VALVE-TANK, FUEL

$

$

Currently unavailable

13

Toro 104-3212

CLAMP-LINE, FUEL

$

$

Currently unavailable

14

Toro 104-3213

LINE-FUEL

$

$

Currently unavailable

15

Toro 33024-00

NUT-LOCK, NI

$0.99

$

Usually ships in 3-6 days

0

16

Toro 33094-00

WASHER-PLAIN

$0.99

$

In Stock, only 2 left!

0

17

Toro 104-3085

BOLT-HHF

$

$

Currently unavailable

17

Toro 48-7740

SCREW
(Superseded to 33114-035)

$5.49

$

In Stock, only 1 left!

0

18

Toro 104-3222

COVER-FRONT

$

$

Currently unavailable

19

Toro 104-2931

WASHER-FLAT

$

$

Currently unavailable

20

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

21

Toro 104-2979

WASHER-FLAT

$

$

Not available

22

Toro 104-2927

WASHER-SPRING

$

$

Not available

23

Toro 33114-020

SCREW-HH

$0.99

$

In Stock, Qty 13

0

27

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

28

Toro 104-3229

MUFFLER

$

$

Currently unavailable

29

Toro 104-3214

GUARD-MUFFLER, LH

$

$

Currently unavailable

30

Toro 104-3215

GUARD-MUFFLER, RH

$

$

Currently unavailable

35

Toro 33013-00

NUT-HEX

$2.49

$

In Stock, only 3 left!

0

36

Toro 104-3186

WASHER-SPRING

$

$

Currently unavailable

37

Toro 33113-016

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

40

Toro 104-3220

TANK-FUEL W/CAP

$

$

Not available

41

Toro 104-2902

DECAL-ENGINE 17HP

$

$

Currently unavailable

42

Toro 105-1242

Cover-Manifold, Exhaust

$

$

Currently unavailable
