74570 (170-DH) - Toro Lawn Tractor (SN: 210000001 - 210999999) (2001) ELECTRICAL ASSEMBLY Parts Diagram

Lawn Tractor

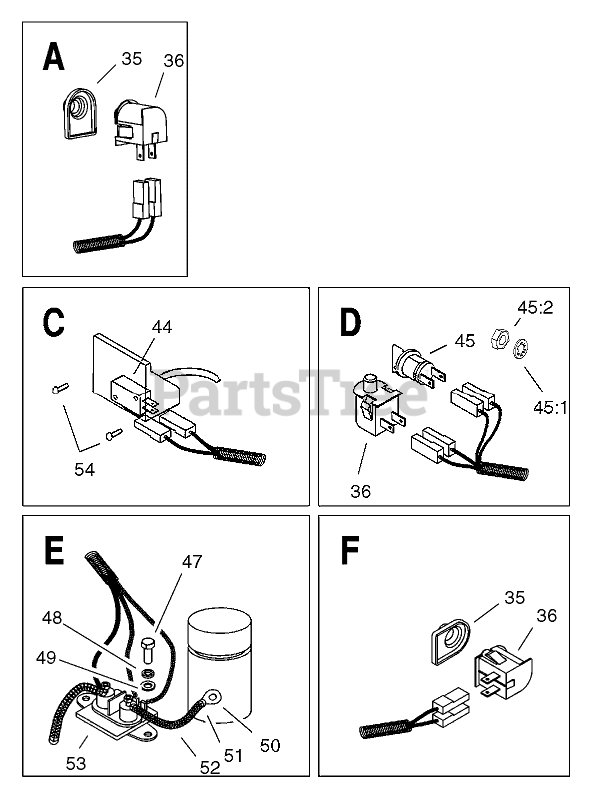

ELECTRICAL ASSEMBLY Parts Diagram

  • Title

35

Toro 104-3178

COVER-PROTECTIVE

$

$

Not available

36

Toro 104-3179

SWITCH-DELTA
(Superseded to 82-2190)

$14.99

$

In Stock, Qty 10

0

44

Toro 104-3185

SWITCH-OMRON

$

$

Not available

45

Toro 46-5780

STARTER SWITCH ASM

$29.99

$

In Stock, only 1 left!

0

45:1

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, only 2 left!

0

45:2

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 9

0

47

Toro 33113-012

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

48

Toro 104-3186

WASHER-SPRING

$

$

Currently unavailable

49

Toro 33093-00

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

50

Toro 32128-32

NUT-HHF

$2.99

$

In Stock, only 2 left!

0

51

Toro 104-3187

BOOT-RUBBER

$

$

Currently unavailable

52

Toro 104-3188

LEAD-STARTER, ELECTRIC

$

$

Not available

53

Toro 47-1910

SOLENOID
(Superseded to 740207)

$34.99

$

In Stock, only 4 left!

0

54

Toro 104-3349

Screw
(Superseded to 104-2977)

$

$

Not available
