74570 (170-DH) - Toro Lawn Tractor (SN: 210000001 - 210999999) (2001) CARBURETOR OVERHAUL KIT ASSEMBLY ENGINE BRIGGS AND STRATTON MODEL 311777-0151-E1 Parts Diagram

Lawn Tractor

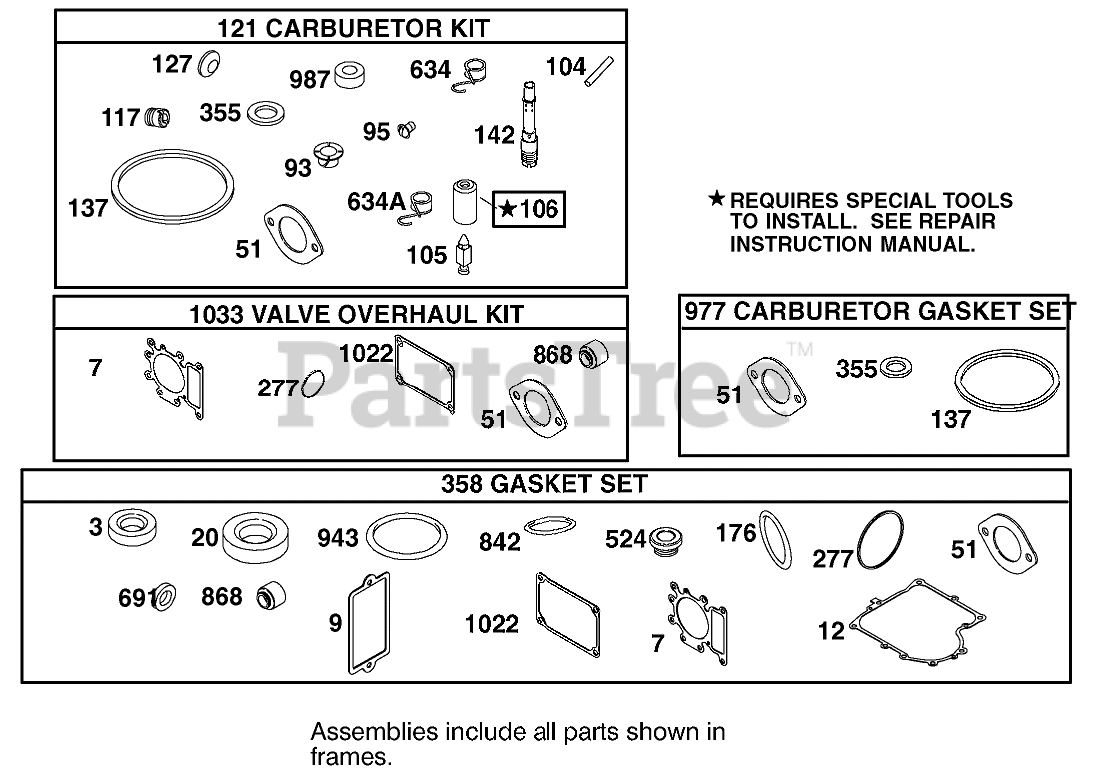

CARBURETOR OVERHAUL KIT ASSEMBLY ENGINE BRIGGS AND STRATTON MODEL 311777-0151-E1 Parts Diagram

  • Title

3

Briggs & Stratton 391086

Seal-Oil
(Superseded to 391086S)

Note: Included in Gasket Set-Ref. 358.

$6.49

$

In Stock, Qty 20+

0

7

Briggs & Stratton 692410

Gasket-Cylinder Head
(Superseded to 796584)

Note: Included in Gasket Set-Ref. 358.

$19.99

$

In Stock, Qty 20+

0

7

Briggs & Stratton 692410

Gasket-Cylinder Head
(Superseded to 796584)

Note: Included in Valve Overhaul Kit-Ref. 1033.

$19.99

$

In Stock, Qty 20+

0

9

Briggs & Stratton 27803

Gasket-Breather
(Superseded to 27803S)

Note: Included in Gasket Set-Ref. 358.

$4.49

$

In Stock, Qty 20+

0

12

Briggs & Stratton 271916

Gasket-Crankcase (1/64")
(Superseded to 692226)

Note: Included in Gasket Set-Ref. 358.

$6.99

$

In Stock, only 2 left!

0

Briggs & Stratton 271997

Gasket-Crankcase (.005")
(Superseded to 692406)

Note: Included in Gasket Set-Ref. 358.

$9.49

$

Usually ships in 2-12 days

0

Briggs & Stratton 271996

Gasket-Crankcase (.009")
(Superseded to 692405)

Note: Included in Gasket Set-Ref. 358.

$6.49

$

In Stock, only 1 left!

0

20

Briggs & Stratton 291675

Seal-Oil
(Superseded to 291675S)

Note: Included in Gasket Set-Ref. 358.

$6.99

$

In Stock, Qty 20+

0

51

Briggs & Stratton 273650

Gasket-Intake
(Superseded to 692137)

Note: Included in Gasket Set-Ref. 358.

$3.49

$

In Stock, Qty 20+

0

51

Briggs & Stratton 273650

Gasket-Intake
(Superseded to 692137)

Note: Included in Valve Overhaul Kit-Ref. 1033.

$3.49

$

In Stock, Qty 20+

0

51

Briggs & Stratton 273650

Gasket-Intake
(Superseded to 692137)

Note: Included in Carburetor Kit-Ref. 121

$3.49

$

In Stock, Qty 20+

0

51

Briggs & Stratton 273650

Gasket-Intake
(Superseded to 692137)

Note: Included in Caburetor Gasket Set-Ref. 977.

$3.49

$

In Stock, Qty 20+

0

93

Briggs & Stratton 281346

Bushing-Throttle
(Superseded to 690602)

Note: Included in Carburetor Kit-Ref. 121

$9.49

$

Usually ships in 2-12 days

0

95

Briggs & Stratton 94098

Valve-Choke
(Superseded to 691636)

Note: Included in Carburetor Kit-Ref. 121

$3.99

$

In Stock, only 2 left!

0

104

Briggs & Stratton 231789

Pin-Hinge, Float
(Superseded to 690525)

Note: Included in Carburetor Kit-Ref. 121

$4.99

$

In Stock, only 1 left!

0

105

Briggs & Stratton 231855

Valve-Needle, Float
(Superseded to 231855S)

Note: Included in Carburetor Kit-Ref. 121

$6.99

$

Usually ships in 2-12 days

0

106

Briggs & Stratton 231854

Seat-Inlet
(Superseded to 690577)

Note: Included in Carburetor Kit-Ref. 121

$7.99

$

In Stock, only 3 left!

0

117

Briggs & Stratton 232118

Jet-Main
(Superseded to 692408)

Note: Included in Carburetor Kit-Ref. 121

$17.99

$

Usually ships in 2-12 days

0

121

Briggs & Stratton 690191

Carburetor Kit

$69.99

$

Usually ships in 2-12 days

0

127

Welch Plug Sold In Kit Only

Note: Included in Carburetor Kit-Ref. 121

$

$

Not available

137

Briggs & Stratton 281165

Gasket-Bowl, Float
(Superseded to 281165S)

Note: Included in Caburetor Gasket Set-Ref. 977.

$4.99

$

Usually ships in 2-12 days

0

137

Briggs & Stratton 281165

Gasket-Bowl, Float
(Superseded to 281165S)

Note: Included in Carburetor Kit-Ref. 121

$4.99

$

Usually ships in 2-12 days

0

142

Briggs & Stratton 232117

Carburetor Nozzle
(Superseded to 692412)

Note: Included in Carburetor Kit-Ref. 121

$30.99

$

In Stock, only 3 left!

0

176

Briggs & Stratton 281106

O-Ring
(Superseded to 691917)

Note: Included in Gasket Set-Ref. 358.

$4.49

$

In Stock, Qty 20+

0

277

Briggs & Stratton 692138

Seal-O Ring

Note: Included in Gasket Set-Ref. 358.

$5.49

$

In Stock, Qty 18

0

277

Briggs & Stratton 692138

Seal-O Ring

Note: Included in Valve Overhaul Kit-Ref. 1033.

$5.49

$

In Stock, Qty 18

0

355

Briggs & Stratton 281164

Washer
(Superseded to 692255)

Note: Included in Caburetor Gasket Set-Ref. 977.

$5.49

$

In Stock, Qty 20+

0

355

Briggs & Stratton 281164

Washer
(Superseded to 692255)

Note: Included in Carburetor Kit-Ref. 121

$5.49

$

In Stock, Qty 20+

0

358

Briggs & Stratton 690189

Gasket Set

$86.99

$

In Stock, only 1 left!

0

524

Briggs & Stratton 281370

Seal
(Superseded to 281370S)

Note: Included in Gasket Set-Ref. 358.

$8.49

$

In Stock, Qty 20+

0

634

Briggs & Stratton 494453

Seal-Choke Shaft
(Superseded to 690801)

Note: Included in Carburetor Kit-Ref. 121

$8.49

$

Usually ships in 2-12 days

0

634A

Briggs & Stratton 494455

Seal-Choke Shaft
(Superseded to 690802)

Note: Included in Carburetor Kit-Ref. 121

$9.49

$

Usually ships in 2-12 days

0

691

Briggs & Stratton 491323

Seal-Oil
(Superseded to 692407)

Note: Included in Gasket Set-Ref. 358.

$7.99

$

In Stock, Qty 8

0

842

Briggs & Stratton 270920

O-Ring
(Superseded to 691870)

Note: Included in Gasket Set-Ref. 358.

$4.49

$

Usually ships in 2-12 days

0

868

Briggs & Stratton 499236

Seal-Valve
(Superseded to 690968)

Note: Included in Gasket Set-Ref. 358.

$10.99

$

In Stock, Qty 20+

0

868

Briggs & Stratton 499236

Seal-Valve
(Superseded to 690968)

Note: Included in Valve Overhaul Kit-Ref. 1033.

$10.99

$

In Stock, Qty 20+

0

943

Briggs & Stratton 280801

O-Ring Seal
(Superseded to 690589)

Note: Included in Gasket Set-Ref. 358.

$8.99

$

In Stock, Qty 20+

0

977

Briggs & Stratton 690192

Carburetor Gasket Set
(Superseded to 497535)

$67.99

$

In Stock, only 2 left!

0

987

Briggs & Stratton 281166

Seal-Shaft
(Superseded to 691326)

Note: Included in Carburetor Kit-Ref. 121

$5.49

$

Usually ships in 2-12 days

0

1022

Briggs & Stratton 272475

Gasket-Cover, Rocker
(Superseded to 272475S)

Note: Included in Gasket Set-Ref. 358.

$6.49

$

In Stock, Qty 20+

0

1022

Briggs & Stratton 272475

Gasket-Cover, Rocker
(Superseded to 272475S)

Note: Included in Valve Overhaul Kit-Ref. 1033.

$6.49

$

In Stock, Qty 20+

0

1033

Briggs & Stratton 690190

Set-Valve Gasket
(Superseded to 794152)

$31.99

$

In Stock, Qty 20+

0
