74570 (170-DH) - Toro Lawn Tractor (SN: 200000001 - 200999999) (2000) OPERATION (MOWER LIFT) ASSEMBLY Parts Diagram

Lawn Tractor

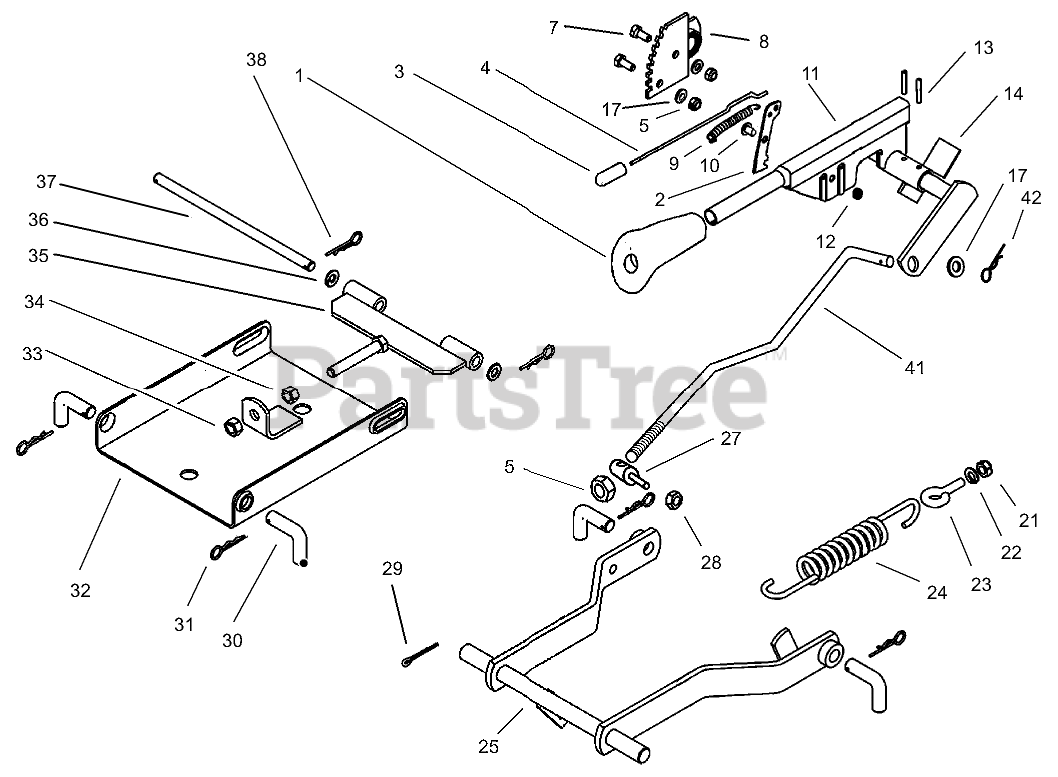

OPERATION (MOWER LIFT) ASSEMBLY Parts Diagram

  • Title
1

Toro 104-3129

GRIP-HANDLE

$

$

Currently unavailable

2

Toro 104-3130

RATCHET-PLATE, PIVOT

$

$

Currently unavailable

3

Toro 104-3131

BUTTON-PLUNGER

$

$

Currently unavailable

4

Toro 104-3132

ROD-CONNECTION

$

$

Currently unavailable

5

Toro 33024-00

NUT-LOCK, NI

$0.99

$

Usually ships in 3-6 days

0

7

Toro 33114-020

SCREW-HH

$0.99

$

In Stock, Qty 13

0

8

Toro 104-3133

SEGMENT-GEAR

$

$

Currently unavailable

9

Toro 104-3134

SPRING

$

$

Currently unavailable

10

Toro 104-3135

PIN-LEVER, ARM

$

$

Currently unavailable

11

Toro 104-3136

LEVER-ARM, HEIGHT ADJ.
(Superseded to 120-8716)

$135.99

$

Usually ships in 3-6 days

0

12

Toro 104-3137

CLIP-PIN

$

$

Currently unavailable

13

Toro 104-2994

PIN-SPRING

$

$

Currently unavailable

14

Toro 104-3138

SHAFT-HEIGHT ADJ.

$

$

Currently unavailable

17

Toro 33094-00

WASHER-PLAIN

$0.99

$

In Stock, only 2 left!

0

21

Toro 33025-00

NUT-LOCK, NI

$1.49

$

In Stock, only 2 left!

0

22

Toro 33095-00

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

23

Toro 104-3139

BOLT-EYE

$

$

Currently unavailable

24

Toro 104-3140

SPRING-LIFT

$

$

Currently unavailable

25

Toro 104-3141

PIVOT ARM ASM

$

$

Currently unavailable

27

Toro 104-3142

PIN-LIFTING

$

$

Currently unavailable

28

Toro 33025-00

NUT-LOCK, NI

$1.49

$

In Stock, only 2 left!

0

29

Toro 104-3016

PIN-COTTER

$

$

Currently unavailable

30

Toro 104-3143

PIN-BENT

$

$

Currently unavailable

31

Toro 104-3144

PIN-HAIR

$

$

Currently unavailable

32

Toro 104-3145

SUSPENSION-MOWER DECK, FRONT

$

$

Currently unavailable

33

Toro 33026-00

NUT-LOCK

$1.49

$

Usually ships in 3-6 days

0

34

Toro 33016-00

NUT-HEX

$1.99

$

Usually ships in 3-6 days

0

35

Toro 104-3146

HOLDER-FRONT

$

$

Currently unavailable

36

Toro 104-3124

WASHER-FLAT

$

$

Currently unavailable

37

$

$

Currently unavailable

38

Toro 104-3148

PIN-HAIR

$

$

Currently unavailable

41

Toro 104-3149

ROD-HEIGHT, ADJ.

$

$

Currently unavailable

42

Toro 104-3151

PIN-COTTER

$

$

Currently unavailable
