74570 (170-DH) - Toro Lawn Tractor (SN: 200000001 - 200999999) (2000) ELECTRICAL ASSEMBLY Parts Diagram

Lawn Tractor

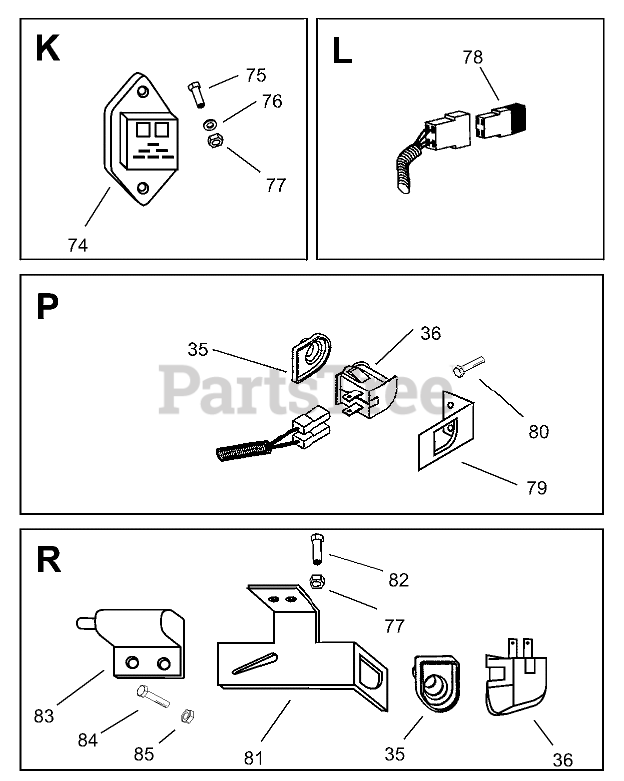

ELECTRICAL ASSEMBLY Parts Diagram

  • Title

35

Toro 104-3178

COVER-PROTECTIVE

$

$

Not available

36

Toro 104-3179

SWITCH-DELTA
(Superseded to 82-2190)

$14.99

$

In Stock, Qty 10

0

45

Toro 46-5780

STARTER SWITCH ASM

Note: Not illustrated

$29.99

$

In Stock, only 1 left!

0

74

Toro 99-3701

MODULE-CLUTCH

$148.99

$

Usually ships in 3-6 days

0

75

Toro 60-6910

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

76

Toro 52-6430

WASHER

$0.99

$

In Stock, Qty 5

0

77

Toro 87-5140

NUT-LOCK

$0.99

$

Usually ships in 3-6 days

0

78

Toro 104-3169

CIRCUIT-MEMORY

$

$

Currently unavailable

79

Toro 104-3170

BRACKET

$

$

Not available

80

Toro 104-3190

SCREW

$

$

Currently unavailable

81

Toro 104-3171

BRACKET

$

$

Not available

82

Toro 104-2980

SCREW

$

$

Currently unavailable

83

Toro 95-1653

SWITCH-POLE, SINGLE

$20.99

$

Usually ships in 3-6 days

0

84

Toro 104-2983

SCREW

$

$

Currently unavailable

85

Toro 104-2985

NUT-HEX

$

$

Currently unavailable
