74570 (170-DH) - Toro Lawn Tractor (SN: 200000001 - 200999999) (2000) CUTTING PAN ASSEMBLY Parts Diagram

Lawn Tractor

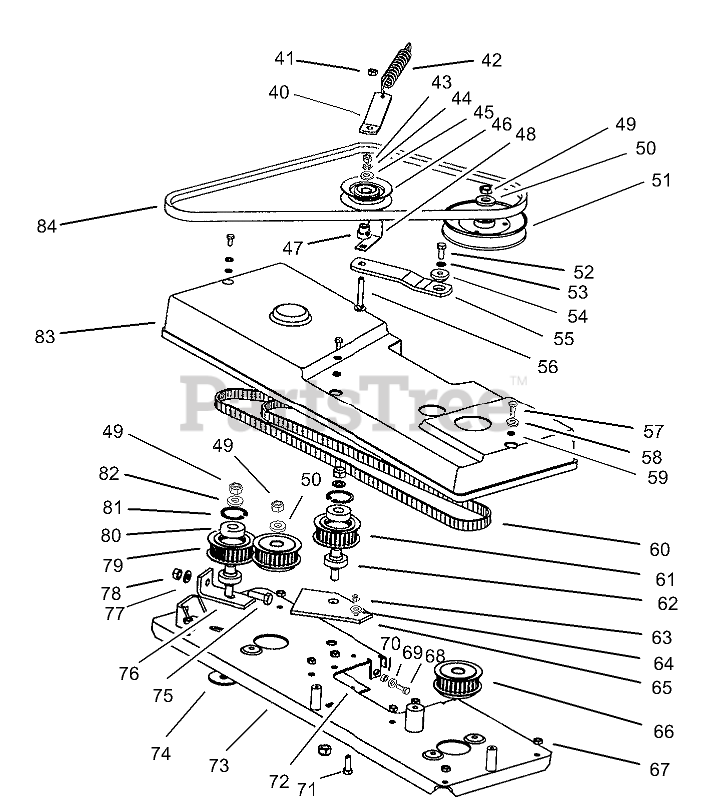

CUTTING PAN ASSEMBLY Parts Diagram

  • Title
40

Toro 104-3099

LEVER-ENGAGEMENT

$

$

Not available

41

Toro 33024-00

NUT-LOCK, NI

$0.99

$

Usually ships in 3-6 days

0

42

Toro 104-3101

SPRING

$

$

Currently unavailable

43

Toro 104-3102

NUT-HEX
(Superseded to 57-6390)

$1.49

$

Usually ships in 3-6 days

0

44

Toro 104-2927

WASHER-SPRING

$

$

Not available

45

Toro 104-2946

WASHER-PLAIN

$

$

Currently unavailable

46

Toro 104-3103

PULLEY-IDLER

$

$

Currently unavailable

47

Toro 104-3104

BUSHING

$

$

Currently unavailable

48

Toro 104-3105

RETAINER-BELT

$

$

Currently unavailable

49

Toro 33026-00

NUT-LOCK

$1.49

$

Usually ships in 3-6 days

0

50

Toro 104-3106

WASHER-FLAT

$

$

Not available

51

Toro 104-3107

PULLEY-DRIVE

$

$

Currently unavailable

52

Toro 33114-025

SCREW-HH

$1.99

$

In Stock, Qty 20+

0

53

Toro 104-2927

WASHER-SPRING

$

$

Not available

54

Toro 104-3108

SPACER-SHOULDER

$

$

Currently unavailable

55

Toro 104-3109

ARM-IDLER

$

$

Currently unavailable

56

Toro 33114-050

Screw-HH

$2.49

$

Usually ships in 3-6 days

0

57

Toro 33113-016

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

58

Toro 104-3110

WASHER-FLAT

$

$

Not available

59

Toro 104-3111

WASHER-RUBBER

$

$

Not available

60

Toro 104-3112

BELT-COG
(Superseded to 106-8591)

$

$

Not available

61

Toro 104-3113

COG PULLEY ASM

$

$

Not available

62

Toro 104-3114

PIN-PULLEY, Cog

$

$

Currently unavailable

63

Toro 33024-00

NUT-LOCK, NI

$0.99

$

Usually ships in 3-6 days

0

64

Toro 33094-00

WASHER-PLAIN

$0.99

$

In Stock, only 2 left!

0

65

Toro 104-3115

SUPPORT-PULLEY

$

$

Currently unavailable

66

Toro 104-3116

PULLEY-COG, DRIVE

$

$

Currently unavailable

67

Toro 33024-00

NUT-LOCK, NI

$0.99

$

Usually ships in 3-6 days

0

68

$

$

Currently unavailable

69

Toro 33093-00

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

70

Toro 33023-00

NUT-LOCK

$0.99

$

Usually ships in 3-6 days

0

71

Toro 33114-025

SCREW-HH

$1.99

$

In Stock, Qty 20+

0

72

Toro 104-3117

PLATE-ANCHOR

$

$

Currently unavailable

73

Toro 104-3118

BLADE DRIVE PLATE ASM

$

$

Not available

74

Toro 104-2909

WASHER

$

$

Not available

75

Toro 104-3119

SCREW-HEX

$

$

Not available

76

Toro 104-3120

BRACKET-IDLER

$

$

Currently unavailable

77

Toro 33095-00

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

78

Toro 33025-00

NUT-LOCK, NI

$1.49

$

In Stock, only 2 left!

0

79

Toro 104-3121

Pulley-Cog
(Superseded to 104-3113)

$

$

Not available

80

Toro 104-3122

BEARING

$

$

Currently unavailable

81

Toro 104-3123

RING-LOCKING

$

$

Currently unavailable

82

Toro 104-3124

WASHER-FLAT

$

$

Currently unavailable

83

Toro 104-3125

COVER-BELT

$

$

Currently unavailable

84

Toro 104-3127

V-BELT

$

$

Currently unavailable
