74570 (170-DH) - Toro Lawn Tractor (SN: 200000001 - 200999999) (2000) CHUTE-COLLECTOR ASSEMBLY Parts Diagram

Lawn Tractor

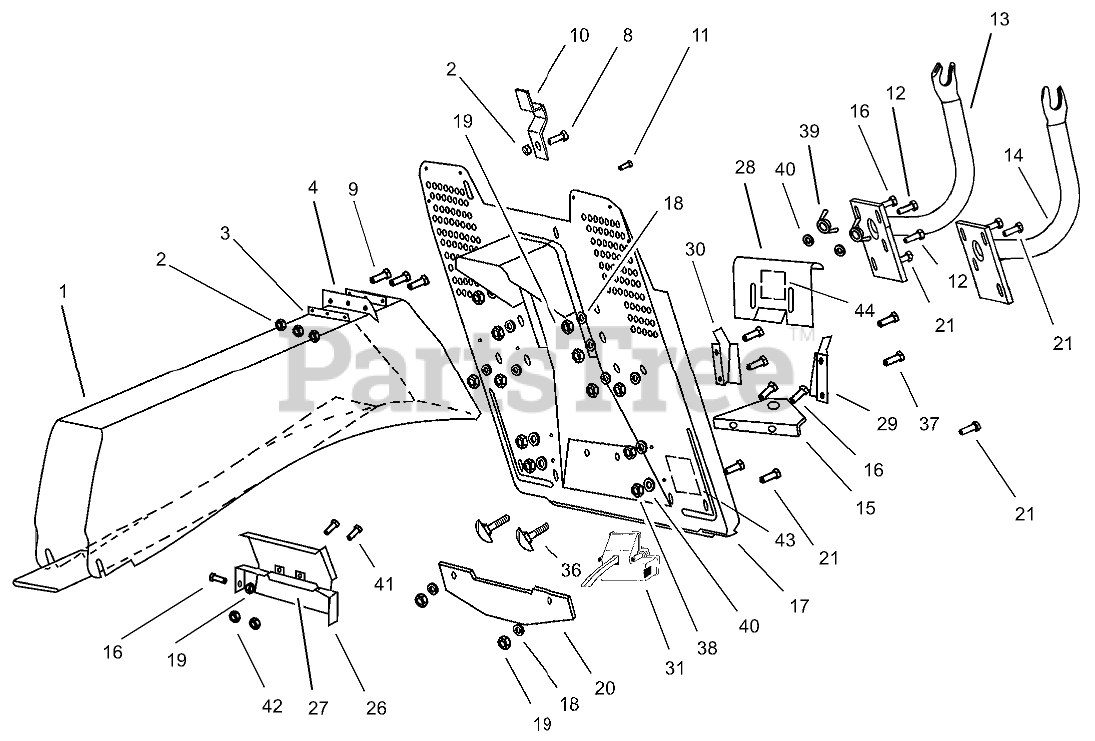

CHUTE-COLLECTOR ASSEMBLY Parts Diagram

  • Title
1

Toro 104-3054

TUNNEL

$

$

Not available

2

Toro 104-2985

NUT-HEX

$

$

Currently unavailable

3

Toro 104-3055

PLATE-SUPPORT

$

$

Currently unavailable

4

Toro 104-3056

SEAL-RUBBER

$

$

Currently unavailable

8

$

$

Currently unavailable

9

Toro 104-3058

SCREW-SFH

$

$

Currently unavailable

10

Toro 104-3059

COVER-SWITCH

$

$

Not available

11

Toro 104-3060

BOLT-CARRIAGE

$

$

Currently unavailable

12

$

$

Currently unavailable

13

Toro 104-3062

SUPPORT-COLLECTOR, RIGHT

$

$

Currently unavailable

14

Toro 104-3063

SUPPORT-COLLECTOR, LEFT

$

$

Currently unavailable

15

Toro 104-3064

HITCH-TOW

$

$

Currently unavailable

16

Toro 104-3065

SCREW-HEX

$

$

Currently unavailable

17

Toro 104-3066

COLLECTOR PLATE ASM

$

$

Currently unavailable

18

Toro 33095-00

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

19

Toro 33024-00

NUT-LOCK, NI

$0.99

$

Usually ships in 3-6 days

0

20

Toro 104-3067

SUPPORT-HITCH, TOW

$

$

Currently unavailable

21

Toro 104-3068

SCREW-HEX

$

$

Currently unavailable

26

Toro 104-3069

BRACKET-SHIELD, PROTECTIVE

$

$

Currently unavailable

27

Toro 104-3070

SHIELD-PROTECTIVE

$

$

Currently unavailable

28

Toro 104-3071

SHIELD-ADJUSTABLE

$

$

Not available

29

Toro 104-3072

CHUTE-LEFT REAR PLATE

$

$

Not available

30

Toro 104-3073

CHUTE-RIGHT REAR PLATE

$

$

Not available

31

Toro 104-3074

OVERLOAD SWITCH ASM

$

$

Currently unavailable

32

Toro 104-3075

LEVER-OVERLOAD SWITCH ACTUATION

$

$

Not available

33

Toro 104-3076

HOUSING-OVERLOAD SWITCH UPPER

$

$

Not available

34

Toro 104-3077

HOUSING-OVERLOAD SWITCH LOWER

$

$

Not available

35

Toro 104-3078

PIN-OVERLOAD SWITCH

$

$

Not available

36

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

37

Toro 33113-012

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

38

Toro 33023-00

NUT-LOCK

$0.99

$

Usually ships in 3-6 days

0

39

Toro 32103-28

NUT-WING

$6.99

$

Usually ships in 3-6 days

0

40

Toro 33093-00

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

41

Toro 104-2948

BOLT-CARRIAGE

$

$

Currently unavailable

42

Toro 87-5140

NUT-LOCK

$0.99

$

Usually ships in 3-6 days

0

43

Toro 104-3243

DECAL-BYPASS, HYDRO

$

$

Currently unavailable

44

Toro 104-2853

DECAL-POSITION, BAGGING

$

$

Currently unavailable
