74569 - Toro 52" GrandStand Stand-On Mower (SN: 290000207 - 290003000) (2009) UPPER CONTROL AND TOWER ASSEMBLY Parts Diagram

52" GrandStand Stand-On Mower

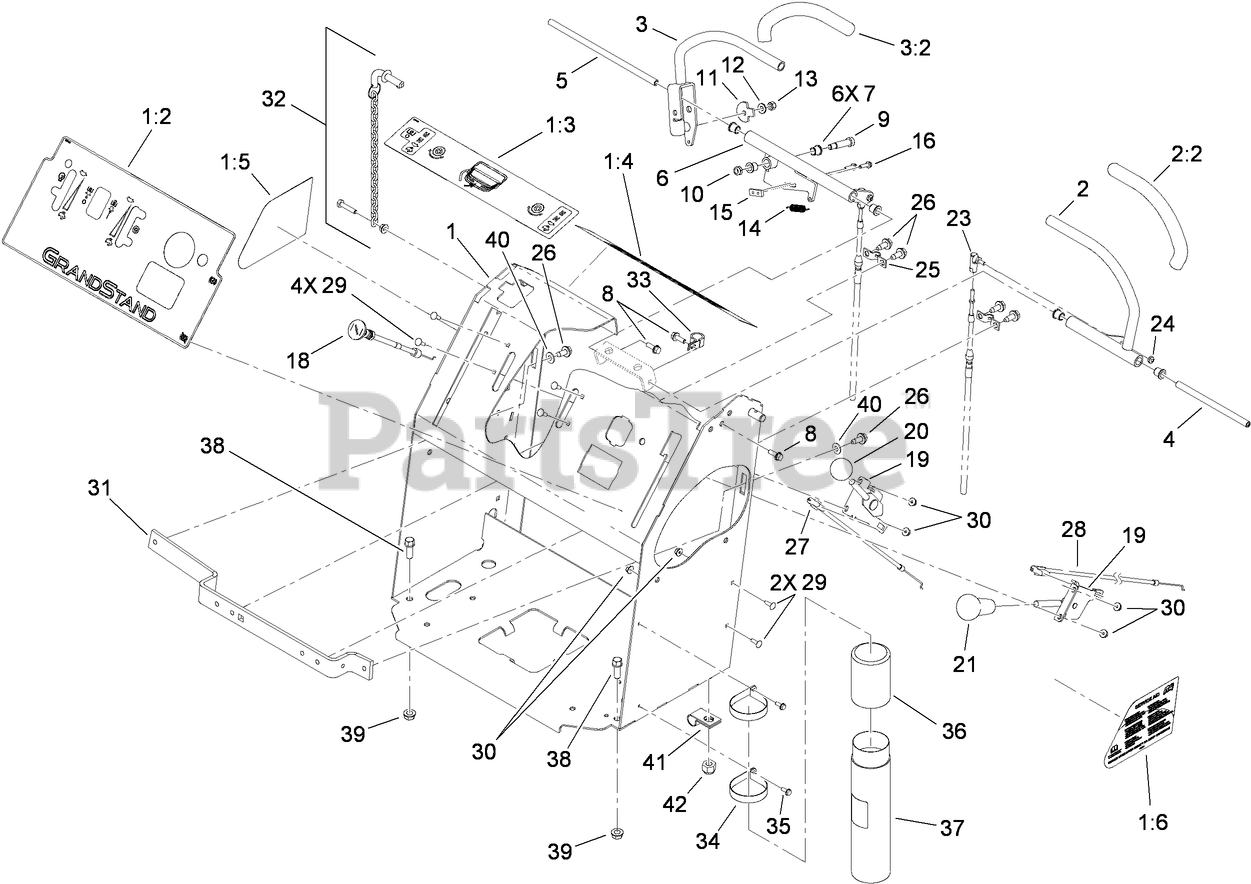

UPPER CONTROL AND TOWER ASSEMBLY Parts Diagram

  • Title

1

Toro 114-1922

CONTROL TOWER ASM

$

$

Not available

1:2

Toro 117-0453

DECAL-PANEL, CONTROL

$76.99

$

Usually ships in 3-6 days

0

1:3

Toro 117-0454

DECAL-OPC

$37.99

$

Usually ships in 3-6 days

0

1:4

Toro 117-3626

DECAL-WARNING

$33.99

$

Usually ships in 3-6 days

0

1:5

Toro 117-0456

DECAL-HOC

$23.99

$

Usually ships in 3-6 days

0

1:6

Toro 117-0485

DECAL-AID, SERVICE

$28.99

$

Usually ships in 3-6 days

0

2

Toro 114-3593

LH LEVER ASM

$164.99

$

Usually ships in 3-6 days

0

2:2

Toro 114-0241

GRIP-LEVER
(Superseded to 119-0222)

$9.49

$

Usually ships in 3-6 days

0

3

Toro 114-3594

RH LEVER ASM
(Superseded to 119-1887)

$164.99

$

Usually ships in 3-6 days

0

3:2

Toro 114-0241

GRIP-LEVER
(Superseded to 119-0222)

$9.49

$

Usually ships in 3-6 days

0

4

Toro 114-0260

SHAFT-PIVOT
(Superseded to 119-1885)

$21.99

$

Usually ships in 3-6 days

0

5

Toro 114-1904

SHAFT-PIVOT, MOTION CONTROL
(Superseded to 119-1886)

$22.99

$

Usually ships in 3-6 days

0

6

Toro 114-5302

MOTION CONTROL ASM

$163.99

$

Usually ships in 3-6 days

0

7

Toro 103-9928

BEARING

$7.99

$

In Stock, Qty 11

0

8

Toro 3234-4

SCREW-HHF

$0.99

$

In Stock, Qty 13

0

9

Toro 114-0239

SCREW-HSH

$12.99

$

In Stock, only 2 left!

0

10

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 7

0

11

Toro 114-0268

CAM-LEVER

$6.49

$

Usually ships in 3-6 days

0

12

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

13

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

14

Toro 114-0249

SPRING-EXTENSION

$13.99

$

Usually ships in 3-6 days

0

15

Toro 1-633181

PLATE-TAPPED

$6.49

$

In Stock, only 2 left!

0

16

Toro 32105-13

SCREW-HWH

$1.99

$

In Stock, Qty 5

0

18

Toro 106-9962

Control-Choke, Push / Pull

$75.99

$

In Stock, only 4 left!

0

19

Toro 110-5547

LEVER-CONTROL

$38.99

$

In Stock, only 1 left!

0

20

Toro 1-603175

KNOB-BALL

$11.99

$

In Stock, Qty 8

0

21

Toro 99-7981

KNOB-GRIP, SOFT

$

$

Not available

23

Toro 2411-38

JOINT-BALL

$22.99

$

Usually ships in 3-6 days

0

24

Toro 3296-27

NUT-LOCK, NI

$1.49

$

In Stock, Qty 10

0

25

Toro 93-2279

CLAMP-CABLE

$8.99

$

Usually ships in 3-6 days

0

26

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

27

Toro 114-1966

CABLE-CONTROL

$38.99

$

In Stock, only 2 left!

0

28

Toro 114-1950

CABLE-SPEED
(Superseded to 117-9706)

$38.99

$

Usually ships in 3-6 days

0

29

Toro 1-807533

BOLT-CARR

$1.49

$

In Stock, Qty 6

0

30

Toro 3290-148

NUT-HF

$0.99

$

In Stock, Qty 11

0

31

Toro 114-1921-01

BAR-CABLE

$

$

Not available

32

Toro 114-0409

HOC PIN ASM

$51.99

$

In Stock, only 4 left!

0

33

Toro 2412-87

CLAMP-CABLE

$3.49

$

Usually ships in 3-6 days

0

34

Toro 2412-120

CLAMP-R

$7.99

$

Usually ships in 3-6 days

0

35

Toro 32144-1

SCREW-TAPTITE

$3.49

$

In Stock, Qty 8

0

36

Toro 104-7048

CAP-HOUSING

$5.49

$

Usually ships in 3-6 days

0

37

Toro 104-7050

TUBE-MANUAL

$9.49

$

Usually ships in 3-6 days

0

38

Toro 92-1624

SCREW-HWH
(Superseded to 95-1726)

$2.99

$

In Stock, Qty 20+

0

39

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

40

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

41

Toro 2412-138

R-CLAMP

$1.99

$

Usually ships in 3-6 days

0

42

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0
