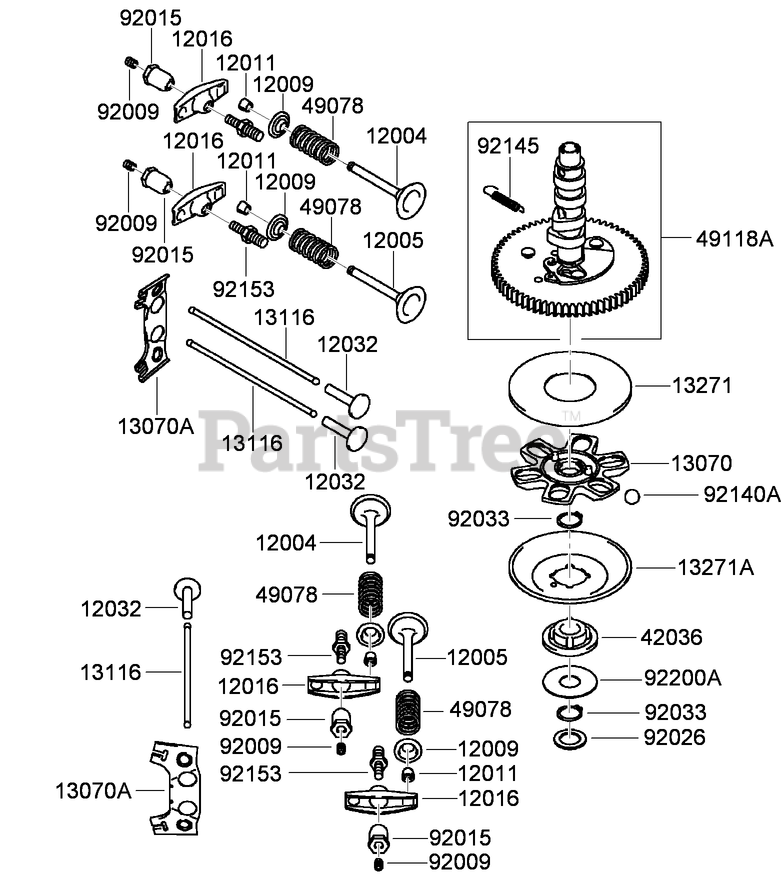

74569 - Toro 52" GrandStand Stand-On Mower (SN: 290000001 - 290000206) (2009) VALVE AND CAMSHAFT ASSEMBLY KAWASAKI FH680V-GS13 Parts Diagram

52" GrandStand Stand-On Mower

VALVE AND CAMSHAFT ASSEMBLY KAWASAKI FH680V-GS13 Parts Diagram

  • Title

12004

Kawasaki 12004-7002

Valve-Intake

Note: Obtain parts from www.kawpowerepc.com

$18.99

$

In Stock, only 2 left!

0

12005

Kawasaki 12005-7004

VALVE-EXHAUST
(Superseded to 12005-7002)

Note: Obtain parts from www.kawpowerepc.com

$43.99

$

In Stock, Qty 20+

0

12009

Kawasaki 12009-7001

RETAINER-SPRING, VALVE

Note: Obtain parts from www.kawpowerepc.com

$2.49

$

In Stock, Qty 5

0

12011

Kawasaki 12011-2056

Collet

Note: Obtain parts from www.kawpowerepc.com

$2.99

$

In Stock, Qty 20+

0

12016

Kawasaki 12016-7007

ARM-ROCKER
(Superseded to 12016-7002)

Note: Obtain parts from www.kawpowerepc.com

$7.99

$

In Stock, Qty 20+

0

12032

Kawasaki 12032-7001

Tappet

Note: Obtain parts from www.kawpowerepc.com

$8.99

$

In Stock, only 3 left!

0

13070

Kawasaki 13070-7004

Guide
(Superseded to 13070-7002)

Note: Obtain parts from www.kawpowerepc.com

$5.99

$

In Stock, only 2 left!

0

13070A

Kawasaki 13070-7007

Guide
(Superseded to 13070-7003)

Note: Obtain parts from www.kawpowerepc.com

$4.99

$

Usually ships in 2-5 days

0

13116

Kawasaki 13116-7002

Rod-Push
(Superseded to 13116-7001)

Note: Obtain parts from www.kawpowerepc.com

$4.99

$

In Stock, Qty 20+

0

13271

Kawasaki 13271-7007

Plate
(Superseded to 13270-7003)

Note: Obtain parts from www.kawpowerepc.com

$5.49

$

In Stock, only 3 left!

0

13271A

Kawasaki 13271-7021

PLATE-GOVERNOR
(Superseded to 13270-7002)

Note: Obtain parts from www.kawpowerepc.com

$5.49

$

In Stock, Qty 13

0

42036

Kawasaki 42036-7010

SLEEVE
(Superseded to 42036-7009)

Note: Obtain parts from www.kawpowerepc.com

$5.99

$

In Stock, only 1 left!

0

49078

Kawasaki 49078-7002

Spring-Valve, Engine (INTAKE)

Note: Obtain parts from www.kawpowerepc.com

$6.99

$

In Stock, only 4 left!

0

49118A

Kawasaki 49118-7017

CAMSHAFT

Note: Obtain parts from www.kawpowerepc.com

$96.99

$

Usually ships in 2-5 days

0

92009

Kawasaki 92009-2341

Screw

Note: Obtain parts from www.kawpowerepc.com

$2.49

$

In Stock, only 3 left!

0

92015

Kawasaki 92015-2253

Nut

Note: Obtain parts from www.kawpowerepc.com

$4.49

$

In Stock, only 4 left!

0

92026

Kawasaki 92026-7015

SPACER (16.3X25X1.37)

Note: Obtain parts from www.kawpowerepc.com

$1.99

$

Usually ships in 2-5 days

0

92033

Kawasaki 92033-7001

Ring-Snap
(Superseded to 92033-0727)

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, only 2 left!

0

92140A

Kawasaki 92140-7005

BALL

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

92145

Kawasaki 92145-7001

Spring
(Superseded to 921451653)

Note: Obtain parts from www.kawpowerepc.com

$1.49

$

In Stock, only 4 left!

0

92153

Kawasaki 92153-7019

Bolt

Note: Obtain parts from www.kawpowerepc.com

$2.49

$

Usually ships in 2-5 days

0

92200A

Kawasaki 92200-7009

Washer (16X42X0.91)
(Superseded to 922000945)

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, Qty 11

0
