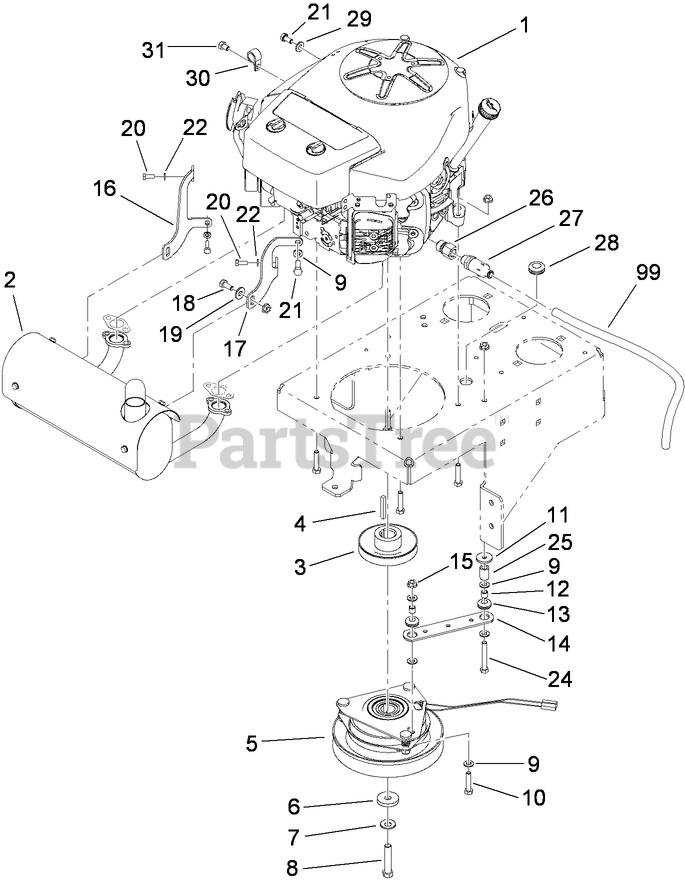

74569 - Toro 52" GrandStand Stand-On Mower (SN: 290000001 - 290000206) (2009) ENGINE ASSEMBLY Parts Diagram

52" GrandStand Stand-On Mower

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 117-3577

ENGINE-KAWASAKI, FH680V-GS13

$6980.99

$

Usually ships in 3-6 days

0

2

Toro 117-0416

MUFFLER-ENGINE

$601.99

$

Usually ships in 3-6 days

0

3

Toro 112-7067

PULLEY

$168.99

$

Usually ships in 3-6 days

0

4

Toro 608006

KEY-SQUARE

$5.49

$

In Stock, only 1 left!

0

5

Toro 105-2635

CLUTCH / BRAKE ASM

$576.99

$

In Stock, only 1 left!

0

6

Toro 107-4136

WASHER
(Superseded to 1-543610)

$6.49

$

In Stock, Qty 17

0

7

Toro 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 20+

0

8

Toro 3212-9

SCREW-HH

$12.99

$

In Stock, only 2 left!

0

9

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

10

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

11

Toro 1-613235

WASHER

$1.99

$

In Stock, Qty 11

0

12

Toro 1-633545

SPACER

$2.99

$

In Stock, Qty 20+

0

13

Toro 1-633630

GROMMET

$5.99

$

In Stock, Qty 8

0

14

Toro 1-633543-03

STRAP-CLUTCH, BRAKE

$14.99

$

In Stock, only 2 left!

0

15

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

16

Toro 103-2993-03

Bracket-Muffler, LH

$60.99

$

Usually ships in 3-6 days

0

17

Toro 103-2994-03

Bracket-Muffler, RH

$32.99

$

Usually ships in 3-6 days

0

18

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

19

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

20

Toro 33113-016

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

21

Toro 33114-016

SCREW-HH

$0.99

$

In Stock, only 4 left!

0

22

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

24

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

25

Toro 104-6373

TUBE-RETAINER

$15.99

$

Usually ships in 3-6 days

0

26

Toro 103-1966

Adapter

$18.99

$

In Stock, Qty 6

0

27

Toro 92-6877

VALVE-DRAIN, OIL

$41.99

$

In Stock, only 4 left!

0

28

Toro 112-7069

GROMMET

$3.49

$

Usually ships in 3-6 days

0

29

Toro 33094-00

WASHER-PLAIN

$0.99

$

In Stock, only 2 left!

0

30

Toro 2412-87

CLAMP-CABLE

$3.49

$

Usually ships in 3-6 days

0

31

Toro 46-8090

SCREW-PLASTITE

$

$

Not available

99

Toro 103-1964

HOSE-DRAIN, OIL

$11.99

$

In Stock, only 2 left!

0
