74569 - Toro 52" GrandStand Stand-On Mower (SN: 290000001 - 290000206) (2009) COOLING EQUIPMENT ASSEMBLY KAWASAKI FH680V-GS13 Parts Diagram

52" GrandStand Stand-On Mower

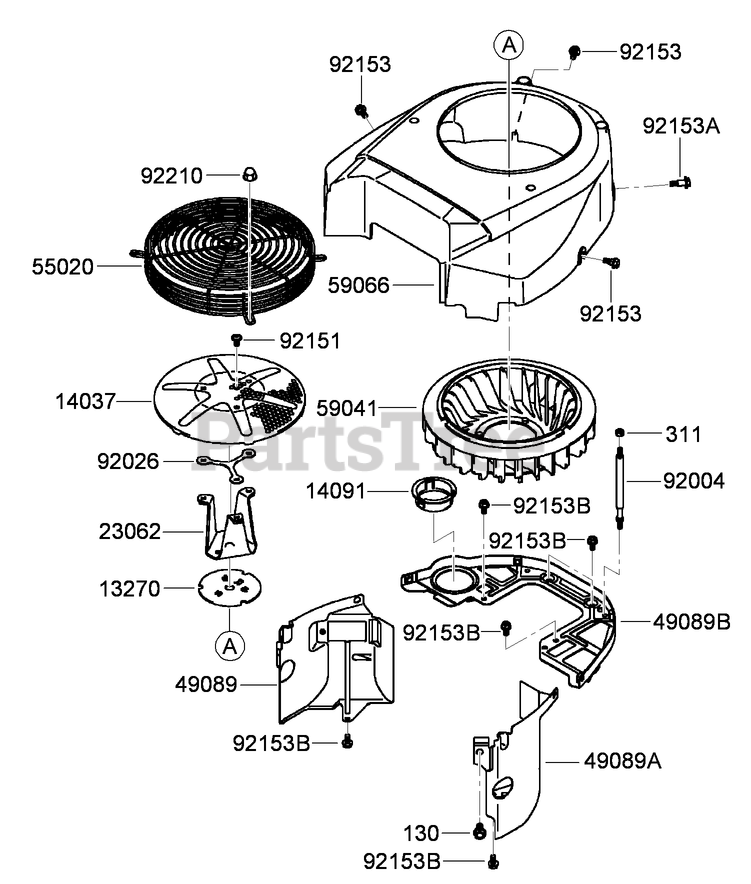

COOLING EQUIPMENT ASSEMBLY KAWASAKI FH680V-GS13 Parts Diagram

  • Title
130

Kawasaki 130AA0816

BOLT-FLANGED (8X16)
(Superseded to 130B0816)

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, Qty 20+

0

311

Kawasaki 311AA0600

NUT-HEX (6MM)
(Superseded to 16011-002)

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, Qty 20+

0

13270

Kawasaki 13270-7007

Plate

Note: Obtain parts from www.kawpowerepc.com

$5.99

$

In Stock, Qty 20+

0

14037

Kawasaki 14037-7008-9H

Screen
(Superseded to 14037-7008)

Note: Obtain parts from www.kawpowerepc.com

$35.99

$

In Stock, Qty 20+

0

14091

Kawasaki 14091-7002

Cover

Note: Obtain parts from www.kawpowerepc.com

$3.49

$

In Stock, Qty 11

0

23062

Kawasaki 23062-7005

Bracket

Note: Obtain parts from www.kawpowerepc.com

$12.99

$

In Stock, Qty 20+

0

49089

Kawasaki 49089-7004

Shroud-Engine

Note: Obtain parts from www.kawpowerepc.com

$27.99

$

Usually ships in 2-5 days

0

49089A

Kawasaki 49089-7005

Shroud-Engine

Note: Obtain parts from www.kawpowerepc.com

$29.99

$

Usually ships in 2-5 days

0

49089B

Kawasaki 49089-7049

SHROUD-ENGINE
(Superseded to 49089-7006)

Note: Obtain parts from www.kawpowerepc.com

$34.99

$

In Stock, Qty 8

0

55020

Kawasaki 55020-7007

Guard
(Superseded to 55020-7002)

Note: Obtain parts from www.kawpowerepc.com

$53.99

$

In Stock, Qty 13

0

59041

Kawasaki 59041-7003

Fan

Note: Obtain parts from www.kawpowerepc.com

$22.99

$

In Stock, Qty 20+

0

59066

Kawasaki 59066-7004

Housing-Fan

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

92004

Kawasaki 92004-7006

Stud
(Superseded to 92004-7025)

Note: Obtain parts from www.kawpowerepc.com

$6.99

$

In Stock, Qty 20+

0

92026

Kawasaki 92026-7007

Spacer

Note: Obtain parts from www.kawpowerepc.com

$5.99

$

In Stock, Qty 20+

0

92151

Kawasaki 92151-7012

BOLT (6X12)
(Superseded to 92154-2687)

Note: Obtain parts from www.kawpowerepc.com

$1.49

$

In Stock, Qty 20+

0

92153

Kawasaki 92153-7007

Bolt

Note: Obtain parts from www.kawpowerepc.com

$4.49

$

In Stock, Qty 20+

0

92153A

Kawasaki 92153-7008

Bolt

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

92153B

Kawasaki 92153-7043

BOLT (6X12)

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

92210

Kawasaki 92210-0003

Nut

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, Qty 20+

0
