74568 - Toro 48" GrandStand Stand-On Mower (SN: 290000001 - 290000205) (2009) STARTER ASSEMBLY KAWASAKI FH680V-GS13 Parts Diagram

48" GrandStand Stand-On Mower

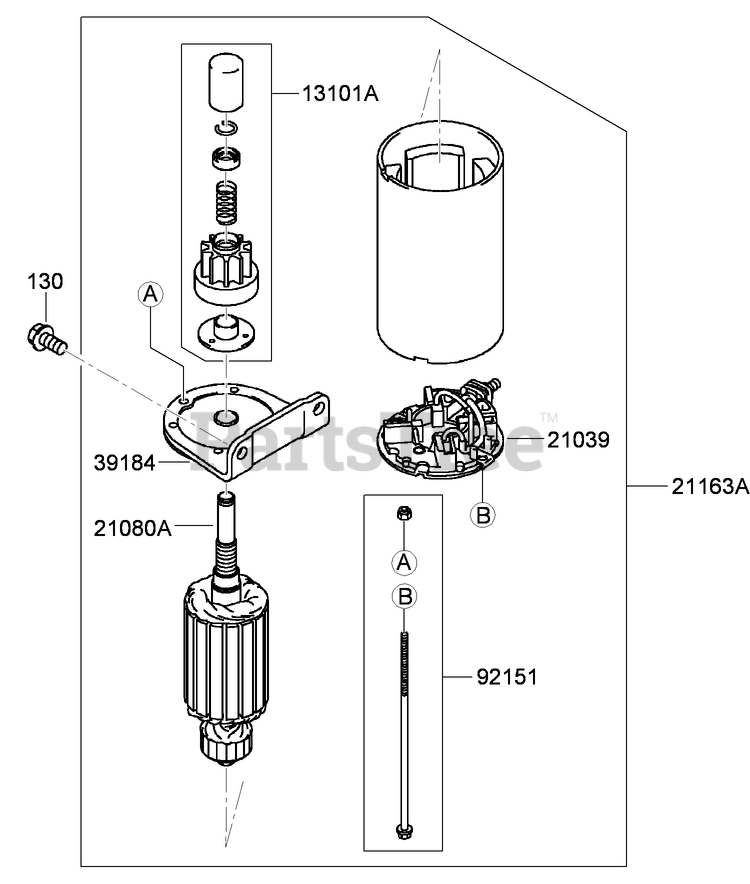

STARTER ASSEMBLY KAWASAKI FH680V-GS13 Parts Diagram

  • Title
130

Kawasaki 130AA0816

BOLT-FLANGED (8X16)
(Superseded to 130B0816)

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, Qty 20+

0

13101A

Kawasaki 13101-7008

GEAR ASM
(Superseded to 99999-7080)

Note: Obtain parts from www.kawpowerepc.com

$258.99

$

In Stock, Qty 15

0

21039

Kawasaki 21039-7004

Brush
(Superseded to 99999-7080)

Note: Obtain parts from www.kawpowerepc.com

$258.99

$

In Stock, Qty 15

0

21080A

Kawasaki 21080-7005

ARMATURE
(Superseded to 21080-7001)

Note: Obtain parts from www.kawpowerepc.com

$213.99

$

Usually ships in 2-5 days

0

21163A

Toro 21163-7029

STARTER-ELECTRIC

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

39184

Kawasaki 39184-7004

BRACKET ASM
(Superseded to 39184-7001)

Note: Obtain parts from www.kawpowerepc.com

$29.99

$

Usually ships in 2-5 days

0

92151

Kawasaki 92151-7013

Bolt

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available
