74568 - Toro 48" GrandStand Stand-On Mower (SN: 290000001 - 290000205) (2009) FUEL TANK AND VALVE ASSEMBLY KAWASAKI FH680V-GS13 Parts Diagram

48" GrandStand Stand-On Mower

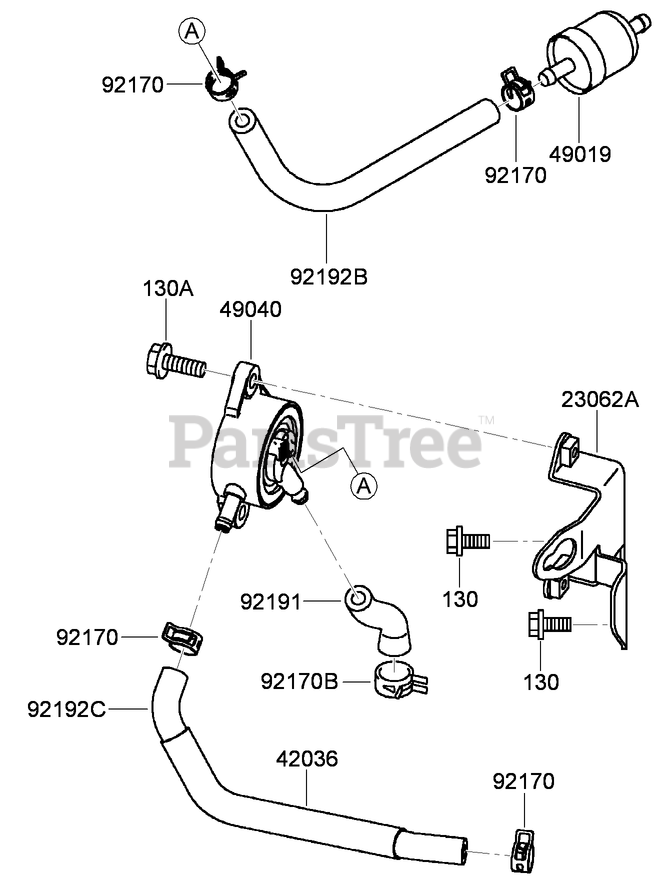

FUEL TANK AND VALVE ASSEMBLY KAWASAKI FH680V-GS13 Parts Diagram

  • Title

130

Kawasaki 130AA0616

BOLT-FLANGED (6X16)
(Superseded to 130B0616)

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, Qty 20+

0

130A

Kawasaki 130AA0620

BOLT-FLANGED (6X20)
(Superseded to 130B0620)

Note: Obtain parts from www.kawpowerepc.com

$3.49

$

In Stock, Qty 20+

0

23062A

Kawasaki 23062-7019-9H

BRACKET
(Superseded to 23062-7004-9H)

Note: Obtain parts from www.kawpowerepc.com

$10.99

$

In Stock, Qty 10

0

42036

Kawasaki 42036-7008

SLEEVE

Note: Obtain parts from www.kawpowerepc.com

$1.99

$

In Stock, Qty 5

0

49019

Kawasaki 49019-7001

Filter-Fuel
(Superseded to 49019-0027)

Note: Obtain parts from www.kawpowerepc.com

$9.99

$

In Stock, Qty 20+

0

49040

Kawasaki 49040-7001

Pump-Fuel
(Superseded to 49040-2075)

Note: Obtain parts from www.kawpowerepc.com

$37.99

$

Usually ships in 2-5 days

0

92170

Kawasaki 92170-2009

CLAMP

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

92170B

Kawasaki 92170-7003

Clamp

Note: Obtain parts from www.kawpowerepc.com

$1.49

$

In Stock, Qty 20+

0

92191

Kawasaki 92191-7027

Tube

Note: Obtain parts from www.kawpowerepc.com

$3.99

$

In Stock, Qty 20+

0

92192B

Kawasaki 92192-7135

TUBE (6.35X12.7X160)
(Superseded to 92192-7170)

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

92192C

Kawasaki 92192-7138

TUBE (6.35X12.7X200)
(Superseded to 92192-7174)

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available
