74568 TE - Toro 122cm GrandStand Stand-On Mower (SN: 314000001 - 314999999) (2014) DECK ASSEMBLY Parts Diagram

122cm GrandStand Stand-On Mower

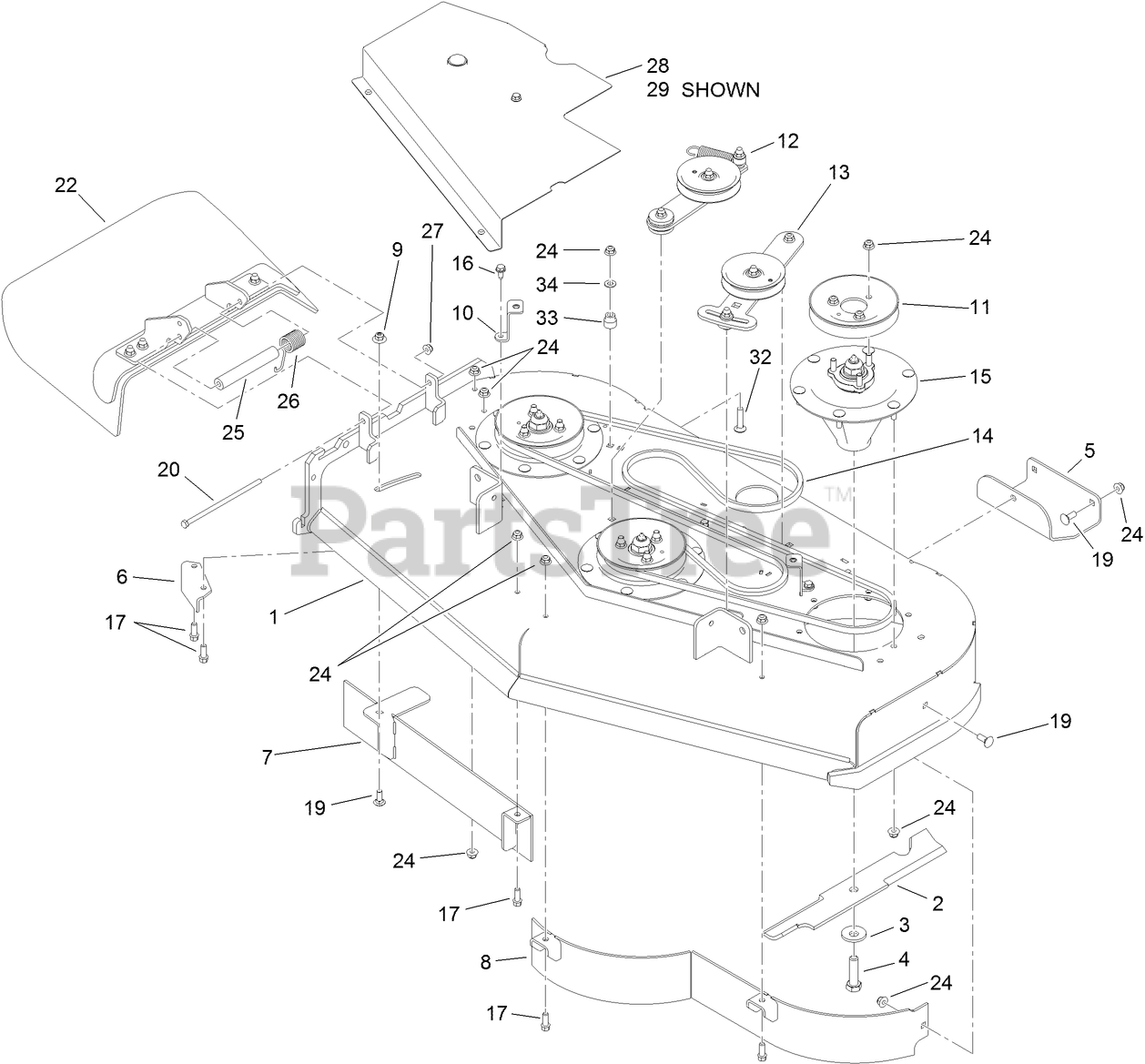

DECK ASSEMBLY Parts Diagram

  • Title

1

Toro 120-6403

DECK ASM

$2214.99

$

Usually ships in 3-6 days

0

2

Toro 107-3192-03

BLADE-16.5 INCH (HIGH FLOW)

$27.99

$

In Stock, only 4 left!

0

3

Toro 103-0865

Washer-Blade Bolt, Heavy

$5.99

$

In Stock, Qty 19

0

4

Toro 51-4060

SCREW-BLADE

$7.99

$

In Stock, Qty 20+

0

5

Toro 114-1908-01

SKID

$82.99

$

Usually ships in 3-6 days

0

6

Toro 107-8541-01

BAFFLE-DISCHARGE

$20.99

$

Usually ships in 3-6 days

0

7

Toro 121-1790-01

BAFFLE

$127.99

$

Usually ships in 3-6 days

0

8

Toro 117-0410-01

48 INCH BAFFLE ASM

$263.99

$

Usually ships in 3-6 days

0

9

Toro 109-6658

NUT-FLANGE, NI

$1.49

$

In Stock, only 4 left!

0

10

Toro 119-7272-01

BELT COVER BRACKET ASM

$46.99

$

Usually ships in 3-6 days

0

11

Toro 120-6432

PULLEY

$56.99

$

Usually ships in 3-6 days

0

12

Toro 120-6410

IDLER ARM ASM

$141.99

$

Usually ships in 3-6 days

0

13

Toro 117-0446

IDLER ADJUST ASM

$188.99

$

In Stock, only 1 left!

0

14

Toro 114-0453

BELT-V

$64.99

$

In Stock, Qty 6

0

15

Toro 119-8560

SPINDLE ASM

$532.99

$

In Stock, Qty 11

0

16

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

17

Toro 92-1624

SCREW-HWH
(Superseded to 95-1726)

$2.99

$

In Stock, Qty 20+

0

19

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

20

Toro 322-50

SCREW-HH

$6.49

$

In Stock, only 4 left!

0

22

Toro 120-2451

DEFLECTOR ASM

$232.99

$

Usually ships in 3-6 days

0

24

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

25

Toro 105-4622

SPACER

$10.99

$

In Stock, only 3 left!

0

26

Toro 108-4052

SPRING-TORSION

$23.99

$

In Stock, only 1 left!

0

27

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

28

Toro 119-7268

LH BELT COVER ASM

$317.99

$

Usually ships in 3-6 days

0

29

Toro 119-7269

RH BELT COVER ASM

$317.99

$

Usually ships in 3-6 days

0

32

Toro 3231-5

SCREW-CARR

$1.49

$

In Stock, only 2 left!

0

33

Toro 1-603496

BUSHING-IDLER

$5.49

$

In Stock, Qty 20+

0

34

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0
