74568 TE - Toro 122cm GrandStand Stand-On Mower (SN: 313000001 - 313999999) (2013) PARKING BRAKE ASSEMBLY Parts Diagram

122cm GrandStand Stand-On Mower

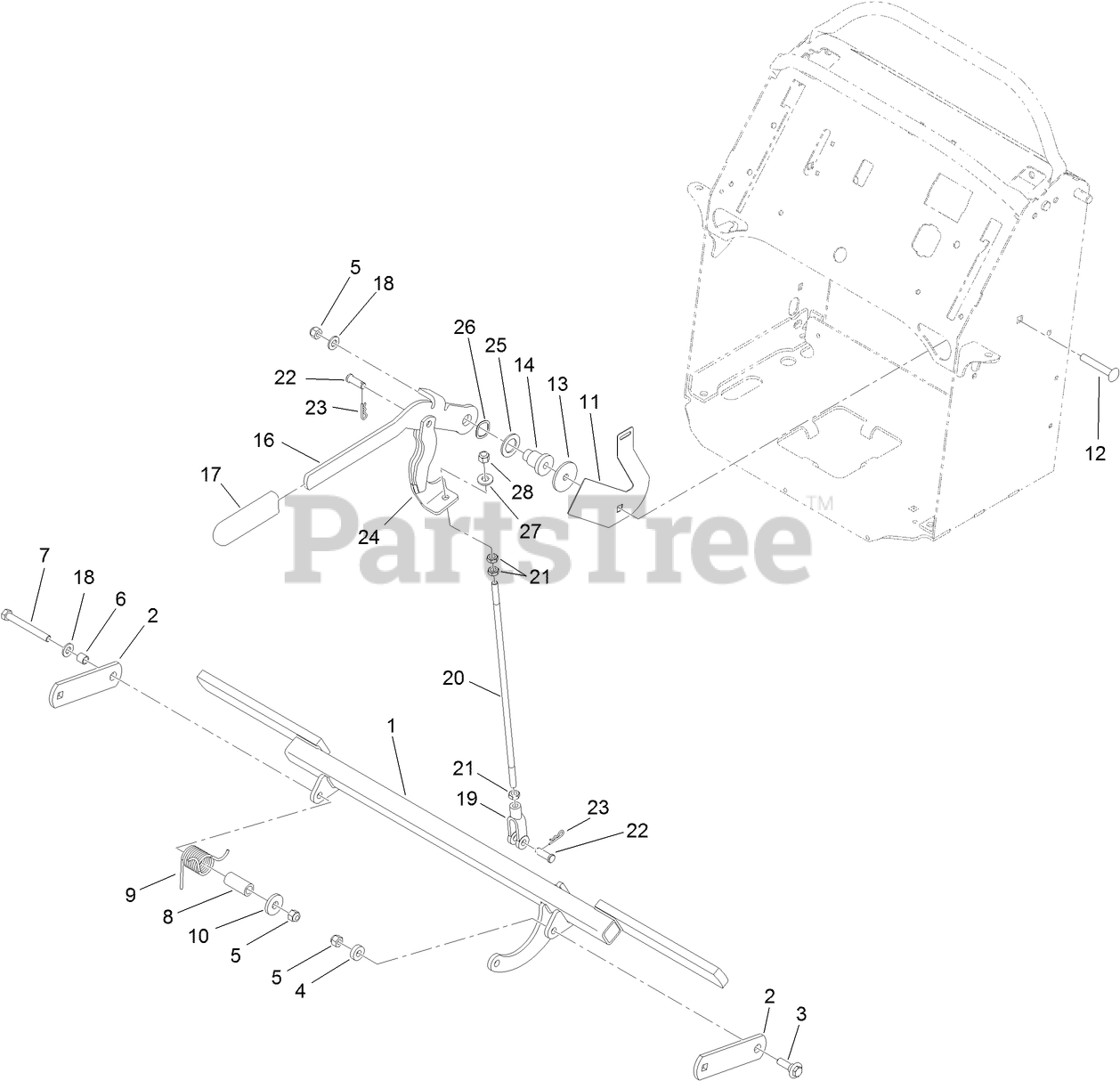

PARKING BRAKE ASSEMBLY Parts Diagram

  • Title

1

Toro 119-8730-03

BAR-BRAKE

$250.99

$

Usually ships in 3-6 days

0

2

Toro 114-5186-01

SUPPORT-BRAKE

$20.99

$

Usually ships in 3-6 days

0

3

Toro 614672

SCREW-SHOULDER, HWH

$2.99

$

In Stock, only 4 left!

0

4

Toro 5-0652

SPACER

$7.99

$

In Stock, Qty 5

0

5

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

6

Toro 117-9684

SPACER

$5.99

$

Usually ships in 3-6 days

0

7

Toro 323-20

SCREW-HH

$3.99

$

In Stock, Qty 12

0

8

Toro 117-9683

SPACER

$8.49

$

Usually ships in 3-6 days

0

9

Toro 117-9682

SPRING-TORSION

$6.49

$

In Stock, only 1 left!

0

10

Toro 1-373034

WASHER

$3.49

$

In Stock, Qty 20+

0

11

Toro 117-0452-03

PLATE-SWITCH, BRAKE

$27.99

$

Usually ships in 3-6 days

0

12

Toro 3231-44

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

13

Toro 63-7400

WASHER-REBOUND

$3.49

$

In Stock, Qty 20+

0

14

Toro 106-3214

MOUNT-PULLEY

$12.99

$

In Stock, only 3 left!

0

16

Toro 117-5759-03

LEVER-BRAKE

$41.99

$

Usually ships in 3-6 days

0

17

Toro 1-633268

GRIP-LEVER

$14.99

$

In Stock, only 3 left!

0

18

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

19

Toro 1-633131

YOKE-LINKAGE, BRAKE

$15.99

$

In Stock, Qty 12

0

20

Toro 119-7244

ROD-BRAKE

$27.99

$

Usually ships in 3-6 days

0

21

Toro 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 17

0

22

Toro 283-2

PIN-CLEVIS

$13.99

$

In Stock, only 2 left!

0

23

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

24

Toro 119-8780-03

ARM-BRAKE

$59.99

$

Usually ships in 3-6 days

0

25

Toro 1-303007

WASHER

$5.49

$

In Stock, Qty 13

0

26

Toro 106-5335

Washer-Wave
(Superseded to 119-4164)

$3.49

$

In Stock, only 3 left!

0

27

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

28

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0
