74568 TE - Toro 122cm GrandStand Stand-On Mower (SN: 313000001 - 313999999) (2013) ELECTRICAL ASSEMBLY Parts Diagram

122cm GrandStand Stand-On Mower

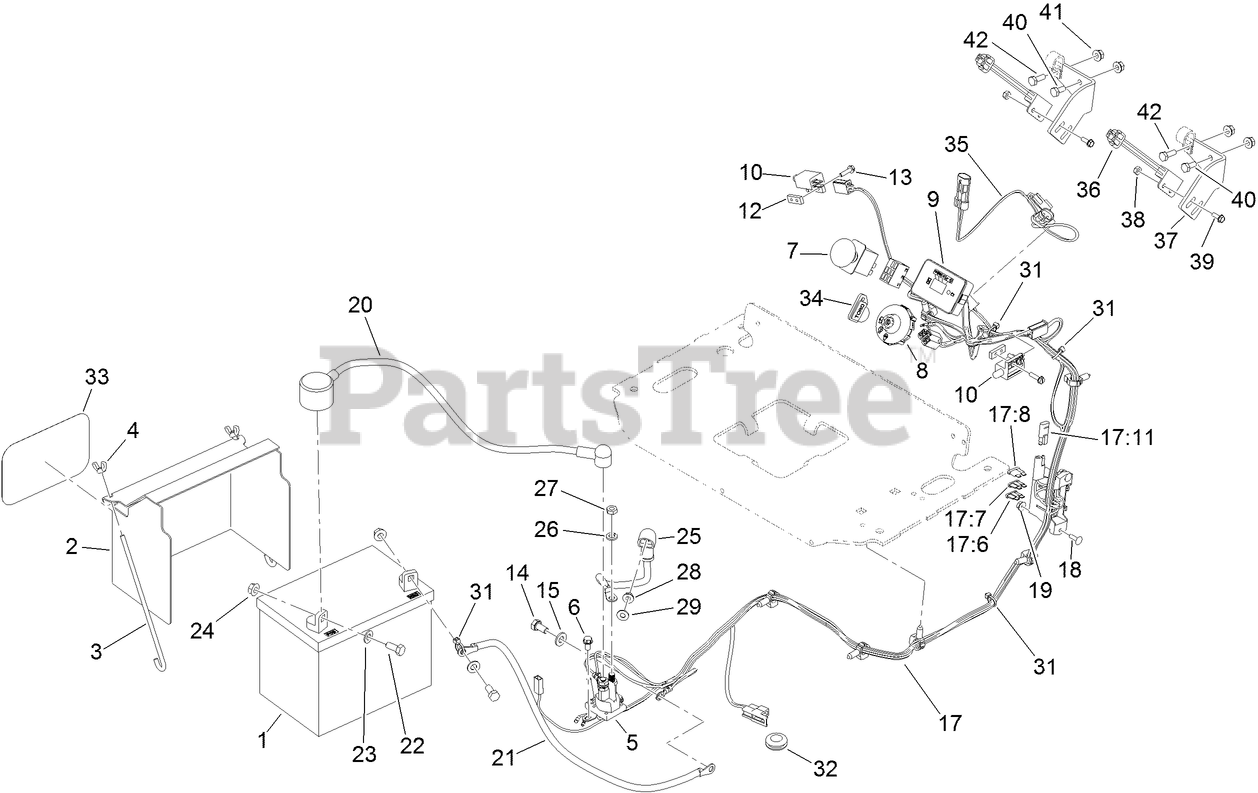

ELECTRICAL ASSEMBLY Parts Diagram

  • Title

1

Toro 104-8162

BATTERY-DRY

$

$

Not available

2

Toro 117-0543-01

COVER-BATTERY

$98.99

$

Usually ships in 3-6 days

0

3

Toro 1-633651

BOLT-HOLDDOWN

$7.99

$

In Stock, Qty 20+

0

4

Toro 1-543792

WINGNUT

$6.49

$

In Stock, Qty 14

0

5

Toro 117-1197

SOLENOID

$45.99

$

In Stock, Qty 20+

0

6

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

7

Toro 114-0279

SWITCH-PTO, ON-ON-(ON)

$59.99

$

In Stock, Qty 18

0

8

Toro 117-2222

SWITCH-IGNITION
(Superseded to 137-4101)

$34.99

$

In Stock, Qty 19

0

9

Toro 117-3886

MODULE-HOUR METER

$215.99

$

In Stock, only 1 left!

0

10

Toro 1-513152

SWITCH-CLOSED, NORMALLY

$13.99

$

In Stock, Qty 16

0

12

Toro 1-633181

PLATE-TAPPED

$6.49

$

In Stock, Qty 12

0

13

Toro 32105-13

SCREW-HWH

$1.99

$

In Stock, Qty 5

0

14

Toro 33114-016

SCREW-HH

$0.99

$

In Stock, only 4 left!

0

15

Toro 33094-00

WASHER-PLAIN

$0.99

$

In Stock, only 2 left!

0

17

Toro 116-2662

HARNESS-WIRING

$270.99

$

Usually ships in 3-6 days

0

17:6

Toro 109103

FUSE-BLADE, 30 AMP

$6.99

$

In Stock, Qty 6

0

17:7

Toro 109102

FUSE-BLADE, 25 AMP

$5.99

$

In Stock, Qty 17

0

17:8

Toro 218-578

FUSE-BLADE, 10 AMP

$2.99

$

In Stock, Qty 6

0

17:11

Toro 116-0053

CAP-PLUG

$39.99

$

Usually ships in 3-6 days

0

18

Toro 1-807533

BOLT-CARR

$1.49

$

In Stock, Qty 6

0

19

Toro 3290-148

NUT-HF

$0.99

$

In Stock, Qty 11

0

20

Toro 115-3864

CABLE-BATTERY, POSITIVE

$30.99

$

In Stock, Qty 7

0

21

Toro 105-0836

CABLE-BATTERY, BLACK

$20.99

$

Usually ships in 3-6 days

0

22

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

23

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

24

Toro 109-5715

NUT-HHF, SMOOTH

$1.49

$

Usually ships in 3-6 days

0

25

Toro 106-8268

CABLE-BATTERY, RED

$37.99

$

Usually ships in 3-6 days

0

26

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

27

Toro 3220-2

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

28

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

29

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

31

Toro 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

32

Toro 117-2781

GROMMET

$7.99

$

Usually ships in 3-6 days

0

33

Toro 68-3640

DECAL

$20.99

$

In Stock, Qty 20+

0

34

Toro 63-8360

KEY-IGNITION

$5.99

$

In Stock, Qty 20+

0

35

Toro 119-8729

HARNESS-WIRE, NEUTRAL SWITCH

$63.99

$

In Stock, only 1 left!

0

36

Toro 105-0023

SWITCH-PROXIMITY

$143.99

$

In Stock, only 1 left!

0

37

Toro 119-8503-01

BRACKET-MOUNT, SWITCH

$18.99

$

Usually ships in 3-6 days

0

38

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

39

Toro 32105-23

SCREW

$1.49

$

In Stock, only 3 left!

0

40

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

41

Toro 32128-32

NUT-HHF

$2.99

$

In Stock, Qty 20+

0

42

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+
