74568 TE - Toro 122cm GrandStand Stand-On Mower (SN: 313000001 - 313999999) (2013) CONTROL ASSEMBLY Parts Diagram

122cm GrandStand Stand-On Mower

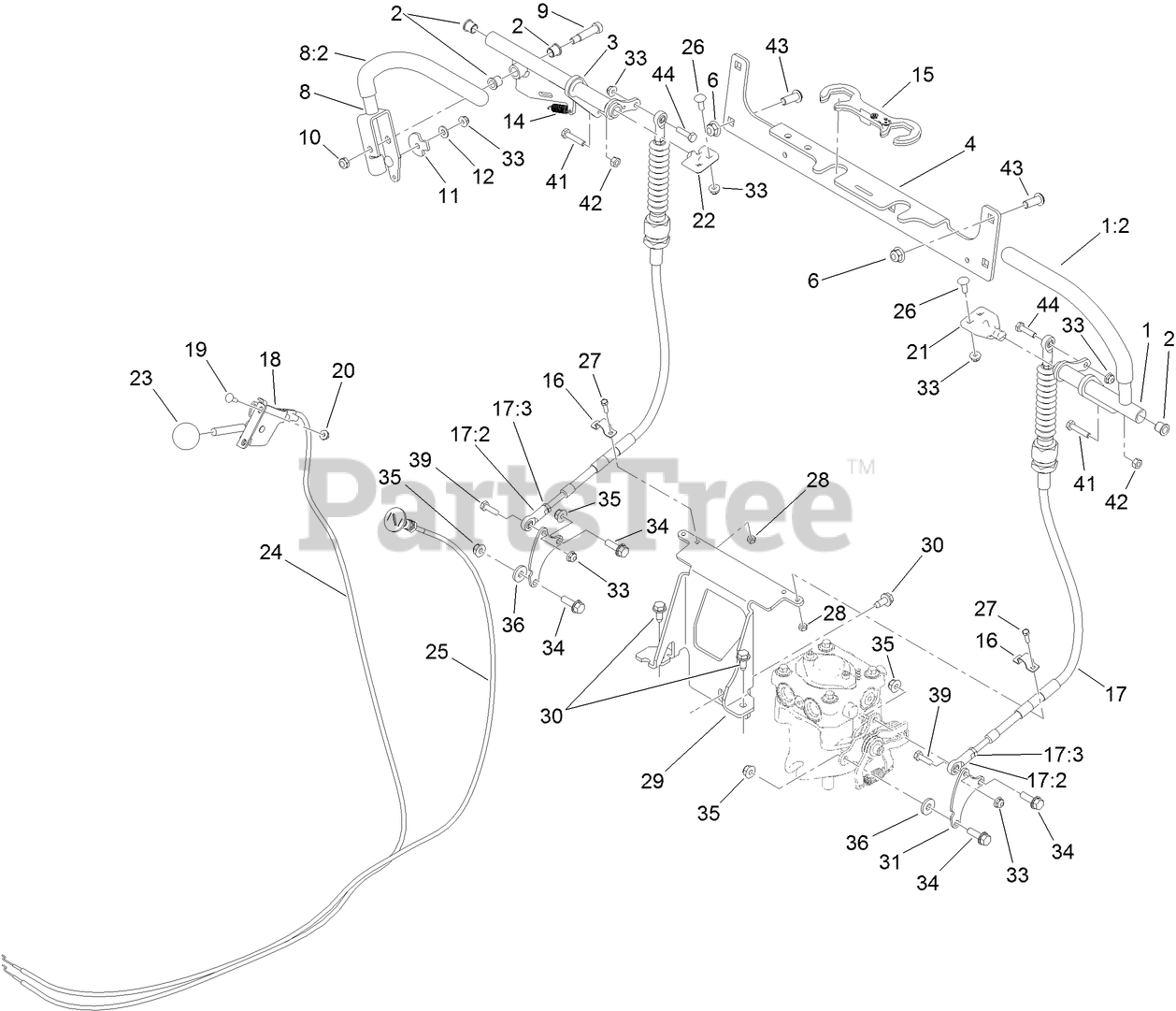

CONTROL ASSEMBLY Parts Diagram

  • Title

1

Toro 121-7993

LH LEVER ASM

$212.99

$

Usually ships in 3-6 days

0

1:2

Toro 119-0222

GRIP

$9.49

$

Usually ships in 3-6 days

0

2

Toro 103-9928

BEARING

$7.99

$

In Stock, Qty 11

0

3

Toro 121-7992

CONTROL-MOTION, RH

$239.99

$

Usually ships in 3-6 days

0

4

Toro 119-7359-01

BRACKET-CROSS

$66.99

$

Usually ships in 3-6 days

0

6

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

8

Toro 119-1887

LEVER-MOTION, RH

$169.99

$

Usually ships in 3-6 days

0

8:2

Toro 119-0222

GRIP

$9.49

$

Usually ships in 3-6 days

0

9

Toro 114-0239

SCREW-HSH

$12.99

$

In Stock, only 2 left!

0

10

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 8

0

11

Toro 114-0268

CAM-LEVER

$6.49

$

Usually ships in 3-6 days

0

12

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

14

Toro 114-0249

SPRING-EXTENSION

$13.99

$

Usually ships in 3-6 days

0

15

Toro 120-8372

LOCK-CABLE

$20.99

$

Usually ships in 3-6 days

0

16

Toro 119-7370

CLAMP

$7.49

$

In Stock, only 2 left!

0

17

Toro 119-7366

CABLE ASM

$271.99

$

In Stock, only 1 left!

0

17:2

Toro 119-7379

ROD END-BALL JOINT

$14.99

$

In Stock, only 3 left!

0

17:3

Toro 3220-1

NUT-JAM

$1.49

$

In Stock, only 2 left!

0

18

Toro 110-5547

LEVER-CONTROL

$40.99

$

In Stock, only 1 left!

0

19

Toro 1-807533

BOLT-CARR

$1.49

$

In Stock, Qty 6

0

20

Toro 32128-17

NUT-LOCK, FLANGE

$0.99

$

In Stock, Qty 17

0

21

Toro 120-3288

TAB-PIVOT, LH

$13.99

$

In Stock, only 2 left!

0

22

Toro 120-3287

TAB-PIVOT, RH

$13.99

$

In Stock, only 2 left!

0

23

Toro 1-603175

KNOB-BALL

$11.99

$

In Stock, Qty 7

0

24

Toro 119-6654

CABLE-THROTTLE

$45.99

$

In Stock, only 1 left!

0

25

Toro 119-6655

CONTROL-CHOKE, PUSH/PULL

$54.99

$

In Stock, only 3 left!

0

26

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

27

Toro 3290-134

SCREW

$0.99

$

In Stock, Qty 10

0

28

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

29

Toro 119-8746-01

BRACKET-MOUNT, CABLE

$79.99

$

Usually ships in 3-6 days

0

30

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

31

Toro 121-5967

PLATE-CONTROL, PUMP

$9.49

$

Usually ships in 3-6 days

0

33

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

34

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 14

0

35

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

36

Toro 4-2390

WASHER-FLAT

$4.49

$

Usually ships in 3-6 days

0

39

Toro 321-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

41

Toro 114-0282

SCREW-HH

$4.99

$

In Stock, only 2 left!

0

42

Toro 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 8

0

43

Toro 3274-94

SCREW-HSBH

$3.49

$

Usually ships in 3-6 days

0

44

Toro 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0
