74567 TE - Toro 122cm GrandStand Stand-On Mower (SN: 290000001 - 290999999) (2009) PARKING BRAKE ASSEMBLY Parts Diagram

122cm GrandStand Stand-On Mower

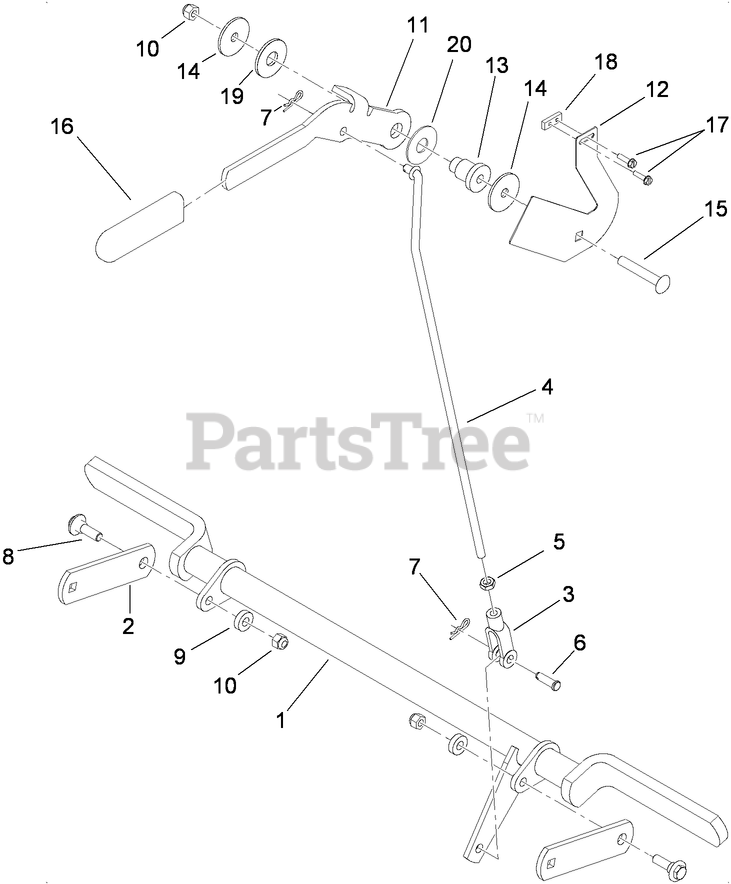

PARKING BRAKE ASSEMBLY Parts Diagram

  • Title

1

Toro 114-5187-03

BRAKE ASM

$

$

Not available

2

Toro 114-5186-01

SUPPORT-BRAKE

$20.99

$

Usually ships in 3-6 days

0

3

Toro 1-633131

YOKE-LINKAGE, BRAKE

$15.99

$

In Stock, Qty 12

0

4

Toro 114-5196

ROD-BRAKE

$69.99

$

Usually ships in 3-6 days

0

5

Toro 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 17

0

6

Toro 283-2

PIN-CLEVIS

$13.99

$

In Stock, only 2 left!

0

7

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

8

Toro 614672

SCREW-SHOULDER, HWH

$2.99

$

In Stock, only 4 left!

0

9

Toro 5-0652

SPACER

$7.99

$

In Stock, Qty 5

0

10

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

11

Toro 114-5258-03

LEVER-BRAKE
(Superseded to 117-5759-03)

$41.99

$

Usually ships in 3-6 days

0

12

Toro 117-0452-03

PLATE-SWITCH, BRAKE

$27.99

$

Usually ships in 3-6 days

0

13

Toro 106-3214

MOUNT-PULLEY

$12.99

$

In Stock, only 3 left!

0

14

Toro 63-7400

WASHER-REBOUND

$3.49

$

In Stock, Qty 20+

0

15

Toro 3231-44

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

16

Toro 1-633268

GRIP-LEVER

$14.99

$

In Stock, only 3 left!

0

17

Toro 32105-13

SCREW-HWH

$1.99

$

In Stock, Qty 5

0

18

Toro 1-633181

PLATE-TAPPED

$6.49

$

In Stock, Qty 12

0

19

Toro 114-0463

WASHER-FRICTION, COMPOSITE

$5.49

$

In Stock, Qty 20+

0

20

Toro 3256-7

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0
