74560 (DH 140) - Toro Lawn Tractor (SN: 317000001 - 317999999) (2017) CENTER SECTION AND FAN PULLEY ASSEMBLY TRANSMISSION ASSEMBLY NO. 121-0999 Parts Diagram

Lawn Tractor

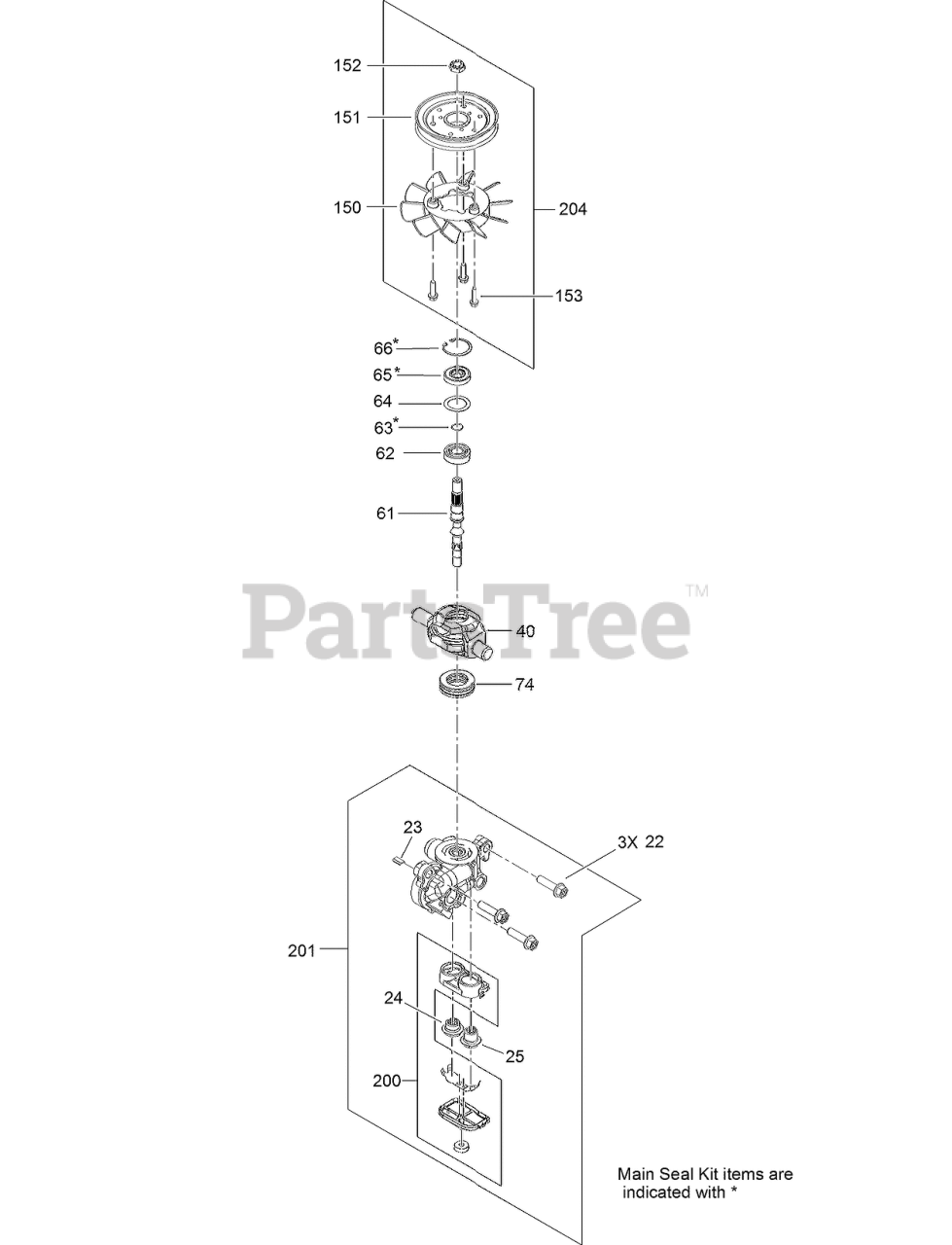

CENTER SECTION AND FAN PULLEY ASSEMBLY TRANSMISSION ASSEMBLY NO. 121-0999 Parts Diagram

  • Title

22

Toro 114-1684

SCREW-HFHC

$11.99

$

Usually ships in 3-6 days

0

23

Toro 119-5528

PLATE-BYPASS

$

$

Currently unavailable

24

Toro 104-5348

CHECK PLUG ASM

$103.99

$

Usually ships in 3-6 days

0

25

Toro 119-5529

CHECK PLUG ASM

$

$

Currently unavailable

40

Toro 115-8319

TRUNNION-PLATE, SWASH

$

$

Currently unavailable

61

Toro 115-8317

SHAFT-INPUT

$77.99

$

Usually ships in 3-6 days

0

62

Toro 94-1904

BEARING-SHAFT, BALL

$137.99

$

Usually ships in 3-6 days

0

63

Toro 119-5531

RING-RETAINING, WIRE

$2.49

$

Usually ships in 3-6 days

0

64

Toro 104-2104

SPACER

$10.99

$

Usually ships in 3-6 days

0

65

Toro 119-5532

SEAL-LIP

$7.49

$

Usually ships in 3-6 days

0

66

Toro 119-5533

RING-RETAINING

$2.99

$

Usually ships in 3-6 days

0

70

Toro 121-0967

PISTON BLOCK ASM

Note: Not illustrated

$

$

Currently unavailable

74

Toro 115-8320

BEARING-THRUST, BALL

$

$

Currently unavailable

150

Toro 105-1927

FAN
(Superseded to 121-5729)

$116.99

$

In Stock, only 1 left!

0

151

Toro 119-5534

PULLEY ASM

$108.99

$

Usually ships in 3-6 days

0

152

Toro 121-0971

NUT-HEX JAM
(Superseded to 116-9714)

$5.49

$

In Stock, only 4 left!

0

153

Toro 105-1897

SCREW

$10.99

$

Usually ships in 3-6 days

0

200

Toro 115-8323

FILTER KIT

$

$

Currently unavailable

201

Toro 121-0972

CENTER SECTION KIT

$

$

Currently unavailable

204

Toro 119-5537

FAN PULLEY KIT

$

$

Currently unavailable
