74560 (DH 140) - Toro Lawn Tractor (SN: 315000001 - 315999999) (2015) OPERATION-TRAVEL PEDAL ASSEMBLY Parts Diagram

Lawn Tractor

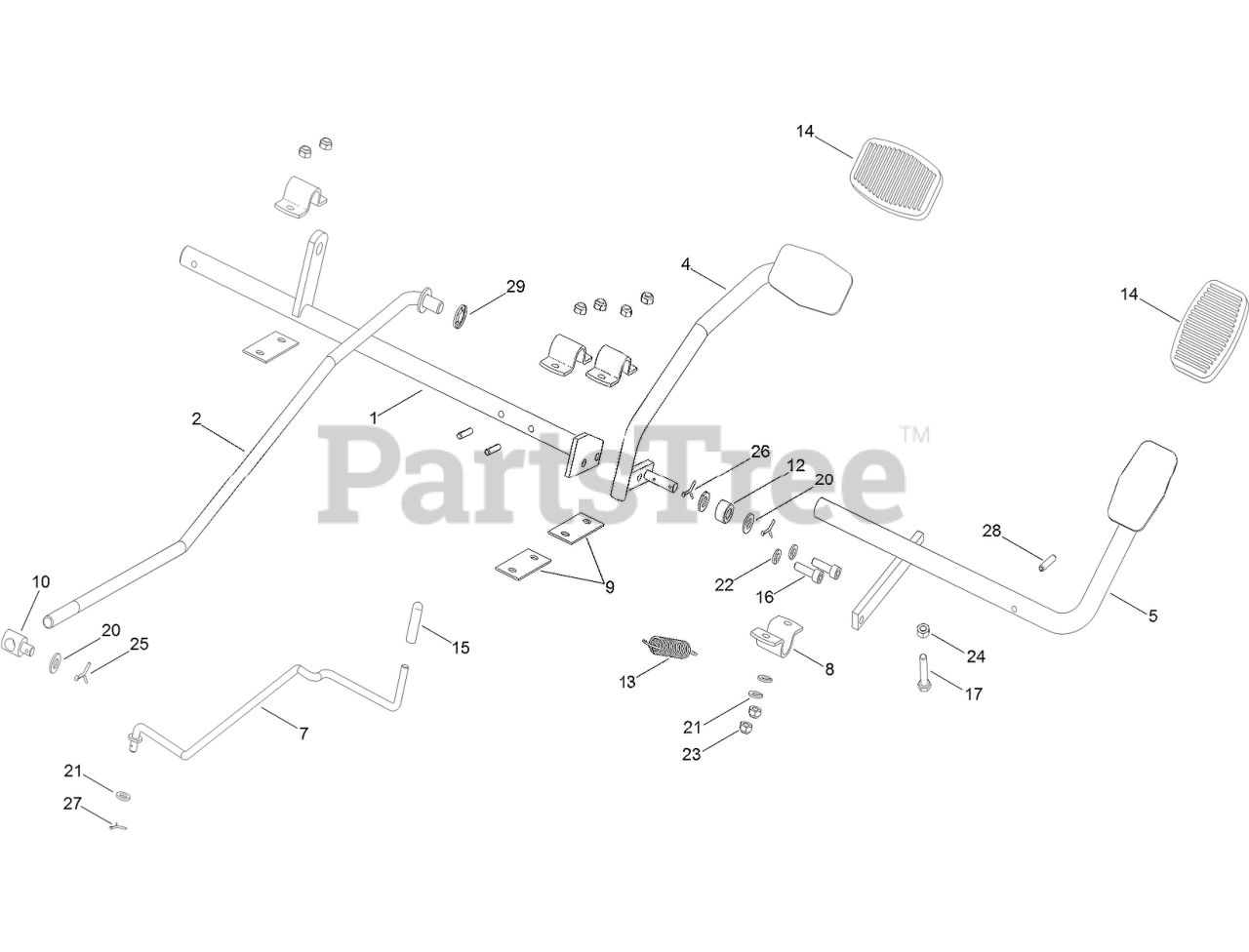

OPERATION-TRAVEL PEDAL ASSEMBLY Parts Diagram

  • Title
1

Toro 120-8721

SHAFT-PIVOT

$

$

Currently unavailable

2

Toro 120-8722

ROD-LINKAGE

$

$

Currently unavailable

4

Toro 120-8723

PEDAL-TRAVEL, FORWARD

$

$

Currently unavailable

5

Toro 120-8724

PEDAL-TRAVEL, REVERSE

$

$

Currently unavailable

7

Toro 119-2432

ROD-LEVER, BYPASS

$

$

Currently unavailable

8

$

$

Currently unavailable

9

Toro 119-2434

SPACER

$

$

Not available

10

$

$

Not available

12

Toro 106-8581

Roller

$

$

Currently unavailable

13

Toro 119-2436

SPRING

$

$

Not available

14

Toro 104-3018

PAD-PEDAL

$

$

Currently unavailable

15

Toro 108-8708

CAP-BYPASS LEVER, HYDRO

$

$

Currently unavailable

16

$

$

Currently unavailable

17

Toro 33113-030

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

20

Toro 106-4756

WASHER-PLAIN

$

$

Currently unavailable

21

Toro 104-3193

WASHER

$

$

Currently unavailable

22

Toro 104-3186

WASHER-SPRING

$

$

Currently unavailable

23

Toro 33023-00

NUT-LOCK

$0.99

$

Usually ships in 3-6 days

0

24

Toro 104-2991

NUT-HEX

$

$

Currently unavailable

25

Toro 104-3027

PIN-COTTER

$

$

Currently unavailable

26

Toro 104-3151

PIN-COTTER

$

$

Currently unavailable

27

Toro 104-2997

PIN-COTTER

$

$

Currently unavailable

28

Toro 104-3008

PIN-SPRING

$

$

Currently unavailable

29

Toro 121-0962

WASHER-M10

$

$

Currently unavailable
