74560 (DH 140) - Toro Lawn Tractor (SN: 314000151 - 314999999) (2014) SEAT AND BODY FENDER ASSEMBLY Parts Diagram

Lawn Tractor

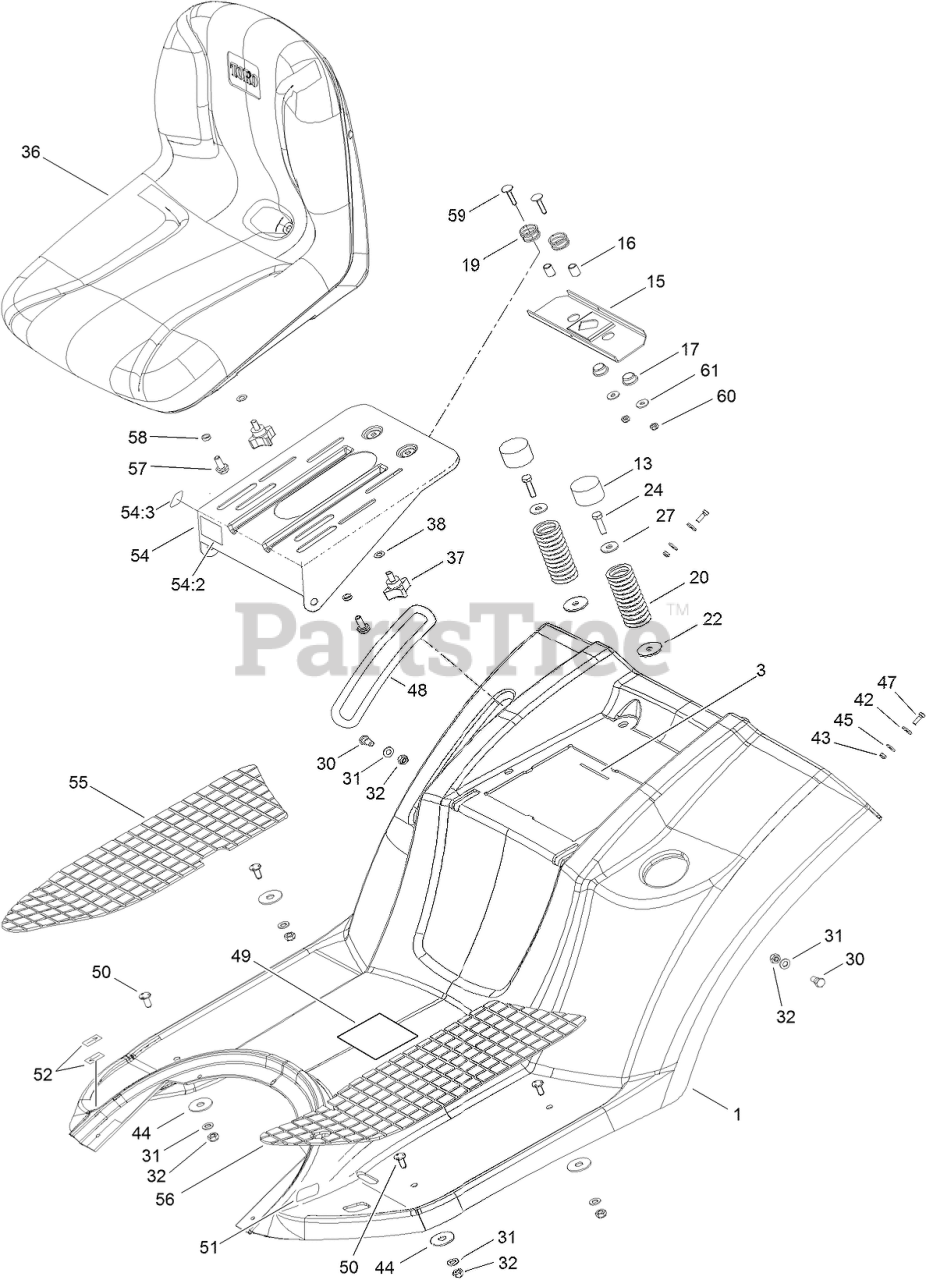

SEAT AND BODY FENDER ASSEMBLY Parts Diagram

  • Title
1

Toro 125-2306

FENDER-REAR

$

$

Currently unavailable

3

Toro 111-6845

PURL-RUBBER, BATTERY

$

$

Currently unavailable

13

Toro 104-2857

CAP-HUB

$

$

Currently unavailable

15

Toro 104-2934

BRACKET

$

$

Currently unavailable

16

Toro 104-2933

SPACER-SPLIT

$

$

Currently unavailable

17

Toro 104-2935

BUSHING

$

$

Currently unavailable

19

Toro 119-5514

SEAT-SPRING

$

$

Currently unavailable

20

Toro 104-2945

SPRING-SEAT

$

$

Currently unavailable

22

Toro 120-8747

WASHER

$

$

Currently unavailable

24

Toro 33114-025

SCREW-HH

$1.99

$

In Stock, Qty 20+

0

27

Toro 104-2946

WASHER-PLAIN

$

$

Currently unavailable

30

Toro 104-2939

SCREW-SUPPORT, SEAT

$

$

Currently unavailable

31

Toro 33094-00

WASHER-PLAIN

$0.99

$

In Stock, only 2 left!

0

32

Toro 33024-00

NUT-LOCK, NI

$0.99

$

Usually ships in 3-6 days

0

36

$

$

Not available

37

Toro 119-5456

KNOB-ADJUST

$20.99

$

Usually ships in 3-6 days

0

38

Toro 104-2936

WASHER-SPRING

$

$

Currently unavailable

42

Toro 104-2943

WASHER-FLAT

$

$

Currently unavailable

43

Toro 87-5140

NUT-LOCK

$0.99

$

Usually ships in 3-6 days

0

44

Toro 104-2949

WASHER-RUBBER

$

$

Currently unavailable

45

Toro 104-2952

WASHER-RUBBER

$

$

Currently unavailable

47

$

$

Currently unavailable

48

Toro 120-8748

DECAL-HEIGHT OF CUT

$

$

Currently unavailable

49

Toro 119-2725

DECAL-DANGER

$6.99

$

Usually ships in 3-6 days

0

50

Toro 100-8159

SCREW-HSFH

$3.99

$

Usually ships in 3-6 days

0

51

Toro 104-3237

DECAL-BRAKE, PARKING

$

$

Currently unavailable

52

Toro 119-5487

DECAL-TRAVEL

$

$

Currently unavailable

54

Toro 119-5513

BRACKET-SUPPORT, SEAT

$177.99

$

Usually ships in 3-6 days

0

54:2

Toro 119-2730

DECAL-DANGER

$

$

Currently unavailable

54:3

Toro 99-5340

DECAL-SWITCH

$4.99

$

Usually ships in 3-6 days

0

55

Toro 120-8745

MAT-FOOT, RH

$

$

Currently unavailable

56

Toro 120-8746

MAT-FOOT, LH

$

$

Currently unavailable

57

Toro 33104-020

SCREW-HHF

$3.49

$

In Stock, only 3 left!

0

58

Toro 119-5457

SPACER

$

$

Currently unavailable

59

$

$

Currently unavailable

60

Toro 33023-00

NUT-LOCK

$0.99

$

Usually ships in 3-6 days

0

61

Toro 104-2931

WASHER-FLAT

$

$

Currently unavailable
