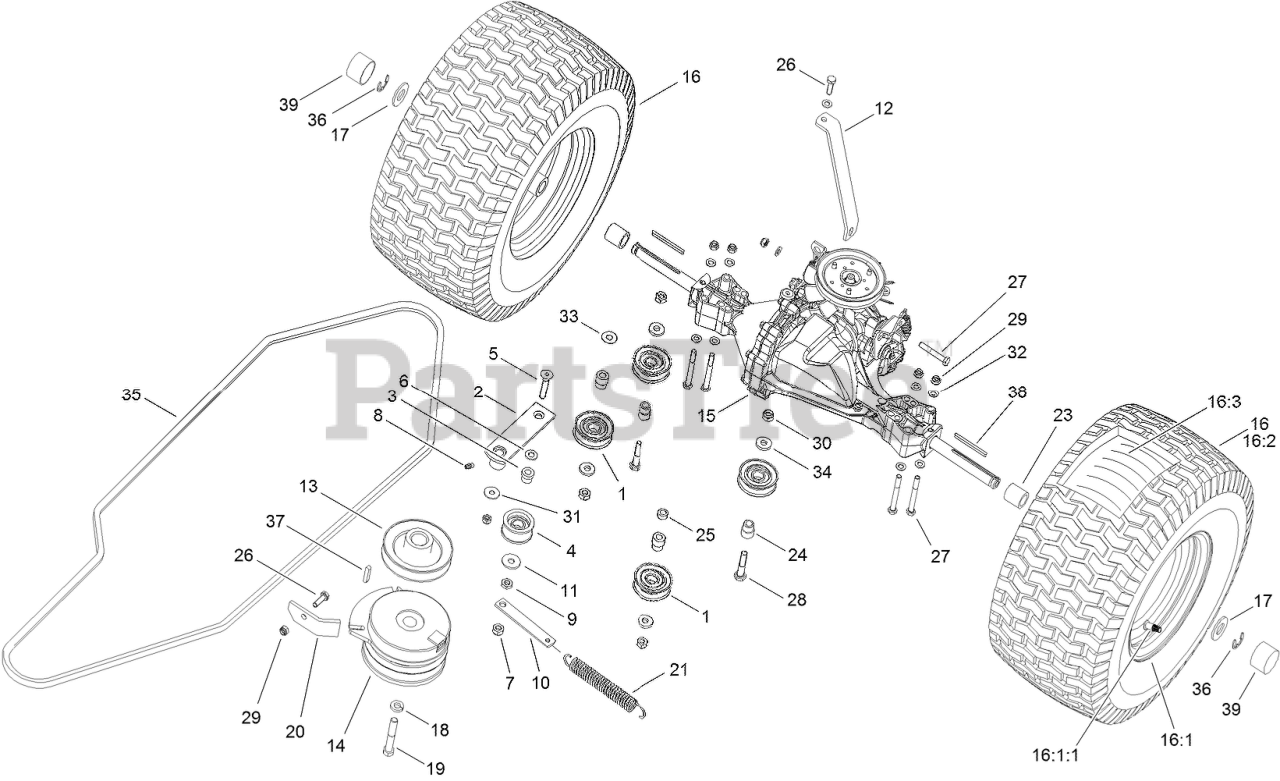

74560 (DH 140) - Toro Lawn Tractor (SN: 314000001 - 314000150) (2014) TRANSMISSION DRIVE ASSEMBLY Parts Diagram

Lawn Tractor

TRANSMISSION DRIVE ASSEMBLY Parts Diagram

  • Title
1

Toro 119-5378

PULLEY-IDLER

$

$

Currently unavailable

2

Toro 119-5379

ARM-IDLER

$

$

Currently unavailable

3

Toro 104-2896

BUSHING-IDLER

$

$

Currently unavailable

4

Toro 119-5380

PULLEY-IDLER

$

$

Currently unavailable

5

$

$

Currently unavailable

6

Toro 33095-00

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

7

Toro 33023-00

NUT-LOCK

$0.99

$

Usually ships in 3-6 days

0

8

Toro 104-2904

FITTING-GREASE

$

$

Currently unavailable

9

Toro 33035-00

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

10

Toro 119-5382

BRACKET-TENTION

$

$

Currently unavailable

11

Toro 119-5383

WASHER

$

$

Currently unavailable

12

Toro 119-5384

BRACKET

$

$

Currently unavailable

13

Toro 119-5385

PULLEY-ENGINE

$

$

Currently unavailable

14

Toro 119-5501

CLUTCH-ELECTRIC
(Superseded to 104-3334)

$474.99

$

In Stock, only 2 left!

0

15

Toro 121-0999

TRANSMISSION ASM

$

$

Currently unavailable

16

WHEEL ASM

Note: Not serviced separately

$

$

Not available

16:1

Toro 119-5523

RIM-REAR

$

$

Currently unavailable

16:1:1

Toro 106-8596

Valve-Tire

$

$

Not available

16:2

$

$

Currently unavailable

16:3

Toro 232-41

Tube
(Superseded to 232-37)

$33.99

$

In Stock, only 1 left!

0

17

Toro 120-8739

WASHER

$

$

Currently unavailable

18

Toro 93-9043

WASHER-SPRING, BELLEVILLE

$0.99

$

Usually ships in 3-6 days

0

19

Toro 3212-10

SCREW-HH

$6.49

$

In Stock, only 1 left!

0

20

Toro 119-5502

BRACKET-RETAINER

$

$

Currently unavailable

21

Toro 104-2897

SPRING

$

$

Currently unavailable

23

Toro 120-8715

SPACER-AXLE

$

$

Currently unavailable

24

Toro 119-5388

BUSHING

$

$

Currently unavailable

25

Toro 119-5389

SPACER

$

$

Not available

26

Toro 33114-020

SCREW-HH

$0.99

$

In Stock, Qty 13

0

27

Toro 60-6690

CAPSCREW

$0.99

$

Usually ships in 3-6 days

0

28

Toro 117-5664

SCREW-HH

$2.49

$

Usually ships in 3-6 days

0

29

Toro 33024-00

NUT-LOCK, NI

$0.99

$

Usually ships in 3-6 days

0

30

Toro 33023-00

NUT-LOCK

$0.99

$

Usually ships in 3-6 days

0

31

Toro 104-2946

WASHER-PLAIN

$

$

Currently unavailable

32

Toro 106-4756

WASHER-PLAIN

$

$

Currently unavailable

33

Toro 106-5768

Washer

$

$

Currently unavailable

34

Toro 108-8709

WASHER-FLAT

$

$

Currently unavailable

35

Toro 119-5390

V-BELT, TRACTION

$

$

Not available

36

Toro 104-2891

CLIP-SPRING

$

$

Currently unavailable

37

Toro 104-2899

KEY-SQUARE

$

$

Currently unavailable

38

Toro 104-2892

KEY-SQUARE

$

$

Currently unavailable

39

Toro 104-2857

CAP-HUB

$

$

Currently unavailable
