74560 (DH 140) - Toro Lawn Tractor (SN: 313000001 - 313999999) (2013) MULCH PLUG ASSEMBLY Parts Diagram

Lawn Tractor

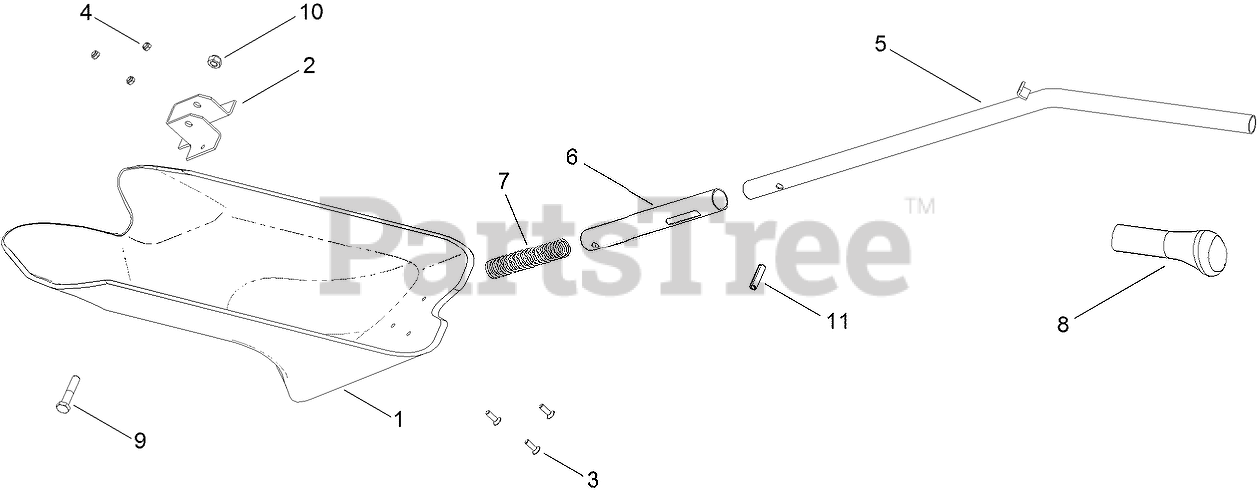

MULCH PLUG ASSEMBLY Parts Diagram

  • Title
1

Toro 120-8732

SHIELD-MULCHING

$

$

Currently unavailable

2

Toro 120-8733

BRACKET-SHIELD, MULCHING

$

$

Currently unavailable

3

$

$

Currently unavailable

4

Toro 87-5140

NUT-LOCK

$0.99

$

Usually ships in 3-6 days

0

5

Toro 120-8734

HANDLE-MULCHING, TOP

$

$

Currently unavailable

6

Toro 120-8735

HANDLE-MULCHING, BOTTOM

$

$

Currently unavailable

7

Toro 120-8736

SPRING, MULCHING

$

$

Currently unavailable

8

Toro 120-8737

HANDLE-MULCHING

$

$

Currently unavailable

9

Toro 33114-040

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

10

Toro 33024-00

NUT-LOCK, NI

$0.99

$

Usually ships in 3-6 days

0

11

Toro 121-0964

PIN-SPIRAL

$

$

Currently unavailable
