74560 (DH 140) - Toro Lawn Tractor (SN: 313000001 - 313999999) (2013) ELECTRICAL - WIRING HARNESS ASSEMBLY Parts Diagram

Lawn Tractor

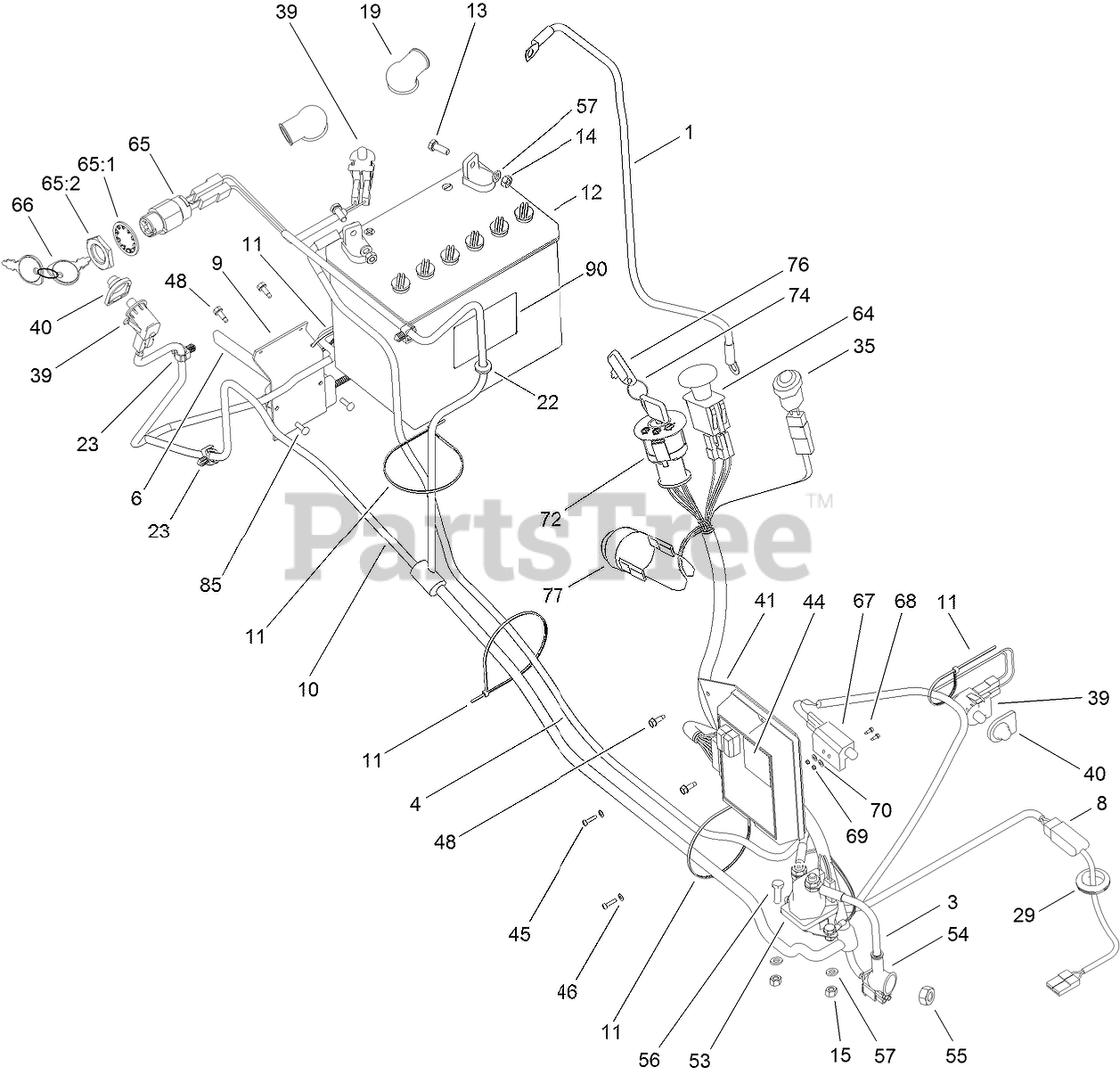

ELECTRICAL - WIRING HARNESS ASSEMBLY Parts Diagram

  • Title

1

Toro 119-5417

CABLE-BATTERY, NEGATIVE

$

$

Currently unavailable

3

Toro 119-5418

LEAD-STARTER, ELECTRIC

$36.99

$

Usually ships in 3-6 days

0

4

Toro 120-8729

CABLE-BATTERY, POSITIVE

$

$

Currently unavailable

6

Toro 119-5429

SWITCH-OMRON

$

$

Currently unavailable

8

Toro 119-5430

HARNESS-CLUTCH

$

$

Currently unavailable

9

Toro 119-5431

BRACKET-SWITCH

$

$

Currently unavailable

10

Toro 119-5432

HARNESS-WIRING

$

$

Currently unavailable

11

Toro 3334-945

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

12

Toro 104-2491

BATTERY
(Superseded to 104-8162)

$

$

Not available

13

Toro 33113-016

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

14

Toro 104-2991

NUT-HEX

$

$

Currently unavailable

15

Toro 33023-00

NUT-LOCK

$0.99

$

Usually ships in 3-6 days

0

19

Toro 104-3154

BOOT-RUBBER

$

$

Currently unavailable

22

Toro 104-3164

BUSHING

$

$

Currently unavailable

23

Toro 104-3157

CLIP-SNAP

$

$

Currently unavailable

29

Toro 104-2959

BUSHING
(Superseded to 104-3168)

$

$

Not available

35

Toro 119-5441

LAMP-INDICATOR

$60.99

$

Usually ships in 3-6 days

0

39

Toro 104-3179

SWITCH-DELTA
(Superseded to 82-2190)

$14.99

$

In Stock, Qty 10

0

40

Toro 104-3178

COVER-PROTECTIVE

$

$

Not available

41

Toro 119-5433

BRACKET-SUPPORT, MODULE

$41.99

$

Usually ships in 3-6 days

0

44

Toro 119-5434

MODULE-CONTROL

$

$

Currently unavailable

45

Toro 119-5436

SCREW

$

$

Not available

46

Toro 119-5437

WASHER

$

$

Not available

48

Toro 104-2977

SCREW-TAP

$

$

Not available

53

Toro 104-3189

Solenoid
(Superseded to 740207)

$34.99

$

In Stock, only 4 left!

0

54

Toro 104-3187

BOOT-RUBBER

$

$

Currently unavailable

55

Toro 32128-32

NUT-HHF

$2.99

$

In Stock, only 2 left!

0

56

Toro 33113-012

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

57

Toro 104-3193

WASHER

$

$

Currently unavailable

64

Toro 93-9998

SWITCH-PTO

$45.99

$

In Stock, only 1 left!

0

65

Toro 46-5780

STARTER SWITCH ASM

$29.99

$

In Stock, only 1 left!

0

65:1

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, only 2 left!

0

65:2

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 9

0

66

Toro 62-7770

KEY-IGNITION

$4.99

$

In Stock, only 1 left!

0

67

Toro 119-5440

SWITCH-DELTA

$60.99

$

Usually ships in 3-6 days

0

68

Toro 104-3331

Bolt

$

$

Currently unavailable

69

Toro 104-2985

NUT-HEX

$

$

Currently unavailable

70

Toro 104-2984

WASHER

$

$

Currently unavailable

72

Toro 119-5438

SWITCH-IGNITION

$165.99

$

Usually ships in 3-6 days

0

74

Toro 119-5439

RING

$

$

Currently unavailable

76

Toro 119-5510

KEY-IGNITION

$

$

Currently unavailable

77

Toro 119-5511

BUZZER

$

$

Not available

85

Toro 104-3349

Screw
(Superseded to 104-2977)

$

$

Not available

90

Toro 93-7276

DECAL-DANGER

$19.99

$

Usually ships in 3-6 days

0
