74560 (DH 140) - Toro Lawn Tractor (SN: 310000001 - 310999999) (2010) FRAME ASSEMBLY Parts Diagram

Lawn Tractor

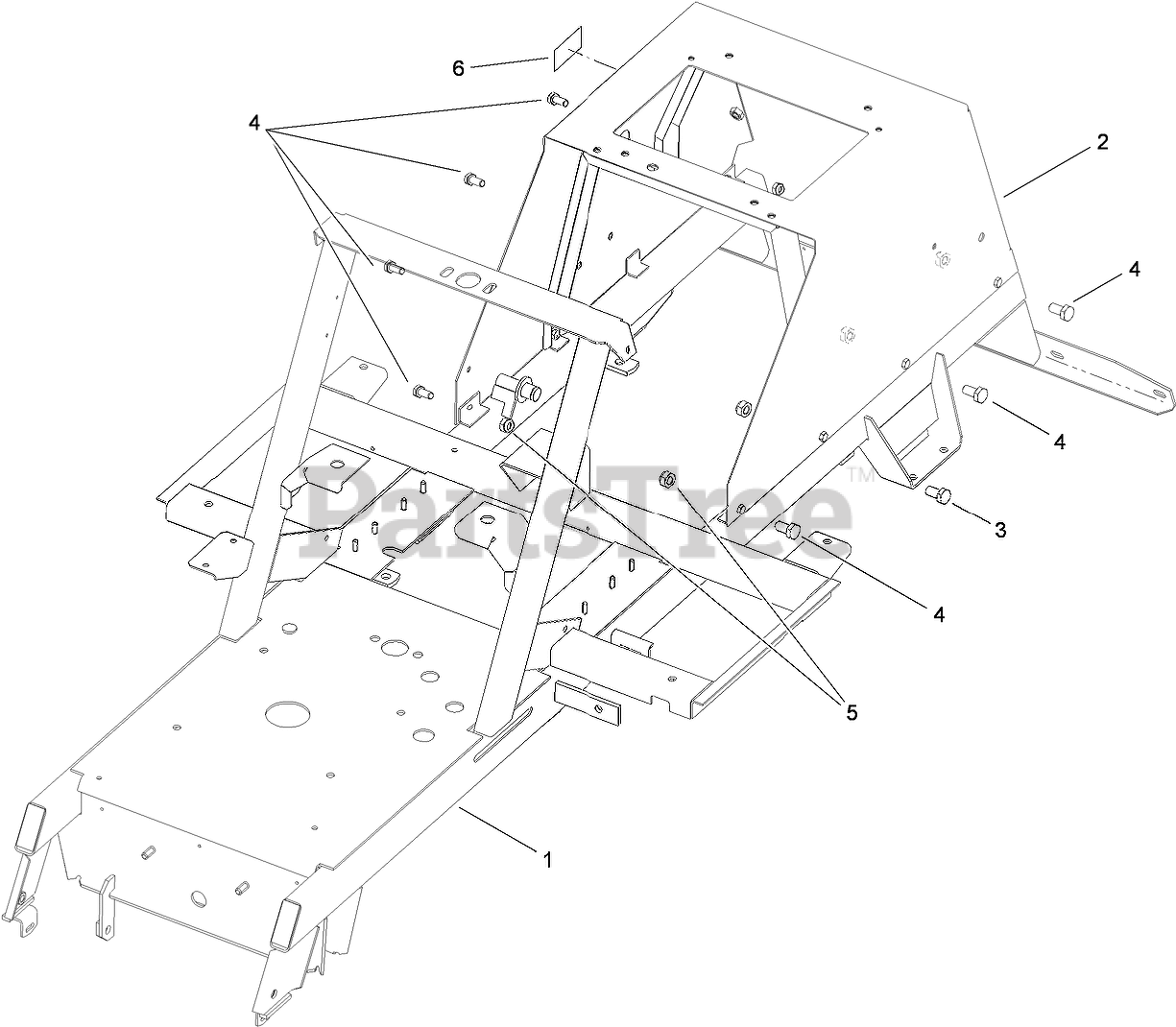

FRAME ASSEMBLY Parts Diagram

  • Title
1

Toro 119-5498

FRAME ASSEMBLY

$

$

Not available

2

Toro 119-5499

BRACKET-SEAT

$

$

Currently unavailable

3

Toro 33113-016

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

4

Toro 33113-012

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

5

Toro 33023-00

NUT-LOCK

$0.99

$

Usually ships in 3-6 days

0

6

Toro 119-5515

DECAL-BYPASS

$

$

Currently unavailable
