74560 (DH 140) - Toro Lawn Tractor (SN: 310000001 - 310999999) (2010) ENGINE, MUFFLER AND FUEL TANK ASSEMBLY Parts Diagram

Lawn Tractor

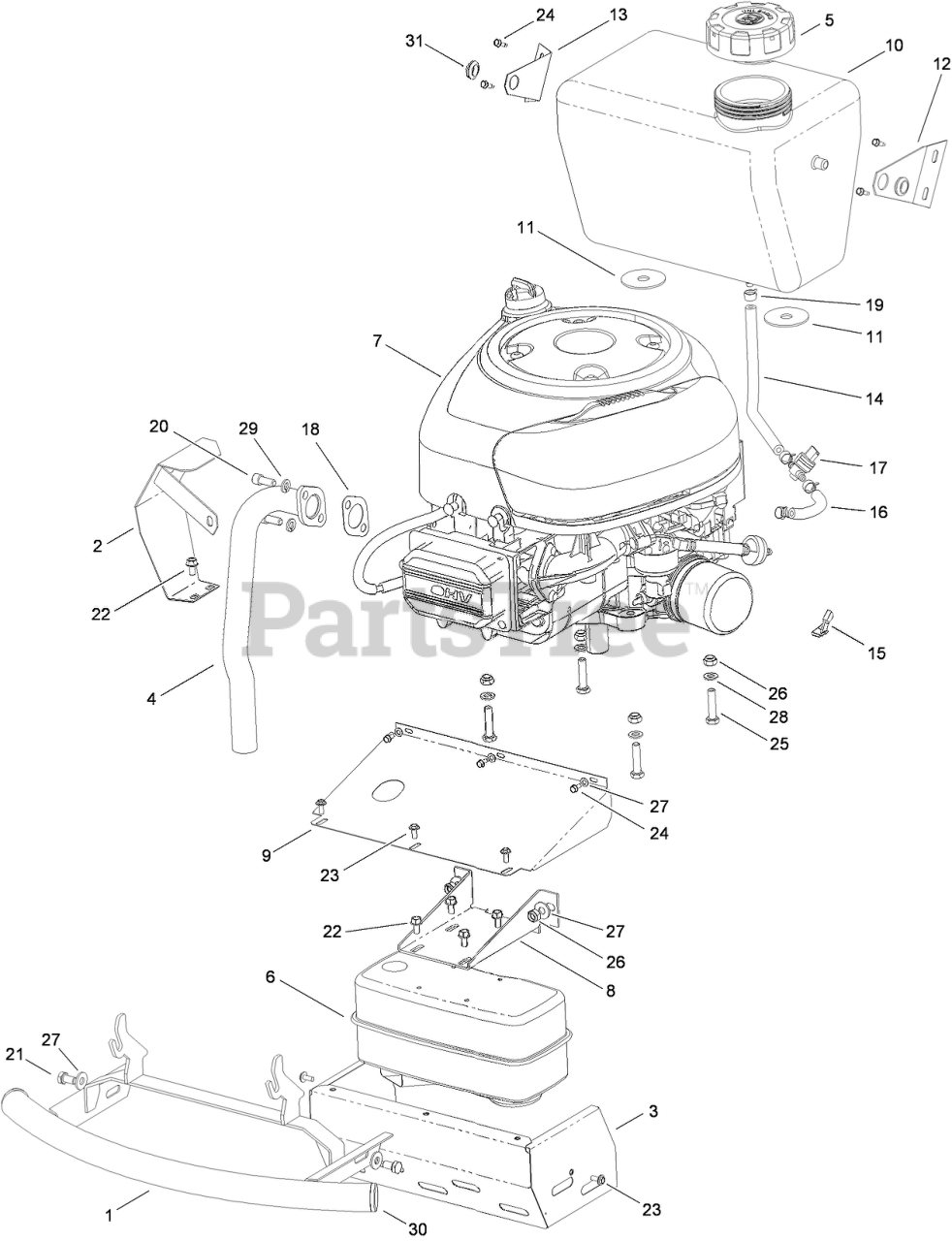

ENGINE, MUFFLER AND FUEL TANK ASSEMBLY Parts Diagram

  • Title
1

Toro 119-5350

BUMPER

$

$

Currently unavailable

2

Toro 119-5351

SHIELD-EXHAUST TUBE

$

$

Currently unavailable

3

Toro 119-5352

SHIELD-MUFFLER

$

$

Currently unavailable

4

Toro 119-5353

TUBE-EXHAUST

$

$

Currently unavailable

5

Toro 119-5354

CAP-FUEL
(Superseded to 88-3980)

$31.99

$

In Stock, Qty 6

0

6

Toro 104-3229

MUFFLER

$

$

Currently unavailable

7

ENGINE-BRIGGS, 21B977-0198-B1

Note: Not serviced separately

$

$

Not available

8

Toro 119-5356

BRACKET-MUFFLER MOUNT

$

$

Currently unavailable

9

Toro 119-5357

COVER-TOP

$

$

Currently unavailable

10

Toro 119-5358

TANK-FUEL

$

$

Currently unavailable

11

Toro 119-5500

WASHER-RUBBER

$

$

Currently unavailable

12

Toro 119-5359

BRACKET-FUEL TANK, LEFT

$

$

Currently unavailable

13

Toro 119-5360

BRACKET-FUEL TANK, RIGHT

$

$

Currently unavailable

14

Toro 119-5361

HOSE-FUEL

$5.99

$

Usually ships in 3-6 days

0

15

Toro 88-4490

REDUCER-THROTTLE, RPM

$18.99

$

Usually ships in 3-6 days

0

16

Toro 104-3213

LINE-FUEL

$

$

Currently unavailable

17

Toro 104-3224

VALVE-TANK, FUEL

$

$

Currently unavailable

18

Toro 119-5362

GASKET

$

$

Currently unavailable

19

Toro 104-3212

CLAMP-LINE, FUEL

$

$

Currently unavailable

20

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

21

Toro 33114-016

SCREW-HH

$0.99

$

In Stock, only 4 left!

0

22

Toro 110-7170

SCREW-HH

$

$

Currently unavailable

23

$

$

Currently unavailable

24

Toro 104-2977

SCREW-TAP

$

$

Not available

25

Toro 48-7740

SCREW
(Superseded to 33114-035)

$4.99

$

In Stock, only 1 left!

0

26

Toro 33024-00

NUT-LOCK, NI

$0.99

$

Usually ships in 3-6 days

0

27

Toro 104-2946

WASHER-PLAIN

$

$

Currently unavailable

28

Toro 106-4756

WASHER-PLAIN

$

$

Currently unavailable

29

Toro 104-2927

WASHER-SPRING

$

$

Not available

30

Toro 119-5363

CAP-BUMPER

$

$

Currently unavailable

31

Toro 119-5364

BUSHING

$

$

Currently unavailable
