74558 - Toro 48" GrandStand Stand-On Mower (SN: 290000210 - 290003000) (2009) HYDRAULIC PUMP ASSEMBLY NO. 117-3597 Parts Diagram

48" GrandStand Stand-On Mower

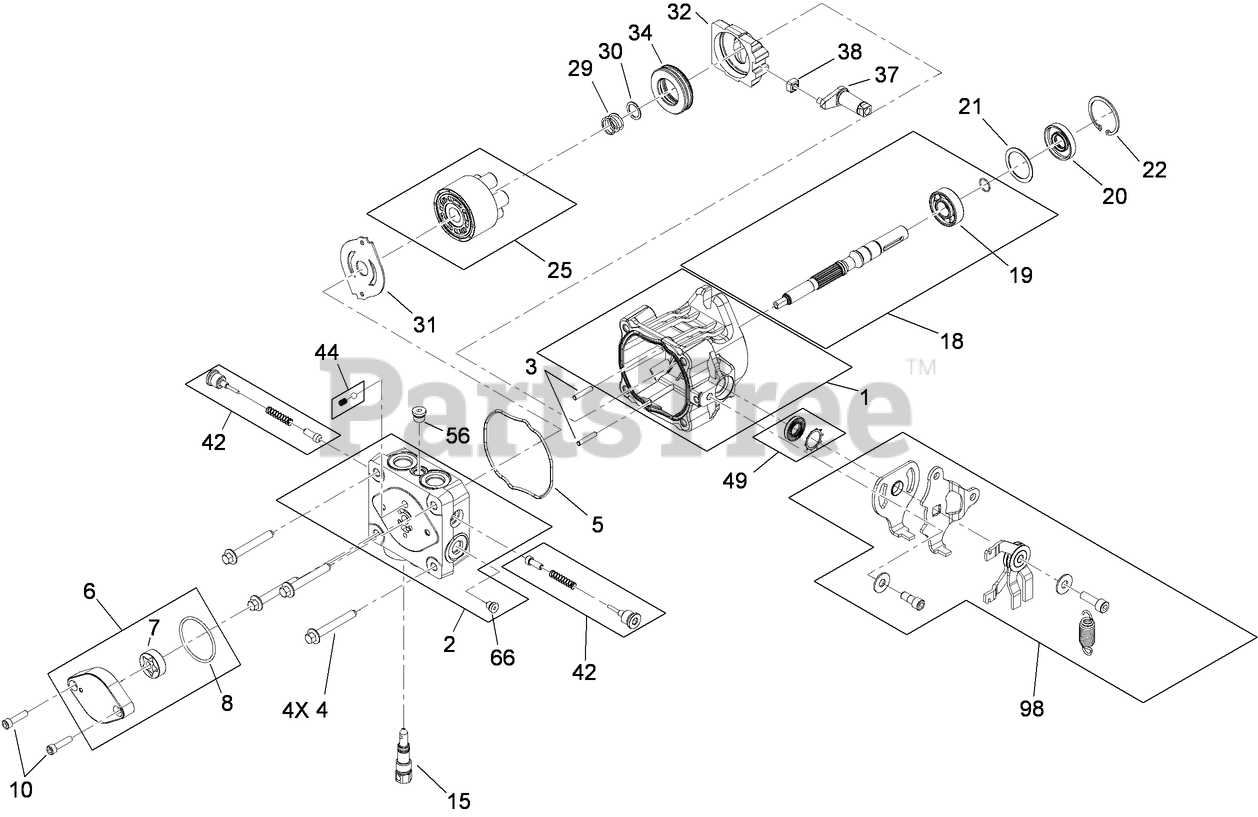

HYDRAULIC PUMP ASSEMBLY NO. 117-3597 Parts Diagram

  • Title
1

Toro 115-4464

HOUSING KIT

$377.99

$

Usually ships in 3-6 days

0

2

Toro 106-8752

END CAP KIT (W/POPPETS)

$663.99

$

Usually ships in 3-6 days

0

3

Toro 106-8753

PIN-HEADLESS, STRAIGHT

$33.99

$

Usually ships in 3-6 days

0

4

Toro 106-8754

BOLT-HF

$14.99

$

Usually ships in 3-6 days

0

5

Toro 106-8755

O-RING
(Superseded to 125-4682)

$17.99

$

In Stock, only 1 left!

0

6

Toro 106-8756

CHARGE PUMP KIT

$349.99

$

Usually ships in 3-6 days

0

7

Toro 104-2122

GEROTOR ASM

$122.99

$

Usually ships in 3-6 days

0

8

Toro 106-8757

O-RING

$6.49

$

Usually ships in 3-6 days

0

10

Toro 104-2111

CAPSCREW

$10.99

$

Usually ships in 3-6 days

0

15

Toro 106-8759

BYPASS VALVE KIT

$104.99

$

Usually ships in 3-6 days

0

18

Toro 103-2664

INPUT SHAFT KIT

$779.99

$

Usually ships in 3-6 days

0

19

Toro 104-5311

BEARING-BALL

$44.99

$

In Stock, Qty 5

0

20

Toro 104-5310

SEAL-LIP

$36.99

$

In Stock, only 1 left!

0

21

Toro 104-5308

SPACER

$9.49

$

Usually ships in 3-6 days

0

22

Toro 104-5309

RING-RETAINING

$12.99

$

In Stock, only 2 left!

0

25

Toro 103-2666

CYLINDER BLOCK KIT

$546.99

$

Usually ships in 3-6 days

0

29

Toro 94-1936

SPRING-BLOCK

$8.49

$

Usually ships in 3-6 days

0

30

Toro 94-1937

WASHER-THRUST

$6.49

$

Usually ships in 3-6 days

0

31

Toro 105-6185

Plate-Valve

$112.99

$

Usually ships in 3-6 days

0

32

Toro 94-1907

SWASHPLATE-VARIABLE

$517.99

$

Usually ships in 3-6 days

0

34

Toro 94-6922

BEARING-THRUST

$62.99

$

In Stock, only 3 left!

0

37

Toro 115-4458

ARM-TRUNNION, TAPERED SQUARE

$194.99

$

Usually ships in 3-6 days

0

38

Toro 94-1910

GUIDE-SLOT

$21.99

$

Usually ships in 3-6 days

0

42

Toro 98-3252

VALVE-CHECK (W/POPPET)

$224.99

$

Usually ships in 3-6 days

0

44

Toro 106-8760

CHARGE RELIEF VALVE KIT

$21.99

$

Usually ships in 3-6 days

0

49

Toro 114-8155

TRUNNION SEAL KIT

$18.99

$

Usually ships in 3-6 days

0

56

Toro 106-8762

PLUG-HSH

$23.99

$

Usually ships in 3-6 days

0

66

Toro 106-8763

PLUG-HSH

$41.99

$

Usually ships in 3-6 days

0

98

Toro 117-3629

KIT-RETURN
(Superseded to 115-4046)

$174.99

$

Usually ships in 3-6 days

0

99

Toro 105-6184

SEAL OVERHAUL KIT

Note: Not illustrated

$84.99

$

In Stock, Qty 12

0
