74553 - Toro 60" GrandStand Stand-On Mower (SN: 314000001 - 314999999) (2014) FRAME ASSEMBLY Parts Diagram

60" GrandStand Stand-On Mower

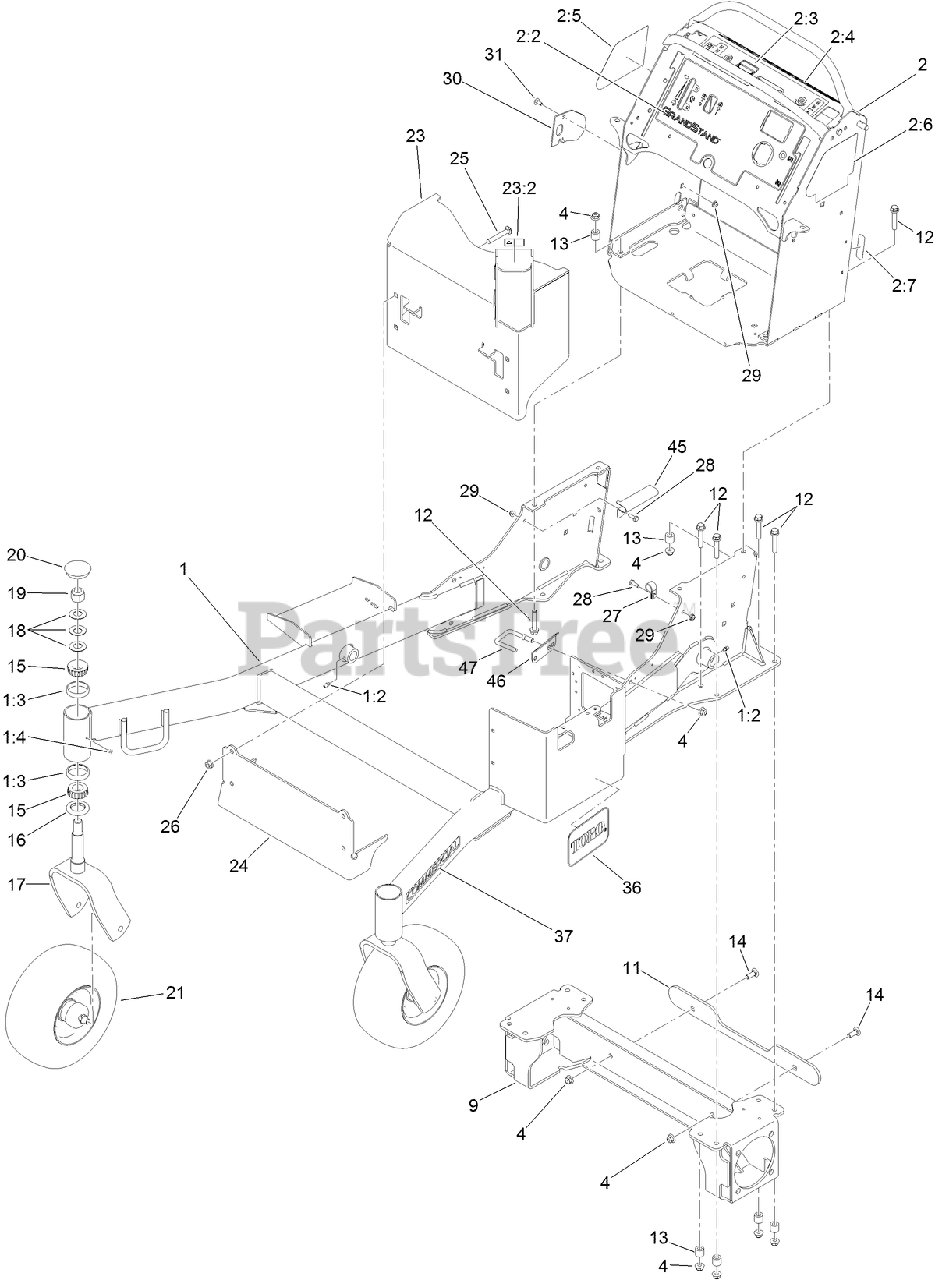

FRAME ASSEMBLY Parts Diagram

  • Title

1

Toro 121-5995

FRONT FRAME ASM

$1951.99

$

Usually ships in 3-6 days

0

1:2

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

1:3

Toro 1-543508

CUP-BEARING

$7.99

$

In Stock, Qty 15

0

1:4

Toro 1-811010

PLUG

$5.49

$

In Stock, Qty 11

0

2

Toro 120-6460

CONTROL TOWER ASM

$1304.99

$

Usually ships in 3-6 days

0

2:2

Toro 120-6464

DECAL-PANEL, CONTROL

$41.99

$

Usually ships in 3-6 days

0

2:3

Toro 119-8727

DECAL-OPC

$23.99

$

Usually ships in 3-6 days

0

2:4

Toro 117-3626

DECAL-WARNING

$37.99

$

Usually ships in 3-6 days

0

2:5

Toro 117-0456

DECAL-HOC

$26.99

$

Usually ships in 3-6 days

0

2:6

Toro 121-5972

DECAL-SERVICE/SPARK ARREST

$20.99

$

Usually ships in 3-6 days

0

2:7

Toro 116-3267

DECAL-FUSE

$5.49

$

Usually ships in 3-6 days

0

4

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

9

Toro 116-9557-01

FRAME-MOTOR

$264.99

$

Usually ships in 3-6 days

0

11

Toro 126-1364-01

PLATE-SPACER, BUMPER

$27.99

$

Usually ships in 3-6 days

0

12

Toro 108-3742

SCREW-HHF

$6.49

$

Usually ships in 3-6 days

0

13

Toro 121-1760

SPACER

$2.99

$

In Stock, only 2 left!

0

14

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

15

Toro 1-543509

BEARING-ROLLER, TAPERED

$13.99

$

In Stock, Qty 20+

0

16

Toro 116-5647

SEAL-GREASE

$5.49

$

In Stock, Qty 20+

0

17

Toro 121-7988-01

FORK-CASTER

$201.99

$

In Stock, Qty 20+

0

18

Toro 1-633508

WASHER-BELLVILLE

$3.49

$

In Stock, Qty 20+

0

19

Toro 3296-51

NUT-LOCK, NI

$6.49

$

In Stock, Qty 10

0

20

Toro 103-4882

CAP-GREASE

$7.99

$

In Stock, Qty 20+

0

21

Toro 130-4558

WHEEL/TIRE AND BEARING ASM

$225.99

$

Usually ships in 3-6 days

0

23

Toro 116-6373

MUFFLER GUARD ASM
(Superseded to 126-5015)

$212.99

$

Usually ships in 3-6 days

0

23:2

Toro 106-5517

DECAL-WARNING

$5.49

$

In Stock, only 3 left!

0

24

Toro 116-3113-01

PANEL-GUARD

$111.99

$

Usually ships in 3-6 days

0

25

Toro 3231-31

SCREW-CARR

$6.99

$

In Stock, Qty 20+

0

26

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

27

Toro 2412-87

CLAMP-CABLE

$3.49

$

Usually ships in 3-6 days

0

28

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

29

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

30

Toro 119-7312

PLATE-STRIKER

$21.99

$

Usually ships in 3-6 days

0

31

Toro 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

36

Toro 68-3640

DECAL

$20.99

$

In Stock, only 2 left!

0

37

Toro 117-3591

DECAL-COMMERCIAL

$15.99

$

In Stock, only 2 left!

0

45

Toro 116-5067

BRACKET-HOSE, FUEL (DOUBLE)

$22.99

$

Usually ships in 3-6 days

0

46

Toro 121-6003

GUARD-HOSE

$15.99

$

Usually ships in 3-6 days

0

47

Toro 121-6004

GUIDE-HOSE

$14.99

$

Usually ships in 3-6 days

0
