74553 - Toro 60" GrandStand Stand-On Mower (SN: 313000001 - 313001000) (2013) FUEL TANK ASSEMBLY Parts Diagram

60" GrandStand Stand-On Mower

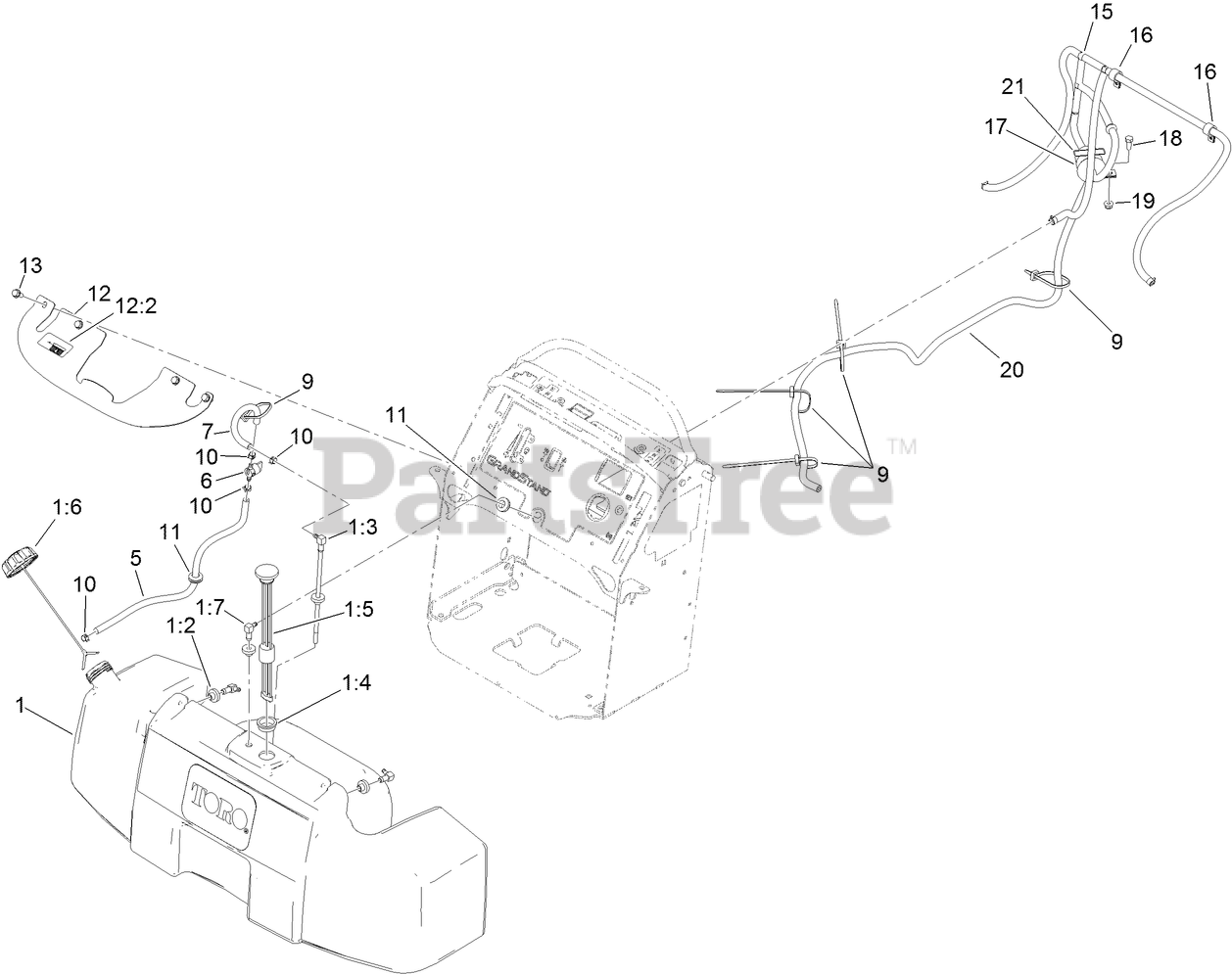

FUEL TANK ASSEMBLY Parts Diagram

  • Title

1

Toro 120-8324

TANK ASM

$818.99

$

Usually ships in 3-6 days

0

1:2

Toro 46-6560

BUSHING

$5.99

$

In Stock, Qty 10

0

1:3

Toro 117-9655

FITTING-FUEL, SCREEN TUBE

$38.99

$

Usually ships in 3-6 days

0

1:4

Toro 95-8972

GROMMET

$11.99

$

In Stock, only 1 left!

0

1:5

Toro 117-9719

GUAGE-FUEL

$175.99

$

Usually ships in 3-6 days

0

1:6

Toro 115-7788

CAP-FUEL
(Superseded to 137-4127)

$23.99

$

In Stock, only 2 left!

0

1:7

Toro 1-643172

ELBOW-90 DEG

$11.99

$

In Stock, only 2 left!

0

5

Toro 110-5701

HOSE-FUEL

$17.99

$

Usually ships in 3-6 days

0

6

Toro 1-603770

VALVE-FUEL

$8.49

$

In Stock, Qty 7

0

7

Toro 109-0297

HOSE-FUEL

$7.99

$

In Stock, only 1 left!

0

9

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

10

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

11

Toro 112-7069

GROMMET

$3.49

$

Usually ships in 3-6 days

0

12

Toro 120-6462

BRACKET-TANK

$76.99

$

Usually ships in 3-6 days

0

12:2

Toro 116-3290

DECAL-FILL, FUEL

$3.49

$

In Stock, only 1 left!

0

13

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 16

0

15

VENT HOSE ASM

Note: Not serviced separately

$

$

Not available

16

Toro 2412-87

CLAMP-CABLE

$3.49

$

Usually ships in 3-6 days

0

17

Toro 2412-96

CLAMP-R

$4.99

$

Usually ships in 3-6 days

0

18

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

19

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

20

Toro 119-6073

HOSE-FUEL

$34.99

$

Usually ships in 3-6 days

0

21

Toro 116-4769

DECAL-FILTER, EMISSIONS

$2.99

$

In Stock, only 3 left!

0
