74548 - Toro 48" GrandStand Stand-On Mower (SN: 312000001 - 312999999) (2012) HYDRAULIC SYSTEM ASSEMBLY Parts Diagram

48" GrandStand Stand-On Mower

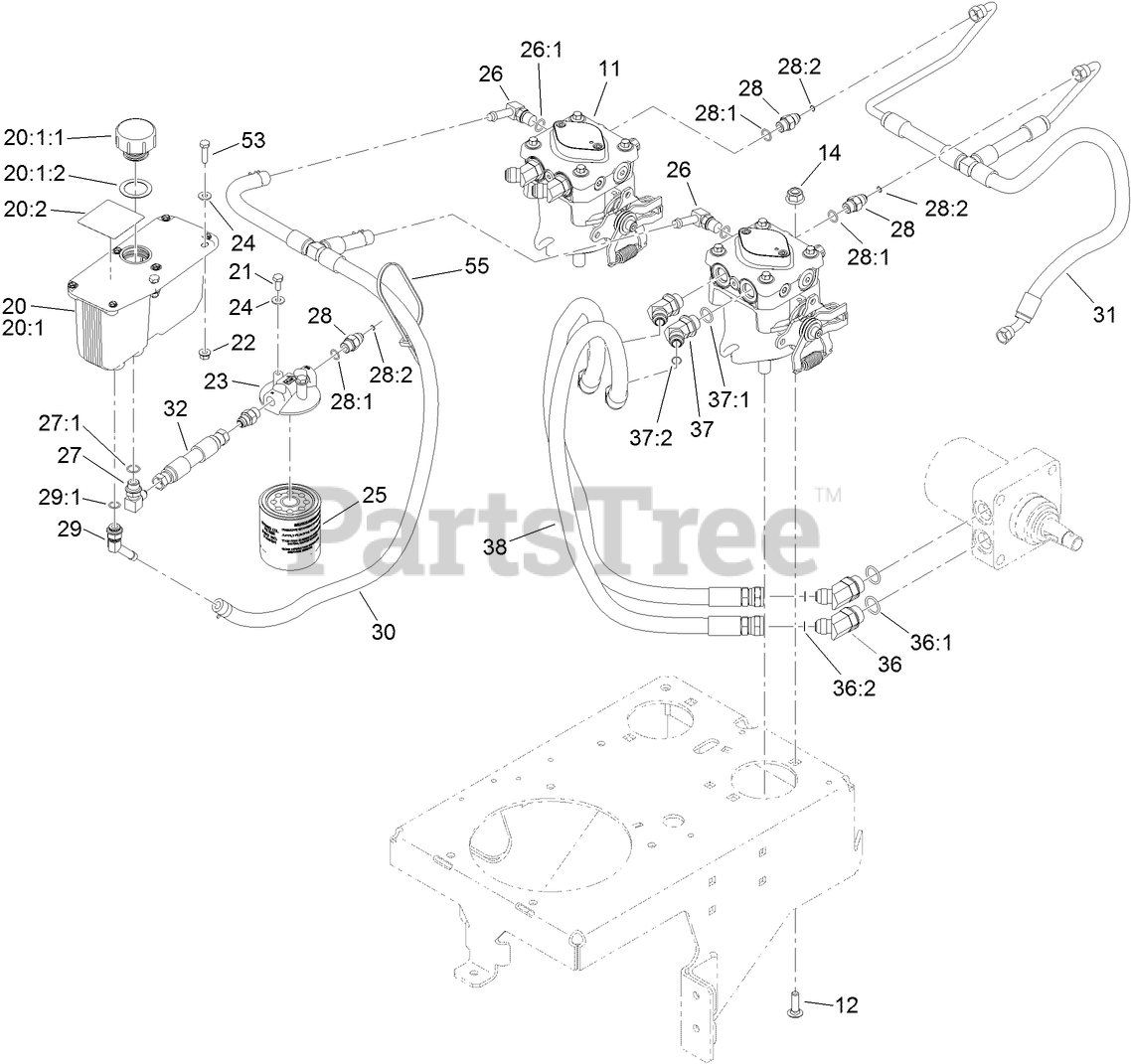

HYDRAULIC SYSTEM ASSEMBLY Parts Diagram

  • Title

11

Toro 119-7375

HYDRAULIC PUMP ASM
(Superseded to 125-4672)

$1176.99

$

Usually ships in 3-6 days

0

12

Toro 3232-3

BOLT-CARR

$3.49

$

In Stock, Qty 5

0

14

Toro 114-8417

NUT-HF, NI

$2.49

$

In Stock, Qty 10

0

20

Toro 107-8433

HYD RESERVOIR ASM

$384.99

$

Usually ships in 3-6 days

0

20:1

Reservoir-HYD

Note: Not serviced separately

$

$

Not available

20:1:1

Toro 103-1948

CAP-RESERVOIR, HYD

$32.99

$

In Stock, Qty 13

0

20:1:2

Toro 103-1949

GASKET-CAP

$

$

Not available

20:2

Toro 115-4212

DECAL-WARNING

$12.99

$

Usually ships in 3-6 days

0

21

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

22

Toro 32128-32

NUT-HHF

$2.99

$

In Stock, Qty 18

0

23

Toro 104-7836

HEAD-FILTER

$18.99

$

In Stock, only 3 left!

0

24

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

25

Toro 114-3494

ELEMENT-FILTER, 25 MICRON

$17.99

$

In Stock, Qty 13

0

26

Toro 100-4887

FITTING-ELBOW, 90

$29.99

$

In Stock, only 1 left!

0

26:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

27

Toro 103-1802

FITTING-ELBOW, 90 DEG

$23.99

$

In Stock, only 2 left!

0

27:1

Toro 1-603921

O-Ring
(Superseded to 237-42)

$3.49

$

In Stock, Qty 20+

0

28

Toro 103-2156

FITTING-STRAIGHT

$42.99

$

In Stock, only 3 left!

0

28:1

Toro 1-603921

O-Ring
(Superseded to 237-42)

$3.49

$

In Stock, Qty 20+

0

28:2

Toro 103-1020

O-RING

$1.49

$

Usually ships in 3-6 days

0

29

Toro 103-1807

FITTING-BARBED, 45 DEG

$28.99

$

Usually ships in 3-6 days

0

29:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

30

Toro 121-5969

CASE DRAIN HOSE ASM

$54.99

$

Usually ships in 3-6 days

0

31

Toro 121-5968

CHARGE HOSE ASM

$119.99

$

Usually ships in 3-6 days

0

32

Toro 116-2604

HYD HOSE ASM

$22.99

$

Usually ships in 3-6 days

0

36

Toro 1-523222

FITTING-HYD, 45 DEG

$63.99

$

Usually ships in 3-6 days

0

36:1

Toro 1-603919

O-RING

$3.49

$

In Stock, Qty 20+

0

36:2

Toro 1-603992

O-Ring

$2.99

$

In Stock, Qty 20+

0

37

Toro 1-523221

FITTING-HYD, 45 DEG

$49.99

$

Usually ships in 3-6 days

0

37:1

Toro 1-603920

O-RING

$3.99

$

In Stock, Qty 20+

0

37:2

Toro 1-603992

O-Ring

$2.99

$

In Stock, Qty 20+

0

38

Toro 116-6902

HYD HOSE ASM

$110.99

$

In Stock, only 3 left!

0

53

Toro 321-6

SCREW-HH

$0.99

$

In Stock, Qty 12

0

55

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 7

0
