74548 - Toro 48" GrandStand Stand-On Mower (SN: 312000001 - 312999999) (2012) ENGINE ASSEMBLY Parts Diagram

48" GrandStand Stand-On Mower

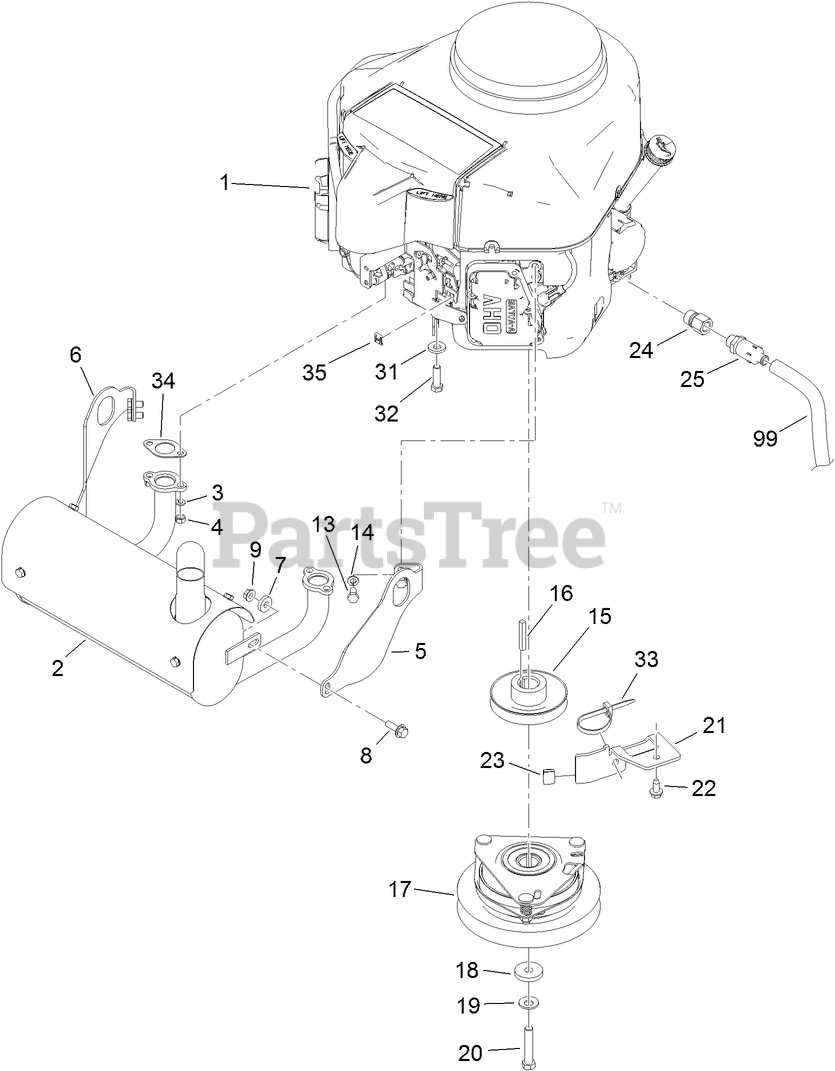

ENGINE ASSEMBLY Parts Diagram

  • Title
1

ENGINE-KAWASAKI, FS691V

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

1

ENGINE-KAWASAKI, FS691V

Note: Not serviced separately

$

$

Not available

2

Toro 116-2352

MUFFLER
(Superseded to 132-1548)

$336.99

$

Usually ships in 3-6 days

0

3

Toro 114-3550

WASHER-LOCK

$1.49

$

In Stock, Qty 6

0

$1.99

$

In Stock, Qty 20+

0

5

Toro 116-2353

BRACKET-MUFFLER MOUNT, LH

$70.99

$

In Stock, only 1 left!

0

6

Toro 116-2354

BRACKET-MUFFLER MOUNT, RH

$70.99

$

In Stock, only 1 left!

0

7

Toro 104-7658

SPACER

$1.49

$

In Stock, only 2 left!

0

8

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 14

0

9

Toro 32128-25

NUT-HF

$3.49

$

In Stock, Qty 12

0

13

Toro 33114-016

SCREW-HH

$0.99

$

In Stock, only 4 left!

0

14

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

15

Toro 112-7067

PULLEY

$168.99

$

Usually ships in 3-6 days

0

16

Toro 608006

KEY-SQUARE

$5.49

$

Usually ships in 3-6 days

0

17

Toro 105-2635

CLUTCH / BRAKE ASM

$576.99

$

In Stock, only 1 left!

0

18

Toro 107-4136

WASHER
(Superseded to 1-543610)

$6.49

$

In Stock, Qty 6

0

19

Toro 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 6

0

20

Toro 3212-9

SCREW-HH

$12.99

$

Usually ships in 3-6 days

0

21

Toro 121-5984-03

BRACKET-CLUTCH STOP

$26.99

$

Usually ships in 3-6 days

0

22

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

23

Toro 109-3765

BUMPER

$6.99

$

Usually ships in 3-6 days

0

24

Toro 103-1966

Adapter

$18.99

$

In Stock, only 1 left!

0

25

Toro 92-6877

VALVE-DRAIN, OIL

$41.99

$

In Stock, only 1 left!

0

31

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

32

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

33

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

34

Toro 1-653313

GASKET-EXHAUST

$4.99

$

Usually ships in 3-6 days

0

35

Toro 81-1690

CLAMP-CABLE

$2.99

$

Usually ships in 3-6 days

0

99

Toro 103-1964

HOSE-DRAIN, OIL

$11.99

$

In Stock, only 1 left!

0
