74540 TE - Toro 91cm GrandStand Stand-On Mower (SN: 413000000 - 999999999) Deck Assembly Parts Diagram

91cm GrandStand Stand-On Mower

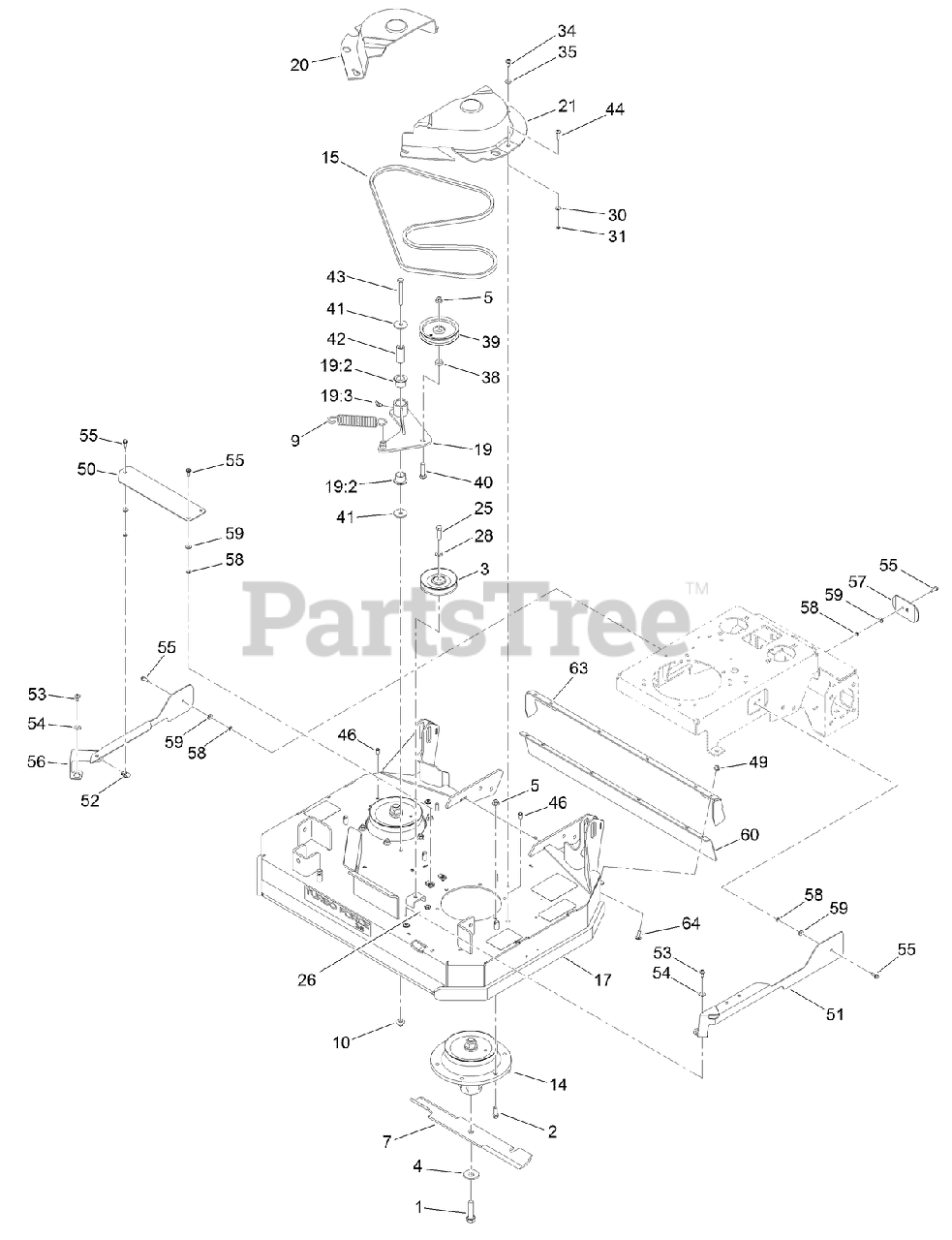

Deck Assembly Parts Diagram

  • Title

1

Toro 51-4060

SCREW-BLADE

$7.99

$

In Stock, Qty 14

0

2

Toro 92-1624

See Supercession: 95-1726
(Superseded to 95-1726)

$2.99

$

In Stock, Qty 20+

0

3

Toro 92-7099

PULLEY-IDLER

$69.99

$

In Stock, only 1 left!

0

4

Toro 103-0865

WASHER-BLADE BOLT, HEAVY

$5.99

$

In Stock, Qty 18

0

5

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

7

Toro 105-7781-03

BLADE-18IN, HI FLOW

$28.99

$

In Stock, Qty 13

0

9

Toro 119-0394

SPRING-EXTENSION

$32.99

$

In Stock, only 1 left!

0

10

Toro 109-6658

NUT-FLANGE, NI

$1.49

$

In Stock, Qty 20+

0

14

Toro 117-7638

SPINDLE ASM

$481.99

$

Usually ships in 3-6 days

0

15

Toro 134-3397

BELT-V

$76.99

$

Usually ships in 3-6 days

0

17

Toro 134-3657

DECK AND DECAL ASM

$2136.99

$

Usually ships in 3-6 days

0

19

Toro 119-0180

IDLER ARM ASM

$194.99

$

Usually ships in 3-6 days

0

19:2

Toro 33-3090

BUSHING

$9.49

$

Usually ships in 3-6 days

0

19:3

Toro 302-11

FITTING-LUBE, 45 DEG

$1.99

$

In Stock, only 2 left!

0

20

Toro 119-1802

COVER-BELT, RH

$115.99

$

Usually ships in 3-6 days

0

21

Toro 119-1803

COVER-BELT, LH

$115.99

$

Usually ships in 3-6 days

0

25

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

26

Toro 3296-59

See Supercession: 121-4600
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 17

0

28

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 19

0

30

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

31

Toro 106-8737

NUT-RETAINER
(Superseded to 32115-15)

$1.49

$

In Stock, Qty 20+

0

34

Toro 120-7950

SCREW-SHOULDER

$2.99

$

In Stock, Qty 7

0

35

Toro 73-0041

WASHER-THRUST

$1.99

$

In Stock, only 1 left!

0

38

Toro 5-0652

SPACER

$7.49

$

In Stock, Qty 5

0

39

Toro 93-1622

PULLEY-IDLER

$42.99

$

In Stock, only 3 left!

0

40

Toro 3231-5

SCREW-CARR

$1.49

$

In Stock, only 2 left!

0

41

Toro 1-213069

WASHER

$2.99

$

In Stock, only 2 left!

0

42

Toro 119-0208

SPACER-PLAIN

$18.99

$

Usually ships in 3-6 days

0

43

Toro 323-20

SCREW-HH

$3.49

$

In Stock, only 2 left!

0

44

Toro 32105-32

SCREW-TTH

$1.49

$

Usually ships in 3-6 days

0

46

Toro 32148-6

NUT-CLINCH

$1.99

$

Usually ships in 3-6 days

0

49

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

50

Toro 131-1506-01

GUARD-DECK, CENTER

$17.99

$

Usually ships in 3-6 days

0

51

Toro 131-1497-01

GUARD-DECK, LH

$84.99

$

Usually ships in 3-6 days

0

52

Toro 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

53

Toro 120-7950

SCREW-SHOULDER

$2.99

$

In Stock, Qty 7

0

54

Toro 73-0041

WASHER-THRUST

$1.99

$

In Stock, only 1 left!

0

55

Toro 32144-44

SCREW-HWH, THREAD ROLL

$1.49

$

In Stock, only 2 left!

0

56

Toro 131-1498-01

GUARD-DECK, RH

$84.99

$

Usually ships in 3-6 days

0

57

Toro 131-1495-01

GUARD-PLATE

$21.99

$

Usually ships in 3-6 days

0

58

Toro 106-8737

NUT-RETAINER
(Superseded to 32115-15)

$1.49

$

In Stock, Qty 20+

0

59

Toro 119-8952

WASHER

$0.99

$

In Stock, Qty 20+

0

60

Toro 134-2819

FLAP-REAR

$

$

Currently unavailable

63

Toro 134-3733-01

BRACKET-DEFLECTOR

$112.99

$

Usually ships in 3-6 days

0

64

Toro 3230-10

BOLT-CARR

$3.99

$

Usually ships in 3-6 days

0
