74538 - Toro 48" GrandStand Stand-On Mower (SN: 310000001 - 310999999) (2010) PLATFORM ASSEMBLY NO. 117-9640 Parts Diagram

48" GrandStand Stand-On Mower

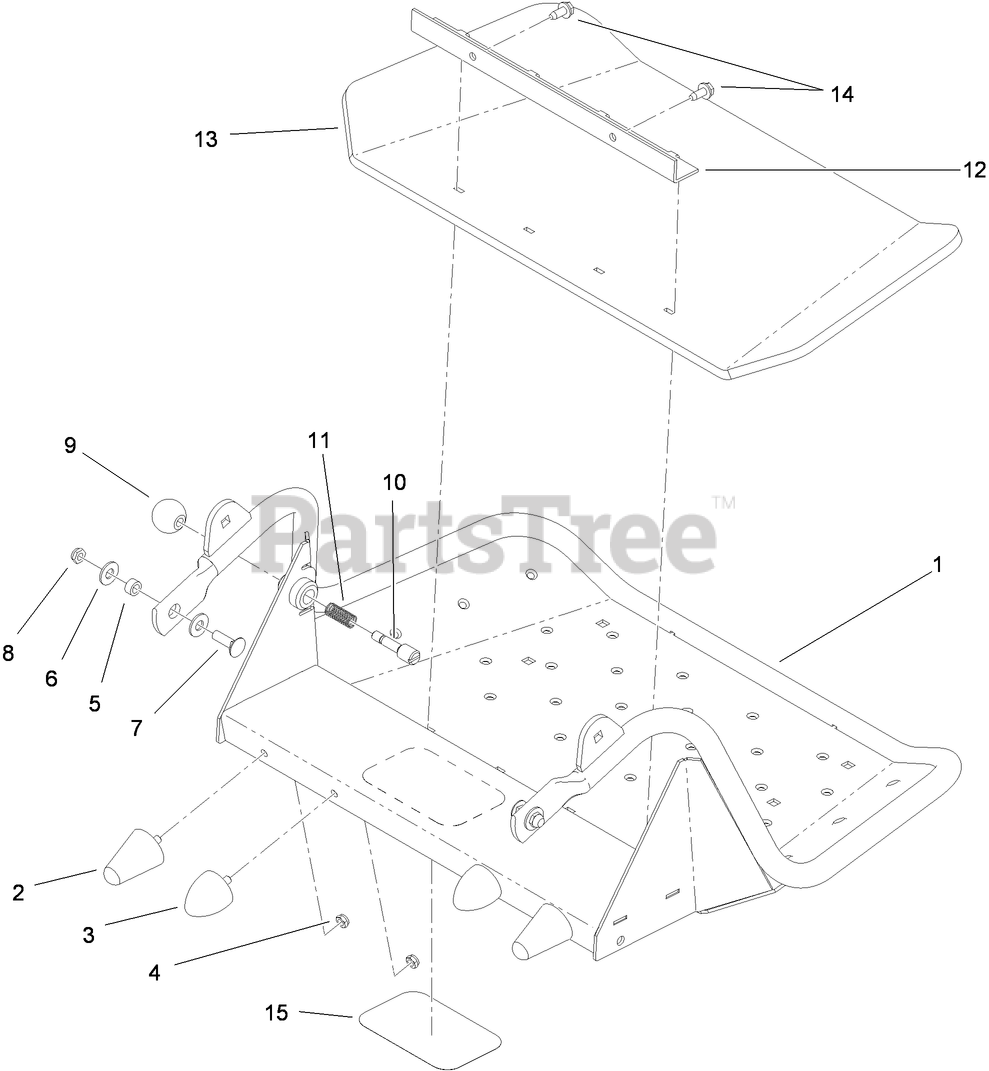

PLATFORM ASSEMBLY NO. 117-9640 Parts Diagram

  • Title

1

Toro 117-9641-01

PLATFORM

$677.99

$

Usually ships in 3-6 days

0

2

Toro 114-1925

BUMPER-RUBBER

$26.99

$

In Stock, only 1 left!

0

3

Toro 114-1926

BUMPER-RUBBER

$28.99

$

Usually ships in 3-6 days

0

4

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 10

0

5

Toro 111044

SPACER

$1.49

$

In Stock, Qty 20+

0

6

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

7

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 15

0

8

Toro 3296-59

NUT-LOCK, NI
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 17

0

9

Toro 1-603175

KNOB-BALL

$11.99

$

In Stock, Qty 7

0

10

Toro 114-5288

PIN-LATCH
(Superseded to 119-8650)

$20.99

$

In Stock, only 1 left!

0

11

Toro 114-5348

SPRING

$2.99

$

In Stock, Qty 20+

0

12

Toro 114-1920-03

CLAMP-SHIELD

$43.99

$

Usually ships in 3-6 days

0

13

Toro 114-5349

MAT-FOOT
(Superseded to 126-7157)

$110.99

$

In Stock, only 1 left!

0

14

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

15

Toro 68-3640

DECAL

$20.99

$

In Stock, only 2 left!

0
