74538 - Toro 48" GrandStand Stand-On Mower (SN: 310000001 - 310999999) (2010) GROUND DRIVE ASSEMBLY Parts Diagram

48" GrandStand Stand-On Mower

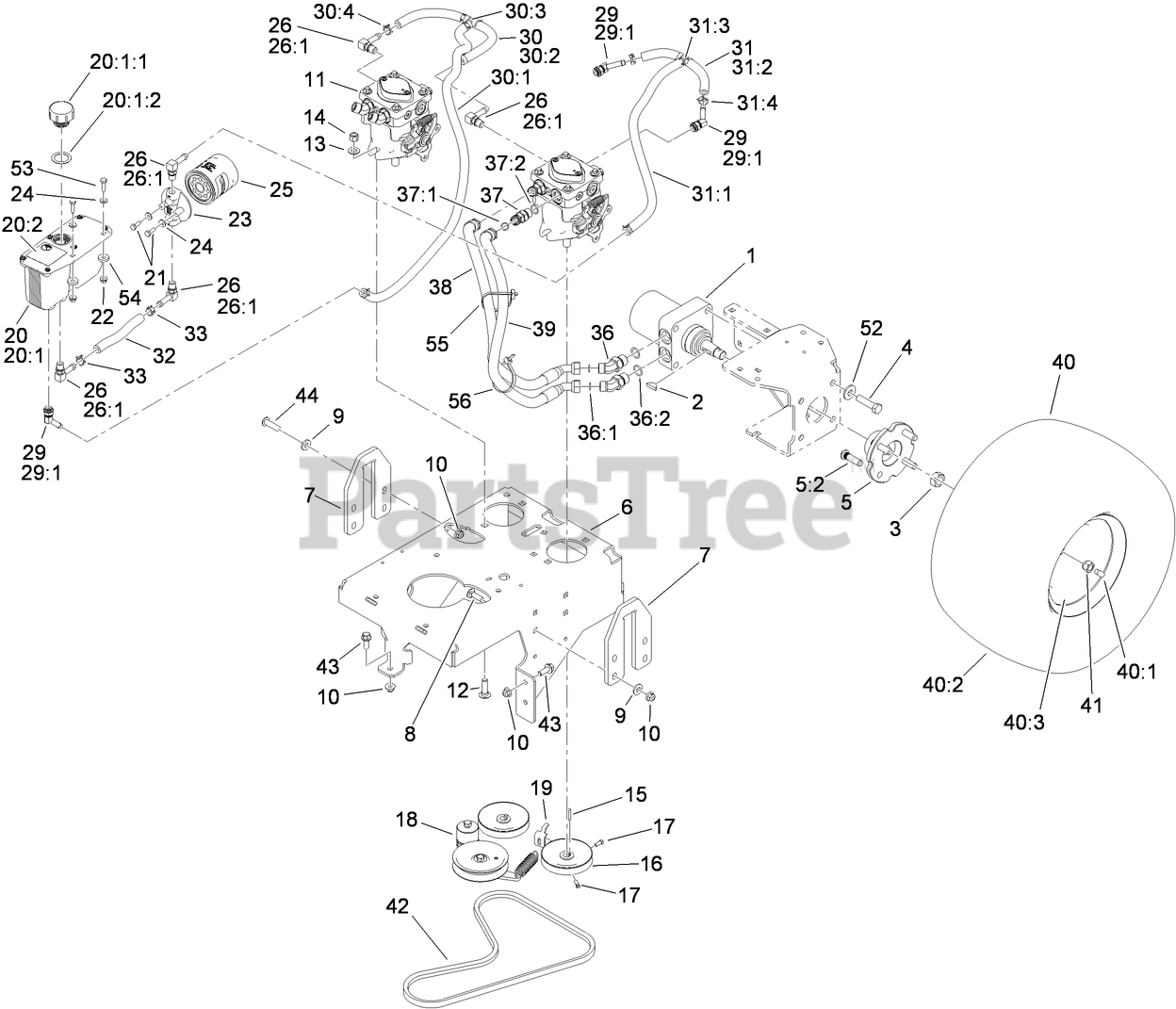

GROUND DRIVE ASSEMBLY Parts Diagram

  • Title

1

Toro 114-0549

HYD MOTOR ASM

$1371.99

$

In Stock, only 1 left!

0

2

Toro 3257-8

KEY-WOODRUFF

$5.49

$

In Stock, Qty 6

0

3

Toro 85-7310

NUT-MOTOR, WHEEL

$27.99

$

Usually ships in 3-6 days

0

4

Toro 325-8

SCREW-HH

$5.49

$

In Stock, Qty 5

0

5

Toro 105-0800

WHEEL HUB ASM

$248.99

$

In Stock, only 1 left!

0

5:2

Toro 10-6830

STUD-TYPE, DRIVE
(Superseded to 111512)

$

$

Not available

6

Toro 116-2660-01

BASE-ENGINE
(Superseded to 119-8710-01)

$

$

Not available

7

Toro 119-8662

PLATE-LIFT

$48.99

$

Usually ships in 3-6 days

0

8

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 20+

0

9

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

10

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

11

Toro 117-3597

HYD PUMP ASM

$1293.99

$

Usually ships in 3-6 days

0

12

Toro 3232-3

BOLT-CARR

$3.49

$

In Stock, Qty 5

0

13

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 10

0

14

Toro 3296-48

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

15

Toro 1-807272

KEY

$5.99

$

In Stock, Qty 11

0

16

Toro 105-5648

PULLEY-PUMP

$125.99

$

Usually ships in 3-6 days

0

17

Toro 3241-5

SCREW-SET

$2.49

$

Usually ships in 3-6 days

0

18

PUMP IDLER ASM

Note: Not serviced separately

$

$

Not available

19

Toro 117-0447-01

BRACKET-ANCHOR, SPRING

$27.99

$

Usually ships in 3-6 days

0

20

Toro 107-8433

HYD RESERVOIR ASM

$372.99

$

Usually ships in 3-6 days

0

20:1

Reservoir-HYD

Note: Not serviced separately

$

$

Not available

20:1:1

Toro 103-1948

CAP-RESERVOIR, HYD

$27.99

$

In Stock, Qty 5

0

20:1:2

Toro 103-1949

GASKET-CAP

$

$

Not available

20:2

Toro 115-4212

DECAL-WARNING

$11.99

$

Usually ships in 3-6 days

0

21

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

22

Toro 32128-32

NUT-HHF

$2.99

$

Usually ships in 3-6 days

0

23

Toro 104-7836

HEAD-FILTER

$18.99

$

In Stock, only 3 left!

0

24

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

25

Toro 114-3494

ELEMENT-FILTER, 25 MICRON

$17.99

$

In Stock, Qty 6

0

26

Toro 100-4887

FITTING-ELBOW, 90

$28.99

$

In Stock, only 1 left!

0

26:1

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 9

0

29

Toro 103-1807

FITTING-BARBED, 45 DEG

$27.99

$

Usually ships in 3-6 days

0

29:1

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 9

0

30

Toro 117-3570

TANK HOSE ASM

$86.99

$

Usually ships in 3-6 days

0

30:1

Toro 117-0461

HOSE-HYDRAULIC

$47.99

$

Usually ships in 3-6 days

0

30:2

Toro 117-0459

HOSE-HYDRAULIC

$6.99

$

Usually ships in 3-6 days

0

30:3

Toro 1-603721

FITTING-TEE, HOSE

$22.99

$

Usually ships in 3-6 days

0

30:4

Toro 103-1988

Clamp-Hose

$1.49

$

In Stock, Qty 20+

0

31

Toro 117-3569

FILTER HOSE ASM

$72.99

$

Usually ships in 3-6 days

0

31:1

Toro 117-0460

HOSE-HYDRAULIC

$29.99

$

Usually ships in 3-6 days

0

31:2

Toro 117-0458

HOSE-HYDRAULIC

$6.99

$

Usually ships in 3-6 days

0

31:3

Toro 1-603721

FITTING-TEE, HOSE

$22.99

$

Usually ships in 3-6 days

0

31:4

Toro 103-1988

Clamp-Hose

$1.49

$

In Stock, Qty 20+

0

32

Toro 117-0459

HOSE-HYDRAULIC

$6.99

$

Usually ships in 3-6 days

0

33

Toro 103-1988

Clamp-Hose

$1.49

$

In Stock, Qty 20+

0

36

Toro 340-89

FITTING-HYD, 45 DEG

$43.99

$

Usually ships in 3-6 days

0

36:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 20+

0

36:2

Toro 237-80

O-RING

$6.49

$

In Stock, Qty 9

0

37

Toro 340-101

FITTING-HYD, 45 DEG

$35.99

$

Usually ships in 3-6 days

0

37:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 20+

0

37:2

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 13

0

38

Toro 117-0442

HYD HOSE ASM
(Superseded to 120-6491)

$164.99

$

In Stock, only 1 left!

0

39

Toro 117-0449

HYD HOSE ASM
(Superseded to 120-6492)

$164.99

$

Usually ships in 3-6 days

0

40

Toro 117-0429

WHEEL ASM

$414.99

$

Usually ships in 3-6 days

0

40:1

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$6.99

$

In Stock, Qty 17

0

40:2

Toro 117-0428

TIRE

$286.99

$

Usually ships in 3-6 days

0

40:3

Toro 106-8133

RIM-8 INCH

$

$

Not available

41

Toro 242-50

NUT-LUG

$1.99

$

In Stock, Qty 20+

0

42

Toro 114567

BELT-V, LOWER PTO

$30.99

$

In Stock, Qty 11

0

43

Toro 3234-42

SCREW-HHF

$3.49

$

In Stock, Qty 20+

0

44

Toro 3274-63

SCREW-HSBH

$4.99

$

In Stock, only 1 left!

0

52

Toro 1-513435

WASHER-SPRING

$5.49

$

In Stock, Qty 13

0

53

Toro 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

54

Toro 104-7658

SPACER

$1.49

$

In Stock, only 2 left!

0

55

Toro 1-643115

TIE-PLASTIC

$2.99

$

Usually ships in 3-6 days

0

56

Toro 103-2446

TIE-CABLE

$2.99

$

Usually ships in 3-6 days
