74536 - Toro 40" GrandStand Stand-On Mower (SN: 312000001 - 312999999) (2012) TRACTION DRIVE ASSEMBLY Parts Diagram

40" GrandStand Stand-On Mower

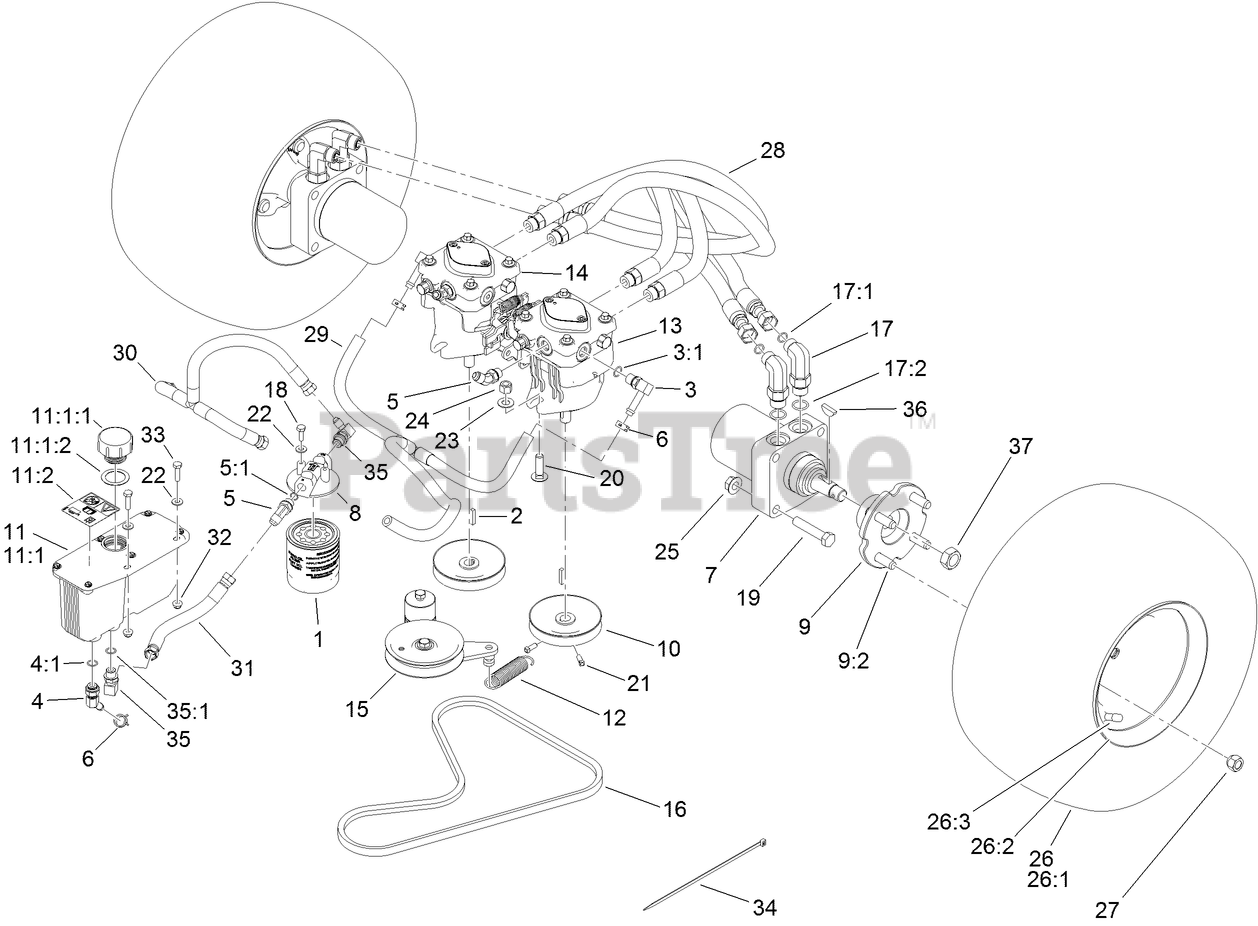

TRACTION DRIVE ASSEMBLY Parts Diagram

  • Title

1

Toro 114-3494

ELEMENT-FILTER, 25 MICRON

$18.99

$

In Stock, Qty 11

0

2

Toro 1-807272

KEY

$6.49

$

In Stock, Qty 7

0

3

Toro 100-4887

FITTING-ELBOW, 90

$31.99

$

In Stock, only 1 left!

0

3:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 19

0

4

Toro 103-1807

FITTING-BARBED, 45 DEG

$29.99

$

Usually ships in 3-6 days

0

4:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 19

0

5

Toro 353-212

FITTING-ELBOW, 45 DEG

$28.99

$

Usually ships in 3-6 days

0

5:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 19

0

6

Toro 103-1988

Clamp-Hose

$1.49

$

In Stock, Qty 20+

0

7

Toro 104-1171

HYD MOTOR ASM

$1338.99

$

Usually ships in 3-6 days

0

8

Toro 104-7836

HEAD-FILTER

$19.99

$

In Stock, only 3 left!

0

9

Toro 105-0800

WHEEL HUB ASM

$263.99

$

In Stock, only 1 left!

0

9:2

Toro 10-6830

STUD-TYPE, DRIVE
(Superseded to 111512)

$

$

Not available

10

Toro 105-5648

PULLEY-PUMP

$133.99

$

Usually ships in 3-6 days

0

11

Toro 107-8433

HYD RESERVOIR ASM

$406.99

$

Usually ships in 3-6 days

0

11:1

Reservoir-HYD

Note: Not serviced separately

$

$

Not available

11:1:1

Toro 103-1948

CAP-RESERVOIR, HYD

$35.99

$

In Stock, Qty 6

0

11:1:2

Toro 103-1949

GASKET-CAP

$

$

Not available

11:2

Toro 115-4212

DECAL-WARNING

$13.99

$

Usually ships in 3-6 days

0

12

Toro 108-4056

SPRING-EXTENSION

$8.99

$

In Stock, Qty 20+

0

13

Toro 119-0176

HYDRAULIC PUMP ASM

$1247.99

$

Usually ships in 3-6 days

0

14

Toro 119-0177

HYDRAULIC PUMP ASM

$1247.99

$

Usually ships in 3-6 days

0

15

Toro 117-7685

PUMP IDLER ASM

$237.99

$

Usually ships in 3-6 days

0

16

Toro 119-0174

BELT-V

$46.99

$

In Stock, only 2 left!

0

17

Toro 119-8680

FITTING-ELBOW, 90

$36.99

$

In Stock, only 2 left!

0

17:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 6

0

17:2

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 20+

0

18

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

19

Toro 325-10

SCREW-HH

$5.99

$

In Stock, only 3 left!

0

20

Toro 3232-3

BOLT-CARR

$3.99

$

In Stock, Qty 5

0

21

Toro 3241-5

SCREW-SET

$2.49

$

In Stock, only 2 left!

0

22

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

23

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

24

Toro 3296-48

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

25

Toro 32128-23

NUT-HF

$2.49

$

In Stock, Qty 14

0

26

Toro 120-6450

WHEEL/TIRE ASM
(Superseded to 130-4560)

$292.99

$

Usually ships in 3-6 days

0

26:1

Toro 116-4605

RIM-8 INCH

$115.99

$

Usually ships in 3-6 days

0

26:2

Toro 120-6451

TIRE

$164.99

$

In Stock, only 1 left!

0

26:3

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$7.49

$

In Stock, Qty 7

0

27

Toro 242-50

NUT-LUG
(Superseded to 139-2564)

$1.49

$

In Stock, only 1 left!

0

28

Toro 119-0173

HYD HOSE ASM

$119.99

$

In Stock, only 1 left!

0

29

Toro 119-8745

HYD HOSE ASM

$68.99

$

In Stock, only 1 left!

0

30

Toro 119-0206

HYD HOSE ASM

$77.99

$

Usually ships in 3-6 days

0

31

Toro 119-0203

HYD HOSE ASM

$29.99

$

Usually ships in 3-6 days

0

32

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

33

Toro 321-6

SCREW-HH

$0.99

$

In Stock, Qty 10

0

34

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 7

0

35

Toro 103-1802

FITTING-ELBOW, 90 DEG

$25.99

$

In Stock, only 3 left!

0

35:1

Toro 1-603921

O-Ring
(Superseded to 237-42)

$3.49

$

In Stock, Qty 19

0

36

Toro 3257-8

KEY-WOODRUFF

$5.99

$

In Stock, Qty 5

0

37

Toro 85-7310

NUT-MOTOR, WHEEL

$28.99

$

Usually ships in 3-6 days

0
