74536 - Toro 40" GrandStand Stand-On Mower (SN: 310000001 - 310999999) (2010) FUEL TANK ASSEMBLY Parts Diagram

40" GrandStand Stand-On Mower

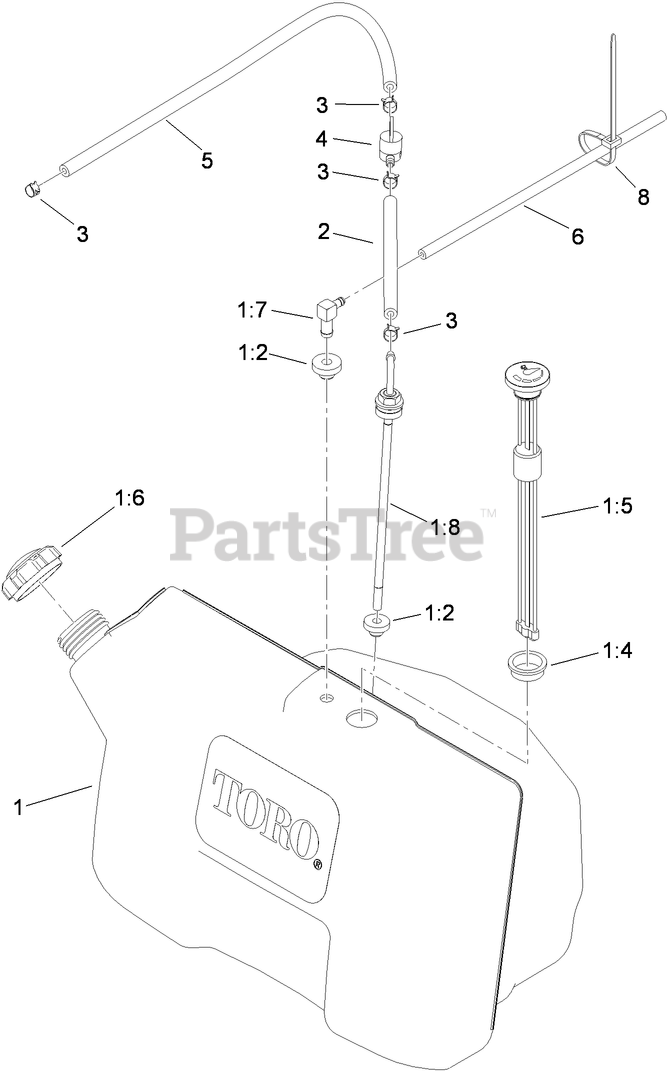

FUEL TANK ASSEMBLY Parts Diagram

  • Title

1

Toro 119-7295

TANK ASM
(Superseded to 120-6420)

$

$

Not available

1:2

Toro 46-6560

BUSHING

$5.99

$

In Stock, Qty 12

0

1:4

Toro 95-8972

GROMMET

$11.99

$

In Stock, only 1 left!

0

1:5

Toro 117-9719

GUAGE-FUEL

$175.99

$

Usually ships in 3-6 days

0

1:6

Toro 109-9619

CAP-FUEL

$68.99

$

Usually ships in 3-6 days

0

1:7

Toro 1-643172

ELBOW-90 DEG

$11.99

$

In Stock, only 2 left!

0

1:8

Toro 116-3408

FITTING-FUEL, BULKHEAD

$45.99

$

Usually ships in 3-6 days

0

2

Toro 119-1892

HOSE-FUEL

$11.99

$

In Stock, only 1 left!

0

3

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

4

Toro 1-603770

VALVE-FUEL

$8.49

$

In Stock, Qty 7

0

5

Toro 110-7501

HOSE-FUEL

$

$

Not available

6

Toro 110-3372

HOSE-FUEL

$37.99

$

Usually ships in 3-6 days

0

8

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0
