74536 - Toro 40" GrandStand Stand-On Mower (SN: 310000001 - 310999999) (2010) DECK ASSEMBLY Parts Diagram

40" GrandStand Stand-On Mower

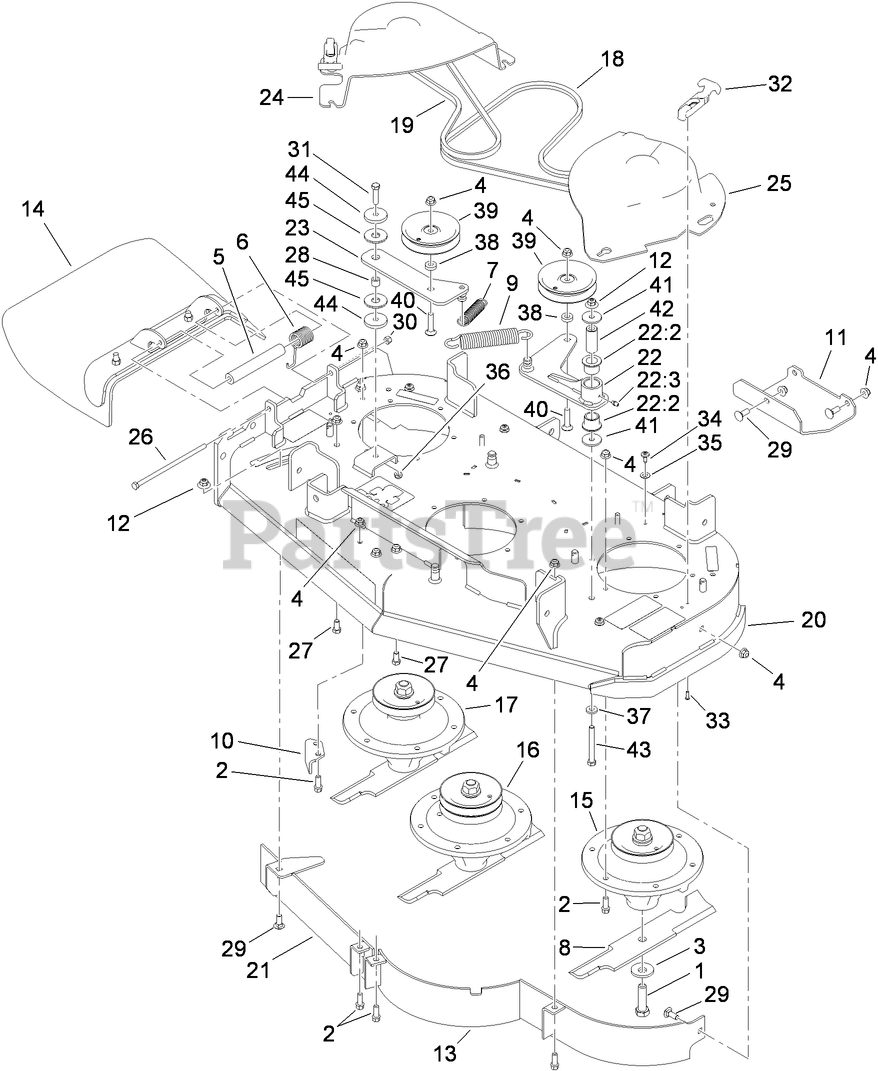

DECK ASSEMBLY Parts Diagram

  • Title

1

Toro 51-4060

SCREW-BLADE

$7.99

$

In Stock, Qty 14

0

2

Toro 92-1624

SCREW-HWH
(Superseded to 95-1726)

$2.99

$

In Stock, Qty 20+

0

3

Toro 103-0865

Washer-Blade Bolt, Heavy

$5.99

$

In Stock, Qty 18

0

4

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

5

Toro 105-4622

SPACER

$10.99

$

In Stock, only 3 left!

0

6

Toro 108-4052

SPRING-TORSION

$25.99

$

In Stock, only 1 left!

0

7

Toro 108-4056

SPRING-EXTENSION

$8.49

$

In Stock, Qty 18

0

8

Toro 108-4081-03

BLADE-14 INCH (HIGH SAIL)

$34.99

$

In Stock, only 3 left!

0

9

Toro 119-0394

SPRING-EXTENSION

$32.99

$

In Stock, only 1 left!

0

10

Toro 108-7273-01

BAFFLE-DISCHARGE

$34.99

$

Usually ships in 3-6 days

0

11

Toro 108-7282-01

PLATE-SKID

$66.99

$

Usually ships in 3-6 days

0

12

Toro 109-6658

NUT-FLANGE, NI

$1.49

$

In Stock, Qty 20+

0

13

Toro 110-6910-03

BAFFLE ASM

$253.99

$

Usually ships in 3-6 days

0

14

Toro 119-2347

DEFLECTOR ASM

$271.99

$

Usually ships in 3-6 days

0

15

Toro 117-7635

SPINDLE ASM

$481.99

$

Usually ships in 3-6 days

0

16

Toro 117-7636

SPINDLE ASM

$481.99

$

Usually ships in 3-6 days

0

17

Toro 117-7640

SPINDLE ASM

$481.99

$

Usually ships in 3-6 days

0

18

Toro 117-7648

BELT-V

$64.99

$

In Stock, only 1 left!

0

19

Toro 117-7649

BELT-V

$38.99

$

In Stock, only 1 left!

0

20

Toro 119-0161

DECK ASM

$3259.99

$

Usually ships in 3-6 days

0

21

Toro 119-0163-03

FRONT BAFFLE ASM

$129.99

$

Usually ships in 3-6 days

0

22

Toro 119-0178

IDLER ARM ASM

$194.99

$

Usually ships in 3-6 days

0

22:2

Toro 33-3090

BUSHING

$9.49

$

Usually ships in 3-6 days

0

22:3

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

23

Toro 119-0171

IDLER ARM ASM

$74.99

$

Usually ships in 3-6 days

0

24

Toro 119-1804

COVER-BELT, RH
(Superseded to 121-6029)

$115.99

$

Usually ships in 3-6 days

0

25

Toro 119-1805

COVER-BELT, LH
(Superseded to 121-6028)

$115.99

$

Usually ships in 3-6 days

0

26

Toro 322-50

SCREW-HH

$6.49

$

In Stock, only 4 left!

0

27

Toro 323-4

SCREW-HH

$3.99

$

In Stock, only 1 left!

0

28

Toro 1-413088

BUSHING-LEVER, LIFT

$10.99

$

In Stock, only 1 left!

0

29

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 12

0

30

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

31

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

32

Toro 103-4080

LATCH-RUBBER

$31.99

$

In Stock, Qty 5

0

33

Toro 3274-39

SCREW-HSBH

$5.99

$

In Stock, only 3 left!

0

34

Toro 112-4004

SCREW-SHOULDER
(Superseded to 120-7950)

$2.99

$

In Stock, Qty 7

0

35

Toro 73-0041

WASHER-THRUST

$1.99

$

In Stock, only 1 left!

0

36

Toro 3296-59

NUT-LOCK, NI
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 17

0

37

Toro 71-9310

SPACER

$2.99

$

Usually ships in 3-6 days

0

38

Toro 5-0652

SPACER

$7.49

$

In Stock, Qty 5

0

39

Toro 93-1622

PULLEY-IDLER

$42.99

$

In Stock, only 3 left!

0

40

Toro 3231-5

SCREW-CARR

$1.49

$

In Stock, only 2 left!

0

41

Toro 1-213069

WASHER

$2.99

$

In Stock, only 2 left!

0

42

Toro 119-0208

SPACER-PLAIN

$18.99

$

Usually ships in 3-6 days

0

43

Toro 323-20

SCREW-HH

$3.49

$

In Stock, only 2 left!

0

44

Toro 110-9981

WASHER-PLAIN

$14.99

$

In Stock, only 2 left!

0

45

Toro 114-0463

WASHER-FRICTION, COMPOSITE

$5.49

$

In Stock, Qty 11

0
