74536 TE - Toro 102cm GrandStand Stand-On Mower (SN: 312000001 - 312999999) (2012) FUEL TANK ASSEMBLY Parts Diagram

102cm GrandStand Stand-On Mower

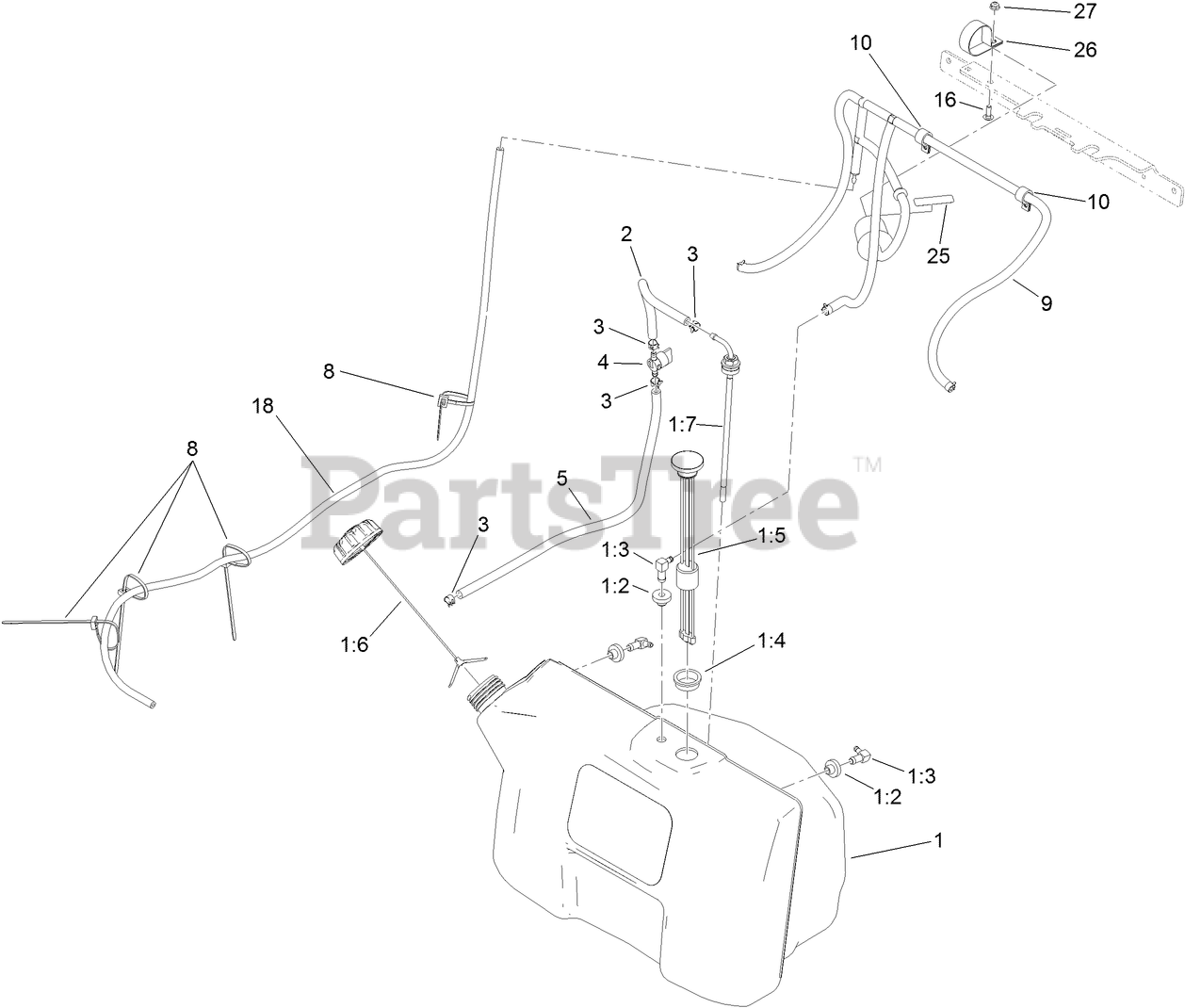

FUEL TANK ASSEMBLY Parts Diagram

  • Title

1

Toro 119-7340

TANK ASM

$506.99

$

Usually ships in 3-6 days

0

1:2

Toro 46-6560

BUSHING

$5.99

$

In Stock, Qty 20+

0

1:3

Toro 1-643172

ELBOW-90 DEG

$11.99

$

In Stock, only 2 left!

0

1:4

Toro 95-8972

GROMMET

$11.99

$

In Stock, only 1 left!

0

1:5

Toro 117-9719

GUAGE-FUEL

$170.99

$

Usually ships in 3-6 days

0

1:6

Toro 116-1704

CAP-FUEL, RATCHETING
(Superseded to 126-1789)

$36.99

$

In Stock, only 2 left!

0

1:7

Toro 116-3408

FITTING-FUEL, BULKHEAD

$44.99

$

Usually ships in 3-6 days

0

2

Toro 109-0297

HOSE-FUEL

$7.99

$

In Stock, only 1 left!

0

3

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

4

Toro 1-603770

VALVE-FUEL

$7.99

$

In Stock, Qty 8

0

5

Toro 109-0301

HOSE-FUEL

$13.99

$

Usually ships in 3-6 days

0

8

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

9

VENT HOSE ASM

Note: Not serviced separately

$

$

Not available

10

Toro 2412-87

CLAMP-CABLE

$3.49

$

Usually ships in 3-6 days

0

16

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

18

Toro 119-6073

HOSE-FUEL

$32.99

$

Usually ships in 3-6 days

0

25

Toro 116-4769

DECAL-FILTER, EMISSIONS

$2.99

$

In Stock, only 3 left!

0

26

Toro 2412-96

CLAMP-R

$4.49

$

Usually ships in 3-6 days

0

27

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0
