74535 - Toro 36" GrandStand HDM Stand-On Mower (SN: 417200000 - 999999999) Frame Assembly Parts Diagram

36" GrandStand HDM Stand-On Mower

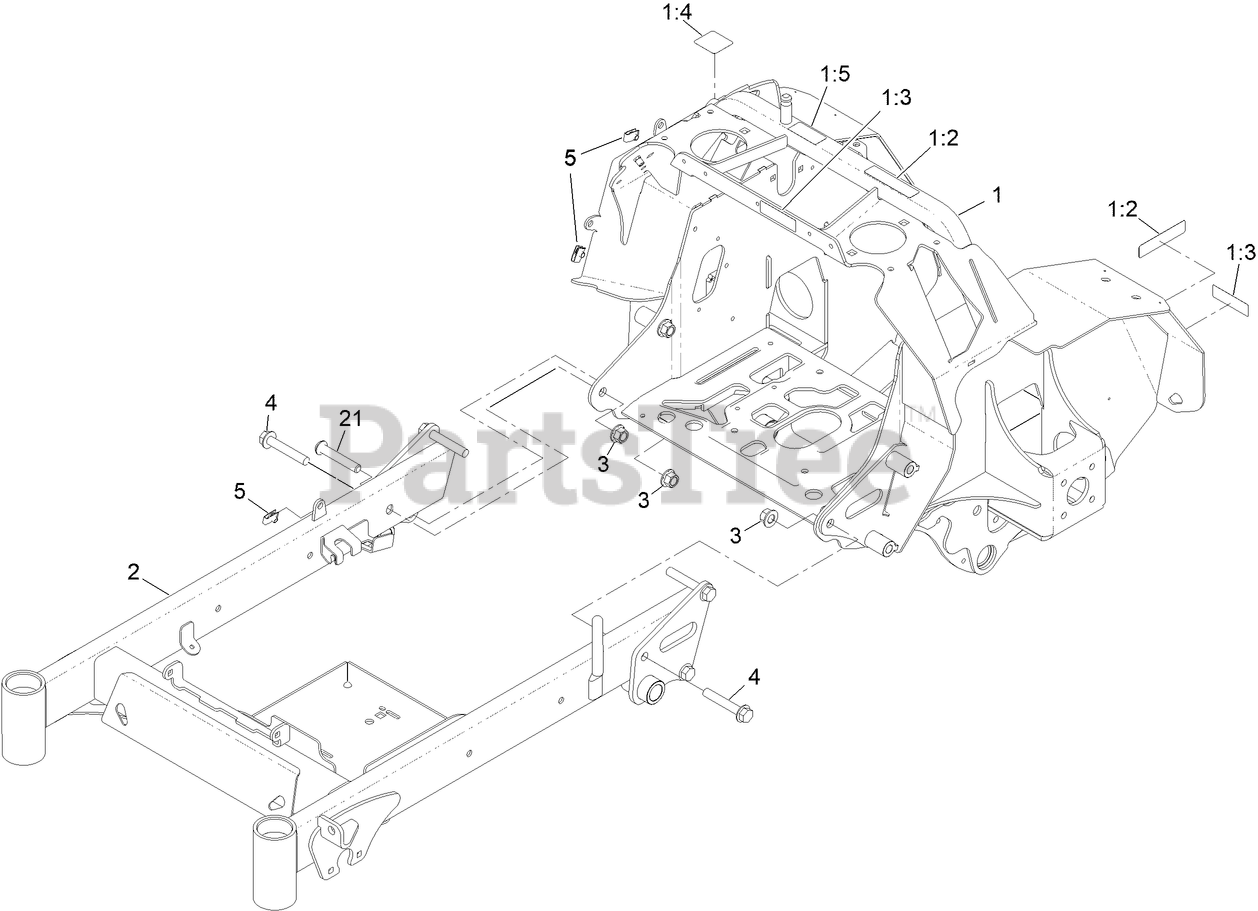

Frame Assembly Parts Diagram

  • Title

1

Toro 146-2773

ASM, REAR FRAME W/ DECALS

$

$

Currently unavailable

1:2

Toro 98-1977

DECAL-WARNING

$11.99

$

Usually ships in 3-6 days

0

1:3

Toro 116-8559

DECAL, COVER MISSING

$

$

Currently unavailable

1:4

Toro 116-5988

DECAL-PARK BRAKE, CE

$14.99

$

Usually ships in 3-6 days

0

1:5

Toro 135-2267

DECAL-BELT ROUTING HYD

$

$

Currently unavailable

2

Toro 146-5200

ASM-FRONT FRAME W/DECAL

$

$

Currently unavailable

3

Toro 99-5107

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

4

Toro 3234-40

SCREW-HF

$13.99

$

Usually ships in 3-6 days

0

5

Toro 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

21

Toro 142-3783

SCREW, HSBH

$

$

Currently unavailable
