74534 - Toro 36" GrandStand Stand-On Mower (SN: 417169275 - 999999999) Electrical Assembly Parts Diagram

36" GrandStand Stand-On Mower

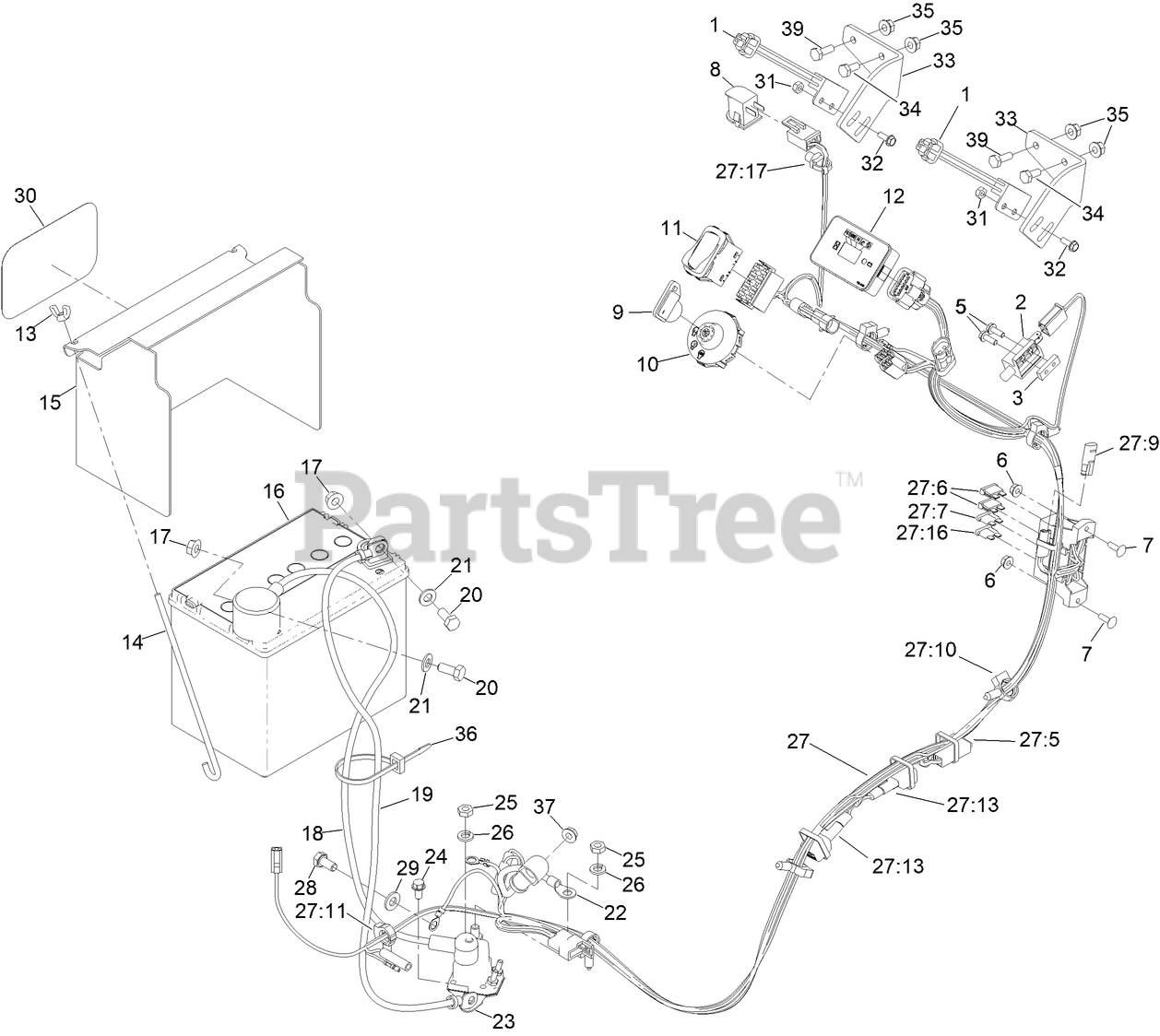

Electrical Assembly Parts Diagram

  • Title

1

Toro 105-0023

SWITCH-PROXIMITY

$143.99

$

In Stock, only 1 left!

0

2

Toro 1-513152

SWITCH-CLOSED, NORMALLY

$13.99

$

In Stock, Qty 11

0

3

Toro 1-633181

PLATE-TAPPED

$6.49

$

In Stock, Qty 11

0

5

Toro 32105-2

SCREW-SHWH

$3.99

$

Usually ships in 3-6 days

0

6

Toro 32128-17

NUT-LOCK, FLANGE

$0.99

$

In Stock, Qty 15

0

7

Toro 1-807533

BOLT-CARR

$1.49

$

In Stock, Qty 6

0

8

Toro 82-2190

SWITCH-BAIL

$14.99

$

In Stock, Qty 20+

0

9

Toro 63-8360

KEY-IGNITION

$5.99

$

In Stock, Qty 20+

0

10

Toro 137-4101

SWITCH-IGNITION

$34.99

$

In Stock, Qty 20+

0

11

Toro 139-6367

SWITCH-ROCKER, (ON)-ON-OFF

$35.99

$

In Stock, Qty 5

0

12

Toro 117-3886

MODULE-HOUR METER

$215.99

$

In Stock, only 1 left!

0

13

Toro 1-543792

WINGNUT

$6.49

$

In Stock, only 2 left!

0

14

Toro 1-633651

BOLT-HOLDDOWN

$7.99

$

In Stock, Qty 8

0

15

Toro 117-0543-01

COVER-BATTERY

$98.99

$

Usually ships in 3-6 days

0

16

Toro 104-8162

BATTERY-DRY

$

$

Not available

17

Toro 109-5715

NUT-HHF, SMOOTH

$1.49

$

Usually ships in 3-6 days

0

18

Toro 120-6442

CABLE-BATTERY, POSITIVE

$33.99

$

Usually ships in 3-6 days

0

19

Toro 103-0705

CABLE-GROUND, NEGATIVE

$19.99

$

In Stock, only 2 left!

0

20

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

21

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

22

Toro 106-8268

CABLE-BATTERY, RED

$37.99

$

Usually ships in 3-6 days

0

23

Toro 117-1197

SOLENOID

$45.99

$

In Stock, Qty 20+

0

24

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

25

Toro 3220-2

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

26

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

27

Toro 144-1451

HARNESS-WIRE, MAIN

$

$

Currently unavailable

27:5

Toro 109103

FUSE-BLADE, 30 AMP

$6.99

$

In Stock, Qty 5

0

27:6

Toro 109355

FUSE-BLADE, 15 AMP

$3.99

$

In Stock, Qty 12

0

27:7

Toro 218-578

FUSE-BLADE, 10 AMP

$2.99

$

In Stock, Qty 6

0

27:9

Toro 116-0053

CAP-PLUG

$39.99

$

Usually ships in 3-6 days

0

27:10

Toro 32180-047

CLIP-TUBING, HARNESS

$

$

Currently unavailable

27:11

Toro 32180-037

CLIP-HARNESS

$1.99

$

In Stock, Qty 6

0

27:13

Toro 103-3895

DIODE

$64.99

$

In Stock, only 4 left!

0

27:16

Toro 110928

FUSE-BLADE, 5 AMP

$8.49

$

Usually ships in 3-6 days

0

27:17

Toro 32180-030

CLIP-TIE

$5.49

$

In Stock, Qty 7

0

28

Toro 33114-016

SCREW-HH

$0.99

$

In Stock, only 4 left!

0

29

Toro 33094-00

WASHER-PLAIN

$0.99

$

In Stock, only 2 left!

0

30

Toro 67-1300

DECAL

$31.99

$

In Stock, only 1 left!

0

31

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

32

Toro 32105-23

SCREW

$1.49

$

In Stock, Qty 5

0

33

Toro 119-8503-01

BRACKET-MOUNT, SWITCH

$18.99

$

Usually ships in 3-6 days

0

34

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

35

Toro 32128-32

NUT-HHF

$2.99

$

In Stock, Qty 18

0

36

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 7

0

37

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

39

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+
